Rheem  |  SKU: 51-102728-10

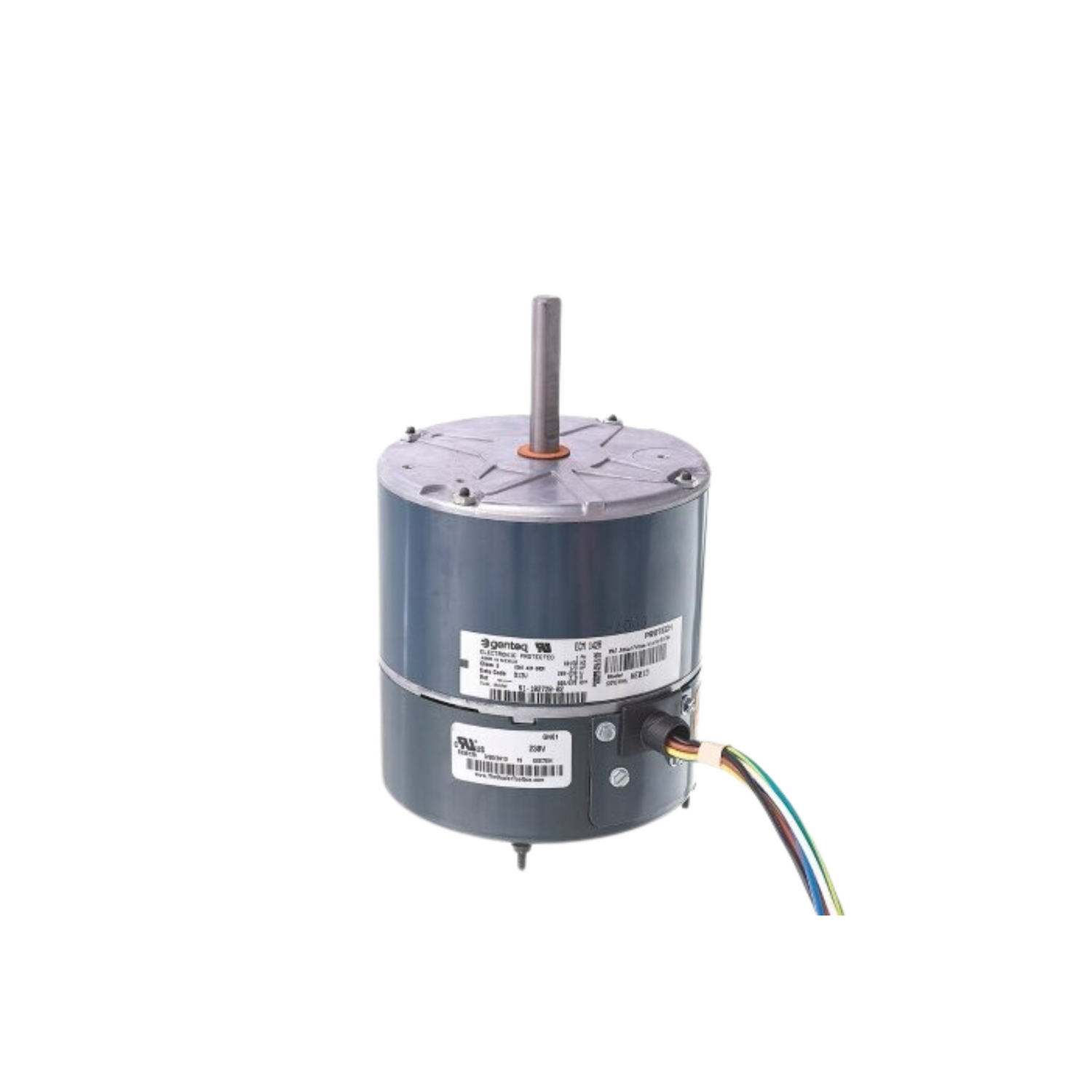

Rheem 51-102728-10 1/3 HP 1 Phase, Variable Speed ECM Outdoor Condenser Motor

$830.97

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

The ECM Outdoor Motor maintains its high efficiency across a range of operating speeds, which results in a significant reduction in energy use when the motor is run at reduced speeds. This makes the ECM Motor ideal for use in creating two-stage outdoor compressors and heat pump-type units. In addition to reducing electrical use, two-stage compressors feature enhanced humidity removal, less temperature swing between cycles, more even temperatures throughout the home, and quieter equipment operation.

Specifications:

Manufacturer: Rheem
Manufacturer Part Number: 51-102728-10
Product Type: ECM Outdoor Condenser Motor
Bearing Type: Ball
Drive Type: Direct Drive
FLA at 208V: 2.80 A
FLA at 230V: 2.80 A
Frame Size: 39
Frequency: 50, 60 Hz
HP: 1/3
Input Voltage: 208, 230 V
Keyed/Flat Shaft Length: 2 1/4"
Motor Body Diameter: 5 5/8"
Motor Body Length: 6"
Motor Type: ECM - Not Programmable
Mounting: Shell-band, Thru-bolt
No. of Phases: 1
No. of Speeds: Variable
Overall Motor Length: 9 1/16"
Overall Shaft Length: 2 5/8"
Rotation Direction: CCW
Shaft Diameter: 1/2"
Dimensions: 14.65" x 6.85" x 7.2"
Weight: 12.23 lb.
