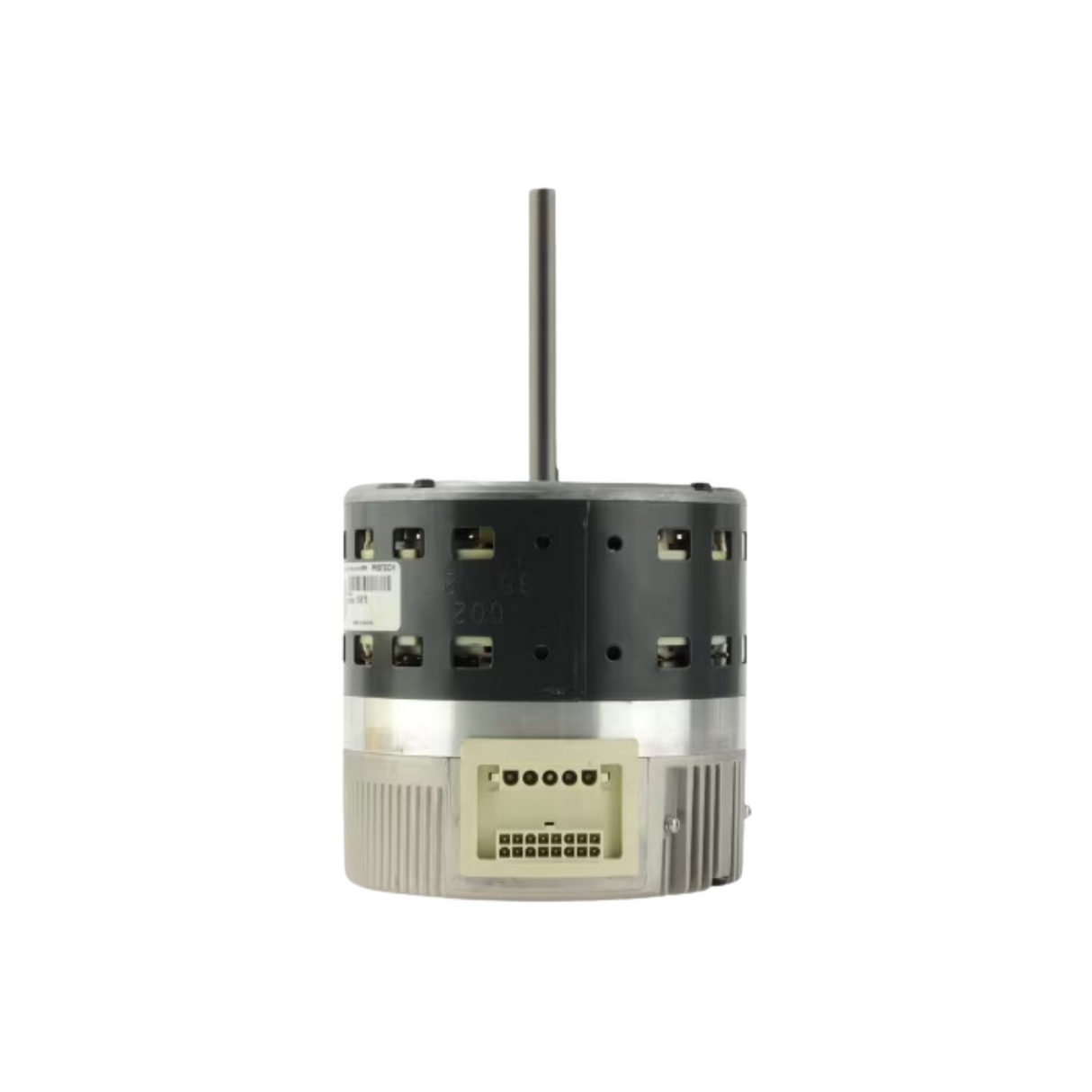

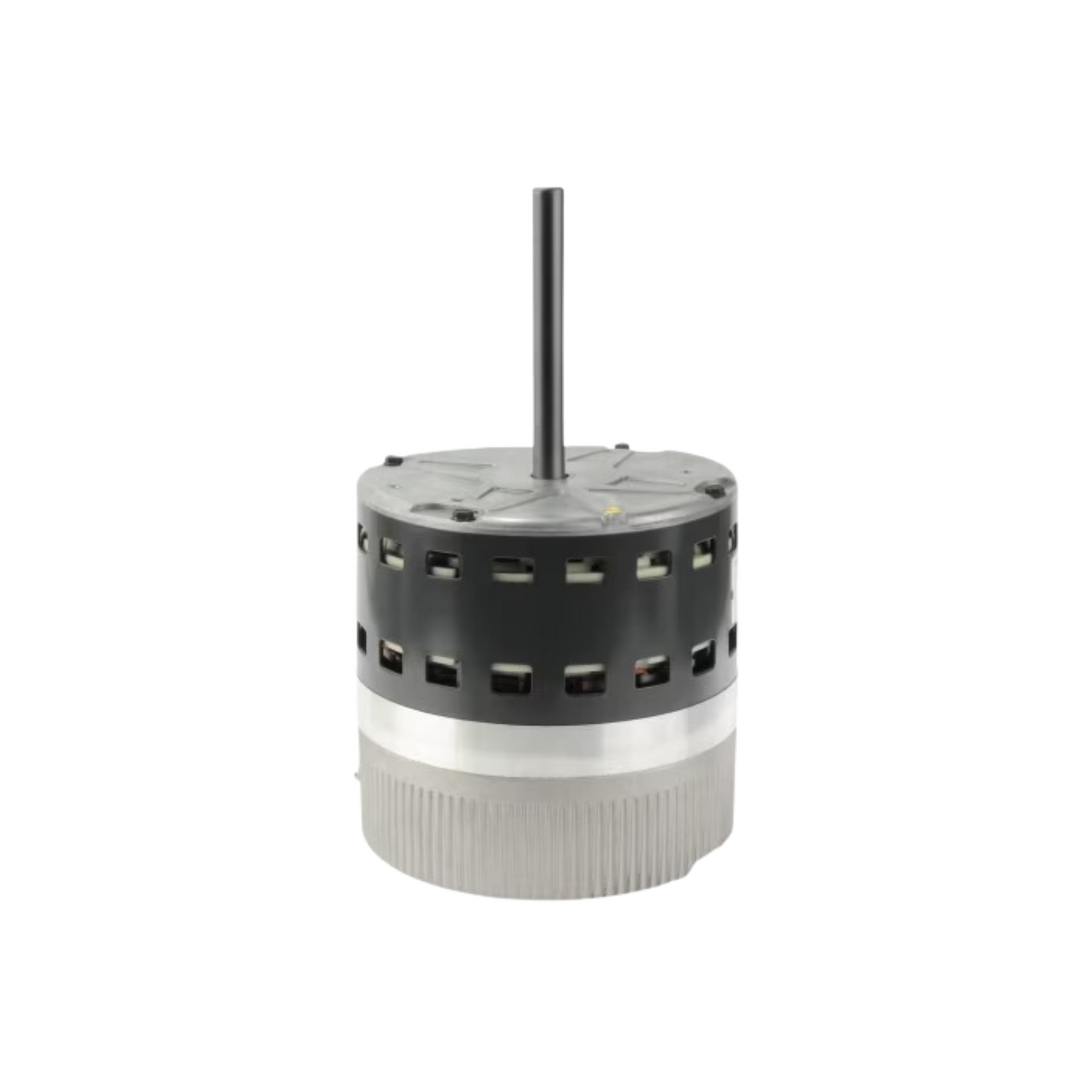

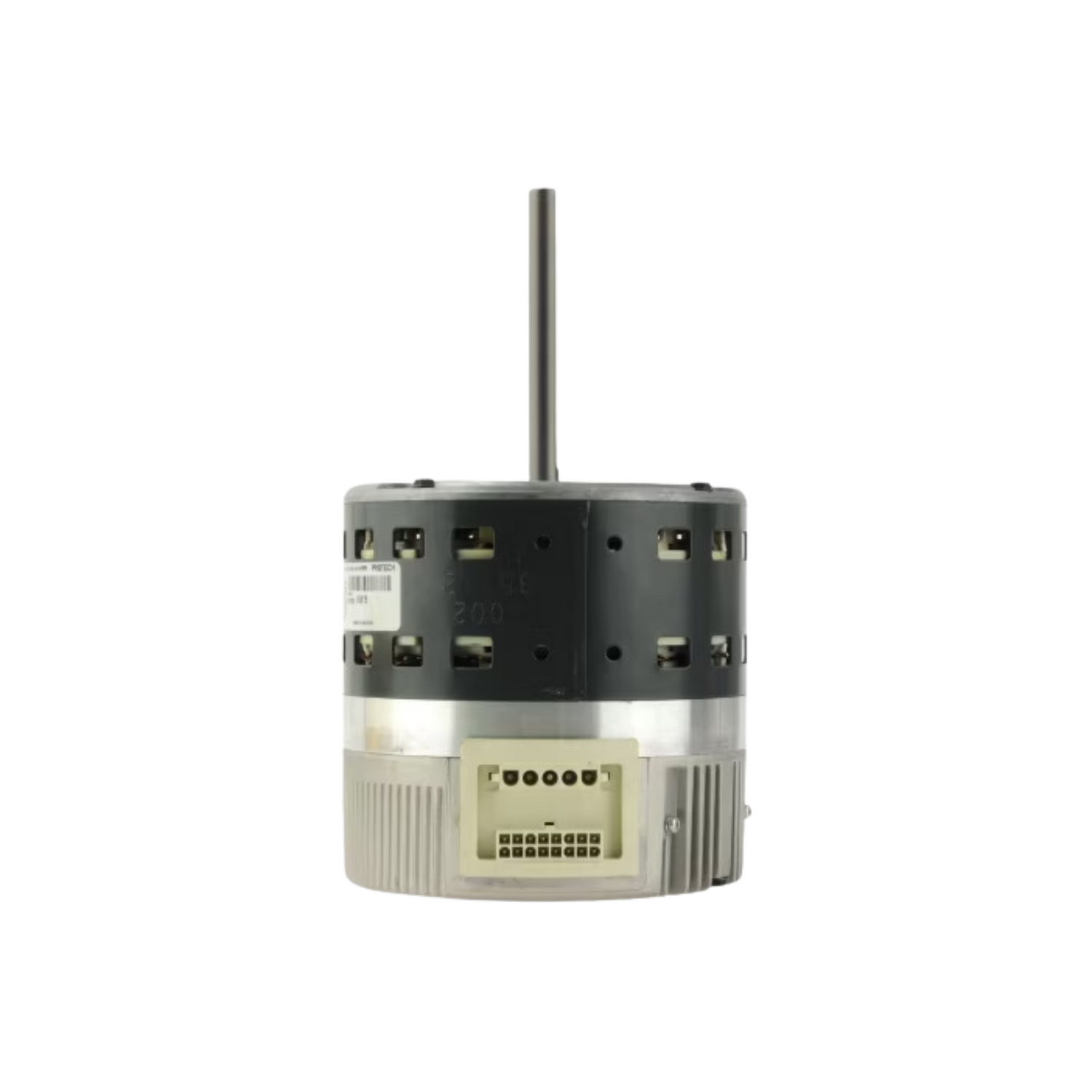

Rheem 51-104306-26 1 HP 1 Phase, Variable Speed Blower Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
The ECM Eon Blower Motor is commonly used in applications in residential HVAC furnaces and air handlers, commercial variable air volume systems, and fan filter units. Eon is a lighter, more compact variable speed ECM that is backward compatible with the existing ECM 2.3 motor and fits easily into existing systems.
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 51-104306-26
Product Type: Blower Motor
Bearing Type: Ball
Drive Type: Direct Drive
Frame Size: 48
Frequency: 50, 60 Hz
HP: 1
Input Voltage: 120, 230 V
Keyed/Flat Shaft Length: 4"
Motor Body Diameter: 5 5/8"
Motor Body Length: 7 1/4"
Motor Type: ECM (Eon)
Mounting: Shell-band
No. of Phases: 1
No. of Speeds: Variable
Overall Motor Length: 11 13/16"
Overall Shaft Length: 4 1/2"
Shaft Diameter: 1/2"
Programming Kit: PD510011
Dimensions: 29.8" x 10.85" x 6.6"
Weight: 17.14 lb.
