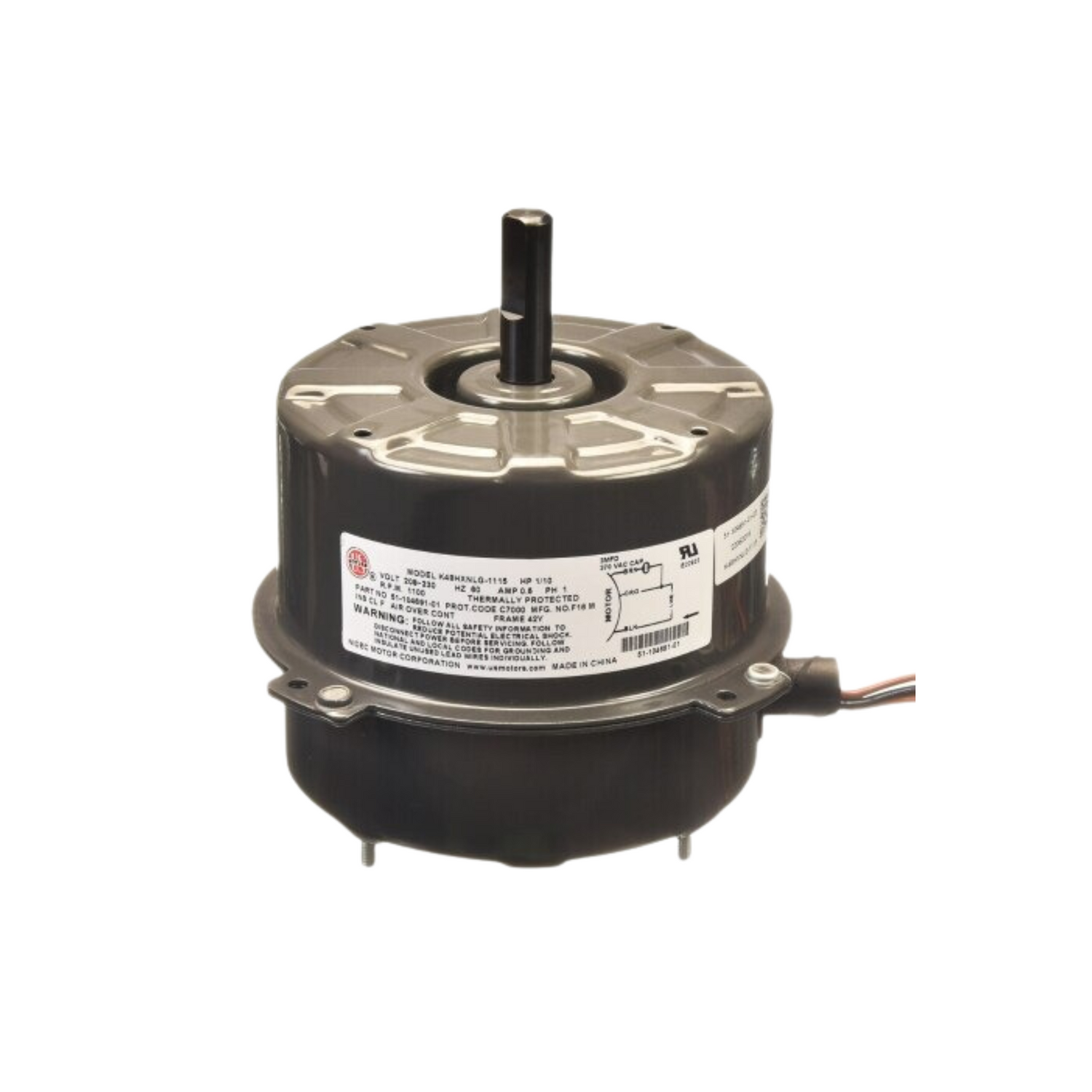

Rheem 51-104691-01 1/10 HP 1 Phase, 1 Speed Condenser Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 51-104691-01
Product Type: Condenser Motor
Bearing Type: Ball
Drive Type: Direct Drive
FLA at 208V: 0.50 A
FLA at 230V: 0.50 A
Frame Size: 42
Frequency: 60 Hz
High Speed: 1075 RPM
HP: 1/10
Input Voltage: 208, 230 V
Keyed/Flat Shaft Length: 1"
LRA at 208V: 1.30 A
LRA at 230V: 1.30 A
Motor Body Diameter: 4 29/32"
Motor Body Length: 4 3/32"
Mounting: Thru-bolt
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length: 5 23/32"
Overall Shaft Length: 1 19/32"
Rotation Direction: CCW
Run Capacitor: 3/370 uF/V
Shaft Diameter: 1/2"
Dimensions: 9.7" x 6.65" x 7.35"
Weight: 7.39 lb.
