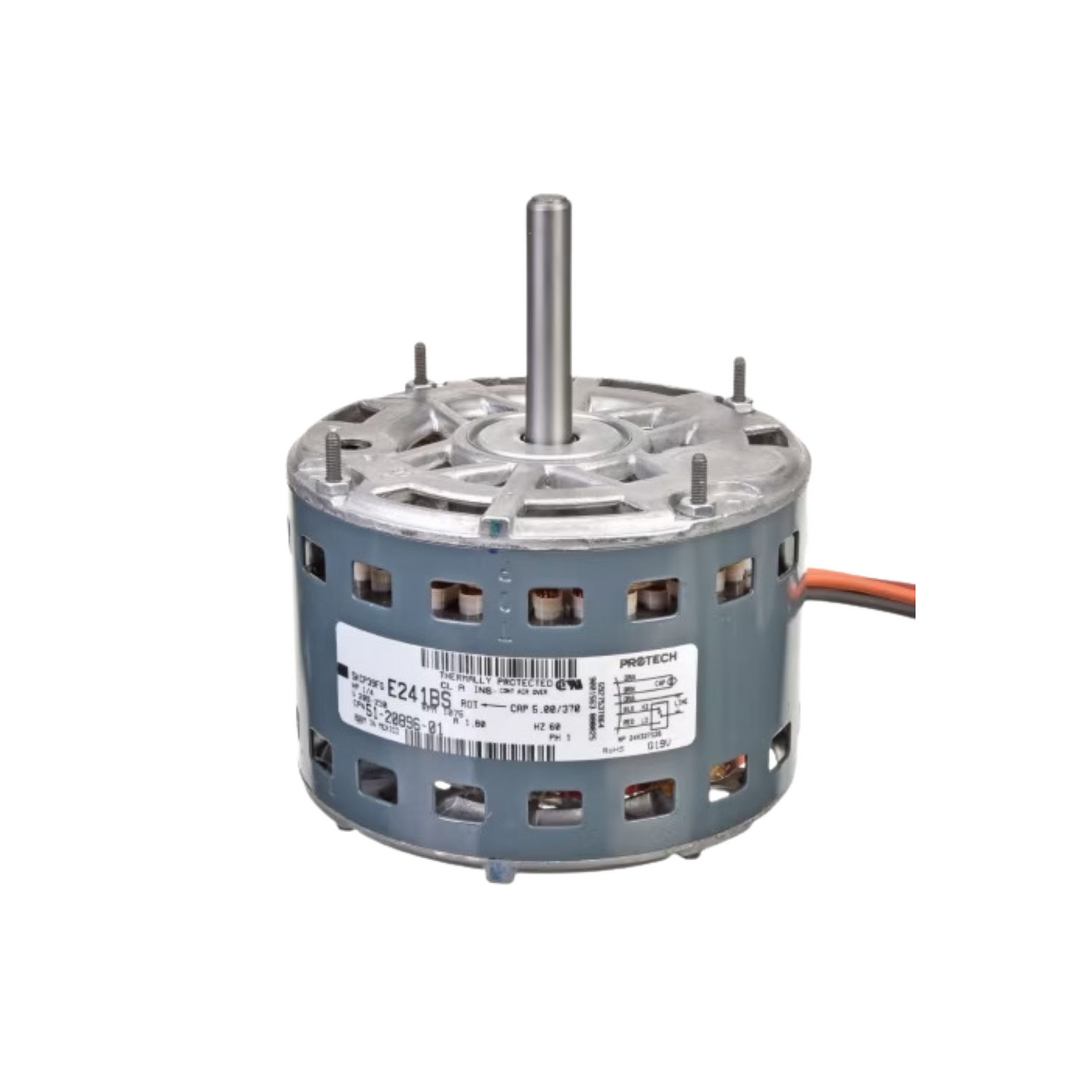

Rheem 51-20896-01 1/4 HP 1 Phase, 2 Speed Blower Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 51-20896-01
Product Type: Blower Motor
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 230V: 1.80 A
Frame Size: 48
Frequency: 60 Hz
High Speed: 1075 RPM
HP: 1/4
Input Voltage: 208, 230 V
Keyed/Flat Shaft Length: 2"
LRA at 230V: 2.80 A
Motor Body Diameter: 5 5/8"
Motor Body Length: 4 1/16"
Mounting: Shell-band, Thru-bolt
No. of Phases: 1
No. of Speeds: 2
Overall Motor Length: 6 9/16"
Overall Shaft Length: 2 1/2"
Rotation Direction: CCW
Run Capacitor: 5/370 uF/V
Shaft Diameter: 1/2"
Dimensions: 14.7" x 6.85" x 7.45"
Weight: 10.57 lb.
