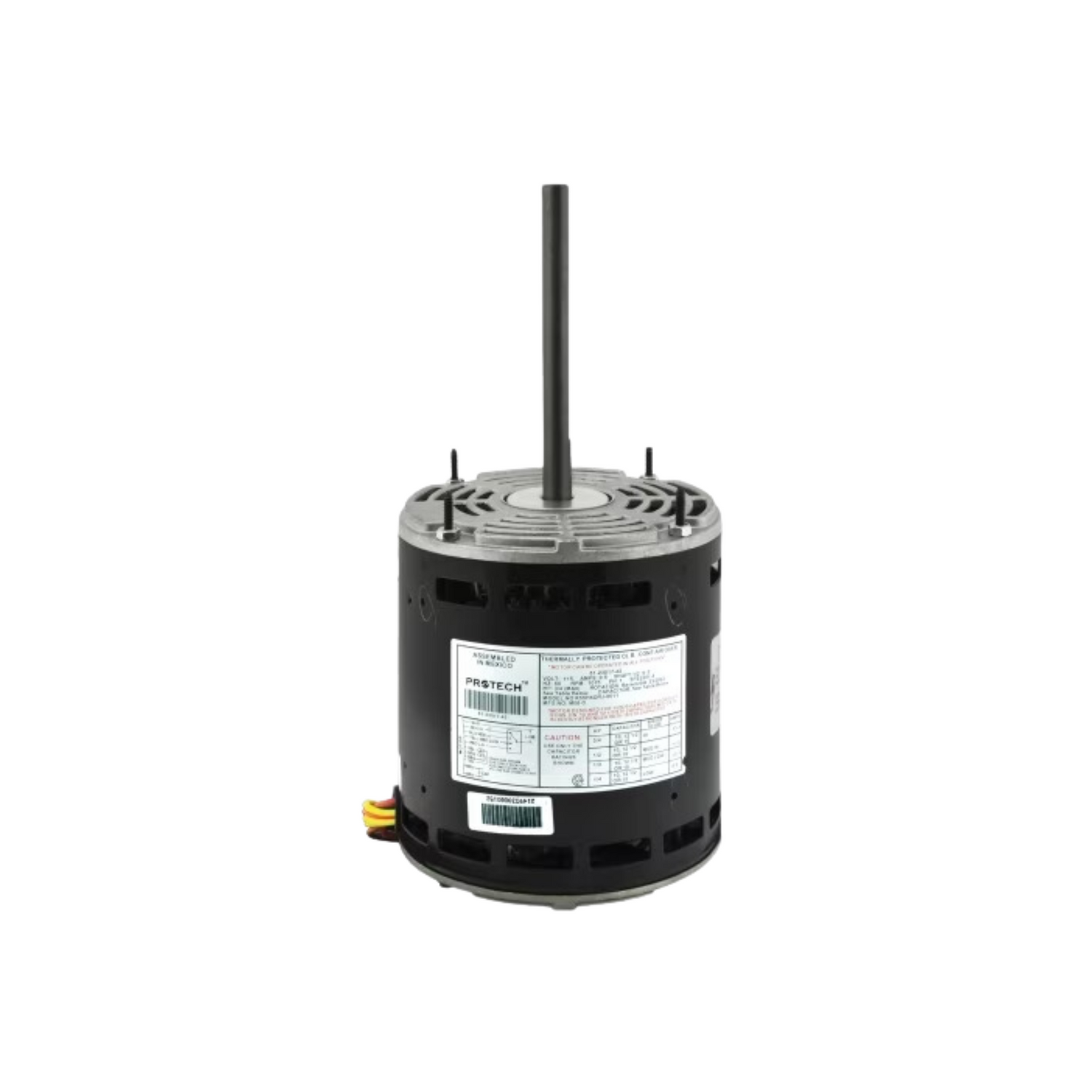

Rheem 51-23017-42 1/2 to 3/4 HP 1 Phase, 4 Speed Blower Motor
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 51-23017-42
Product Type: Blower Motor
Bearing Type: Ball
Drive Type: Direct Drive
FLA at 120V: 9.50 A
Frame Size: 48
Frequency: 60 Hz
High Speed: 1075 RPM
HP: 1/4 to 3/4
Input Voltage: 120 V
Keyed/Flat Shaft Length: 4"
Motor Body Diameter: 5 5/8"
Motor Body Length: 5 13/16"
Mounting: Shell-band, Shell-screw
No. of Phases: 1
No. of Speeds: 4
Overall Motor Length: 10 13/16"
Overall Shaft Length: 5"
Rotation Direction: Reversible
Run Capacitor: 10/370 uF/V, 12.5/370 uF/V, or 15/370 uF/V
Shaft Diameter: 1/2"
Dimensions: 7.6" x 14.6" x 7.5"
Weight: 20.22 lb.
