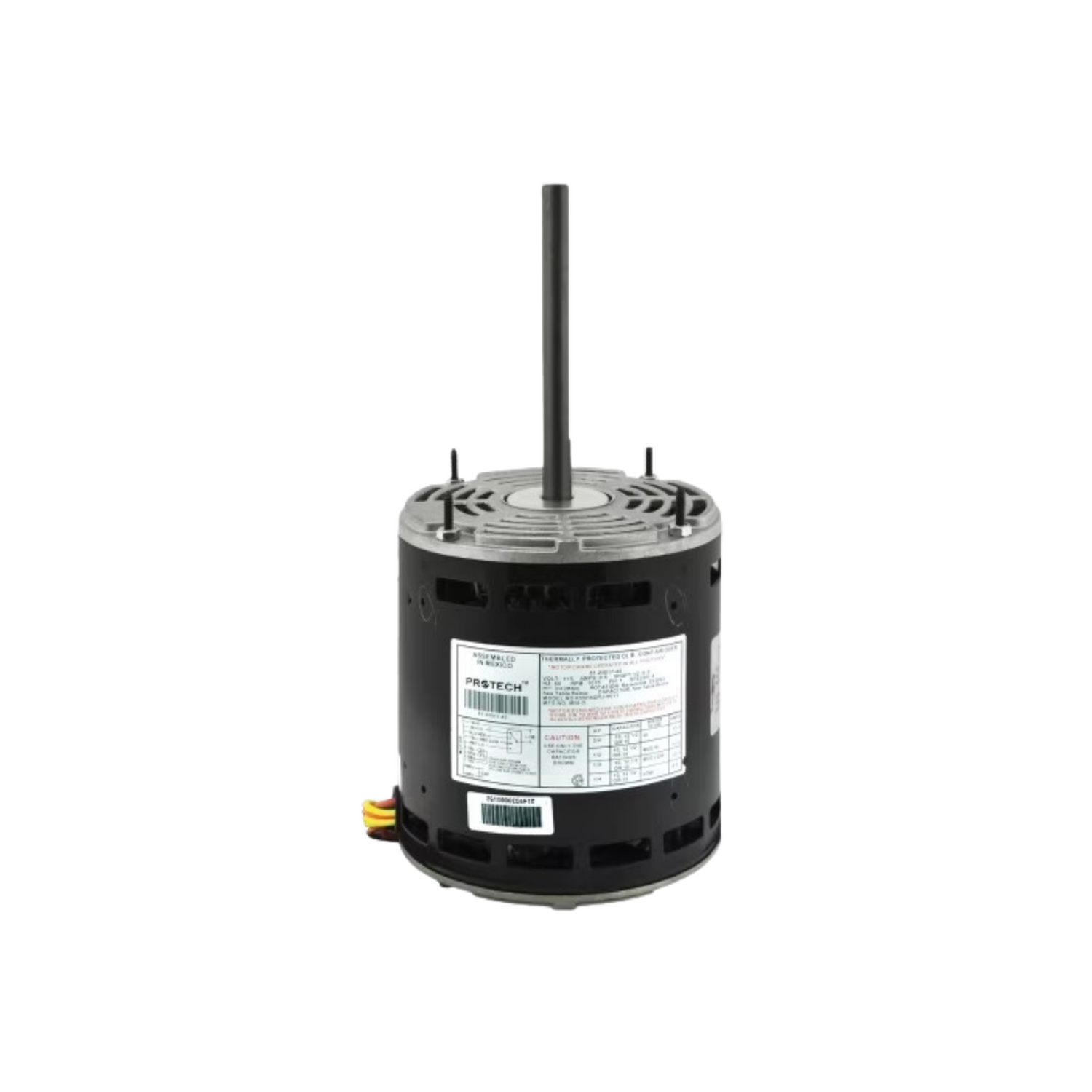

Rheem 51-23022-41 1/6 to 1/2 HP 1 Phase, 4 Speed Blower Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Capacitor and motor speed selection for various HP applications: 1/2 HP: All Speeds, 10/370 uF/V, 3.6 FLA 1/3 HP: All Speeds, 5/370 uF/V 3.5 FLA, 7.5/370 uF/V 3.5 FLA 1/4 HP: Med-Hi, Med-Lo or Lo Speeds, 5/370 uF/V 2.8 FLA, 7.5/370 2.8 FLA 1/5 HP: Med-Lo or Lo Speeds, 5/370 uF/V 1.9 FLA, 7.5/370 uF/V 1.9 FLA 1/6 HP: Lo Speed, 5/370 uF/V 1.3 FLA, 7.5/370 uF/V 1.3 FLA
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 51-23022-41
Product Type: Blower Motor
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 230V: 3.60 A
Frame Size: 48
Frequency: 60 Hz
High Speed: 1075 RPM
HP: 1/6 to 1/2
Input Voltage: 208, 230 V
Keyed/Flat Shaft Length: 4"
LRA at 230V: 6.40 A
Motor Body Diameter: 5 5/8"
Motor Body Length: 4 5/8"
Mounting: Shell-band, Thru-bolt
No. of Phases: 1
No. of Speeds: 4
Overall Motor Length: 9 5/8"
Overall Shaft Length: 5"
Rotation Direction: Reversible
Run Capacitor: 5/370 uF/V, 7.5/370 uF/V, or 10/370 uF/V
Shaft Diameter: 1/2"
Dimensions: 12.85" x 7.45" x 7.15"
Weight: 13.89 lb.
