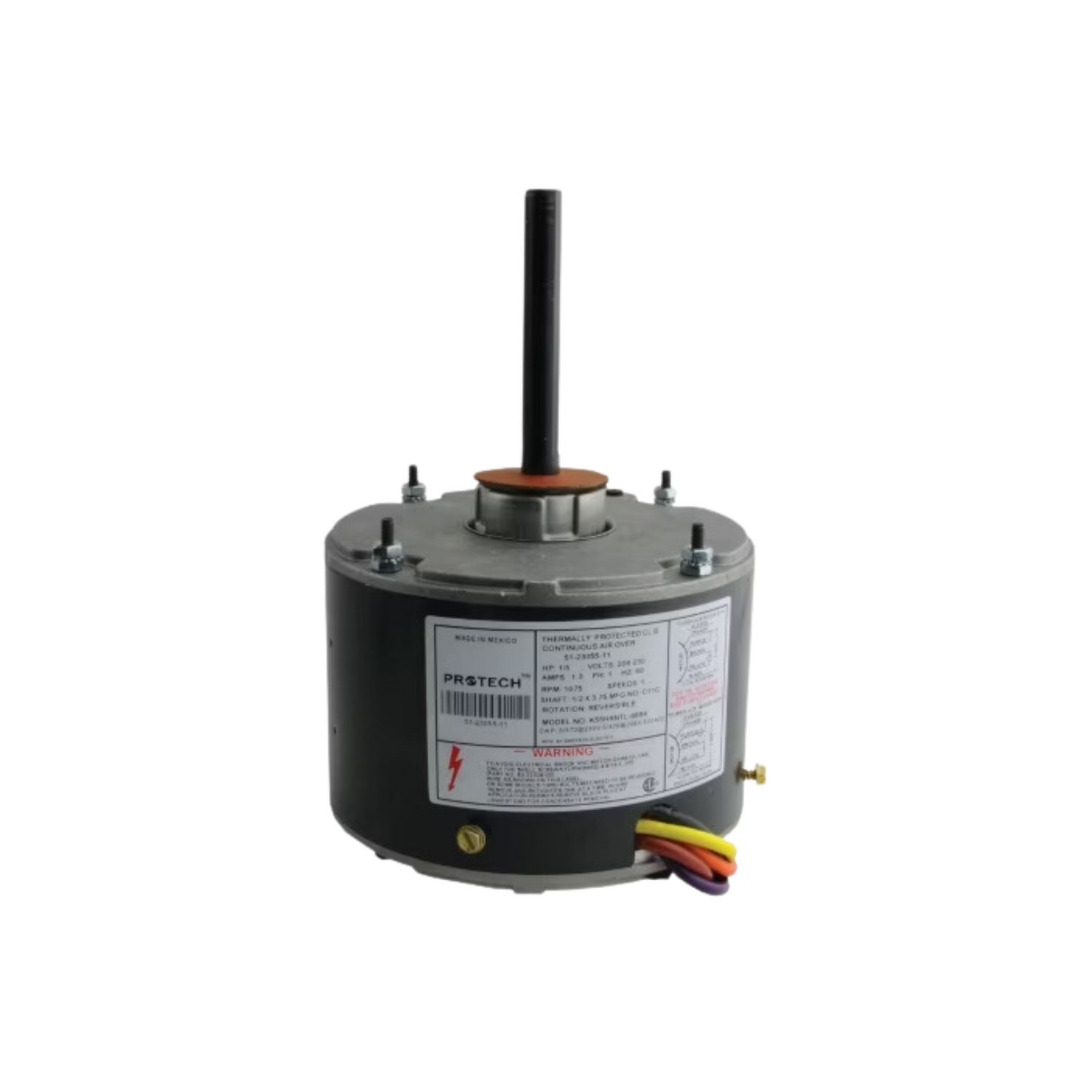

Rheem 51-23055-12 1/5 HP 1 Phase, 1 Speed Condenser Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Rheem 51-23055-12 1/5 HP 1 Phase, 1 Speed Condenser Motor
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 51-23055-12
Product Type: Condenser Motor
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 230V: 1.30 A
Frame Size: 48
Frequency: 60 Hz
High Speed: 825 RPM
HP: 1/5
Input Voltage: 208, 230 V
Keyed/Flat Shaft Length: 3 1/4"
Motor Body Diameter: 5 5/8"
Motor Body Length: 4 3/8"
Mounting: Shell-band, Shell-screw, Thru-bolt
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length: 8 1/8"
Overall Shaft Length: 3 3/4"
Rotation Direction: Reversible
Run Capacitor: 5/370 uF/V
Shaft Diameter: 1/2"
Dimensions: 13.1" x 7.1" x 7.1"
Weight: 11.88 lb.
