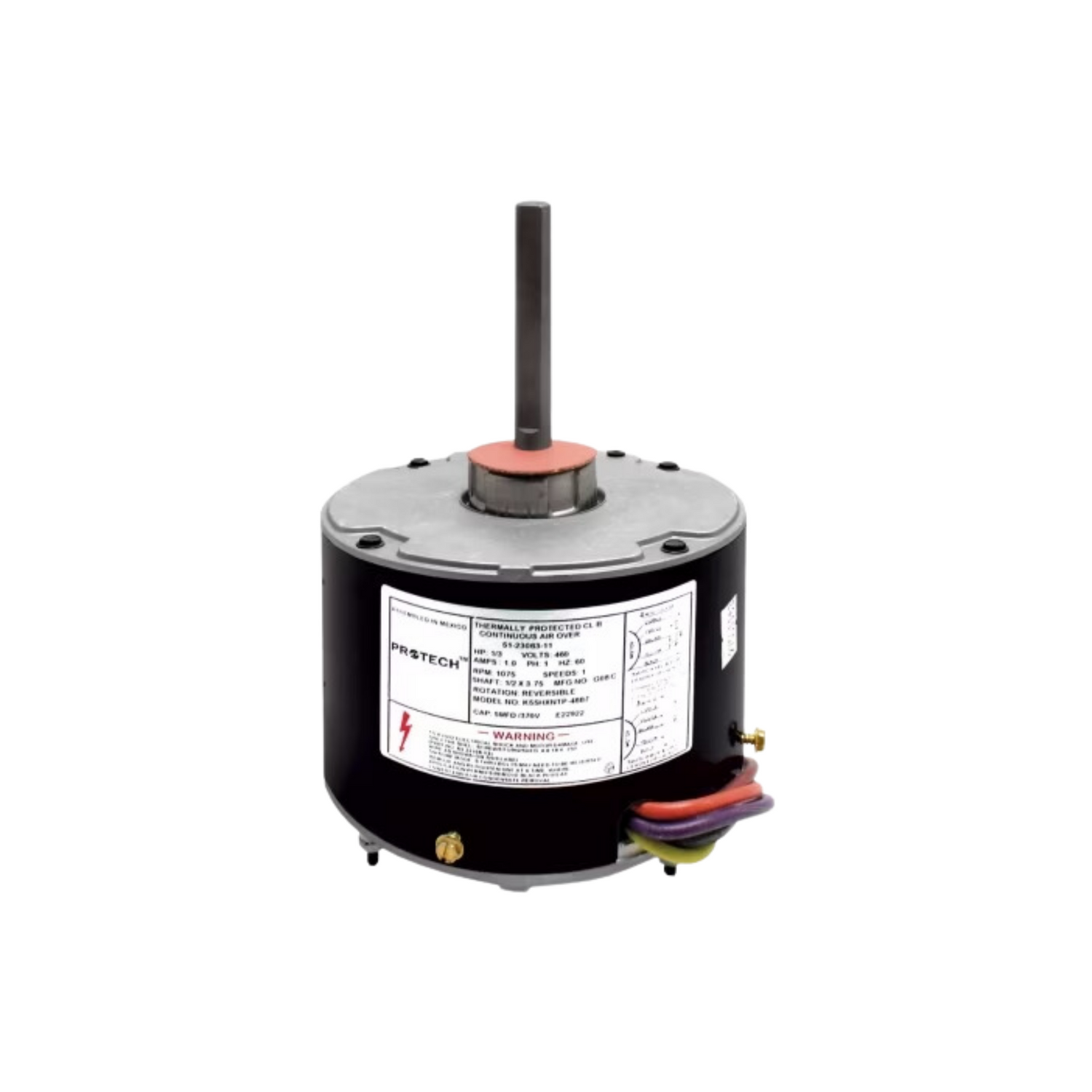

Rheem 51-23063-11 1/3 HP 1 Phase, 1 Speed Condenser Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 51-23063-11
Product Type: Condenser Motor
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 460V: 1.00 A
Frame Size: 48
Frequency: 60 Hz
High Speed: 1075 RPM
HP: 1/3
Input Voltage: 460 V
Keyed/Flat Shaft Length: 3 1/4"
Motor Body Diameter: 5 5/8"
Motor Body Length: 4 1/8"
Mounting: Shell-band, Shell-screw, Thru-bolt
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length: 8 3/8"
Overall Shaft Length: 4 1/4"
Rotation Direction: Reversible
Run Capacitor: 5/370 uF/V
Shaft Diameter: 1/2"
Dimensions: 7.25" x 12.9" x 7.2"
Weight: 11.88 lb.
