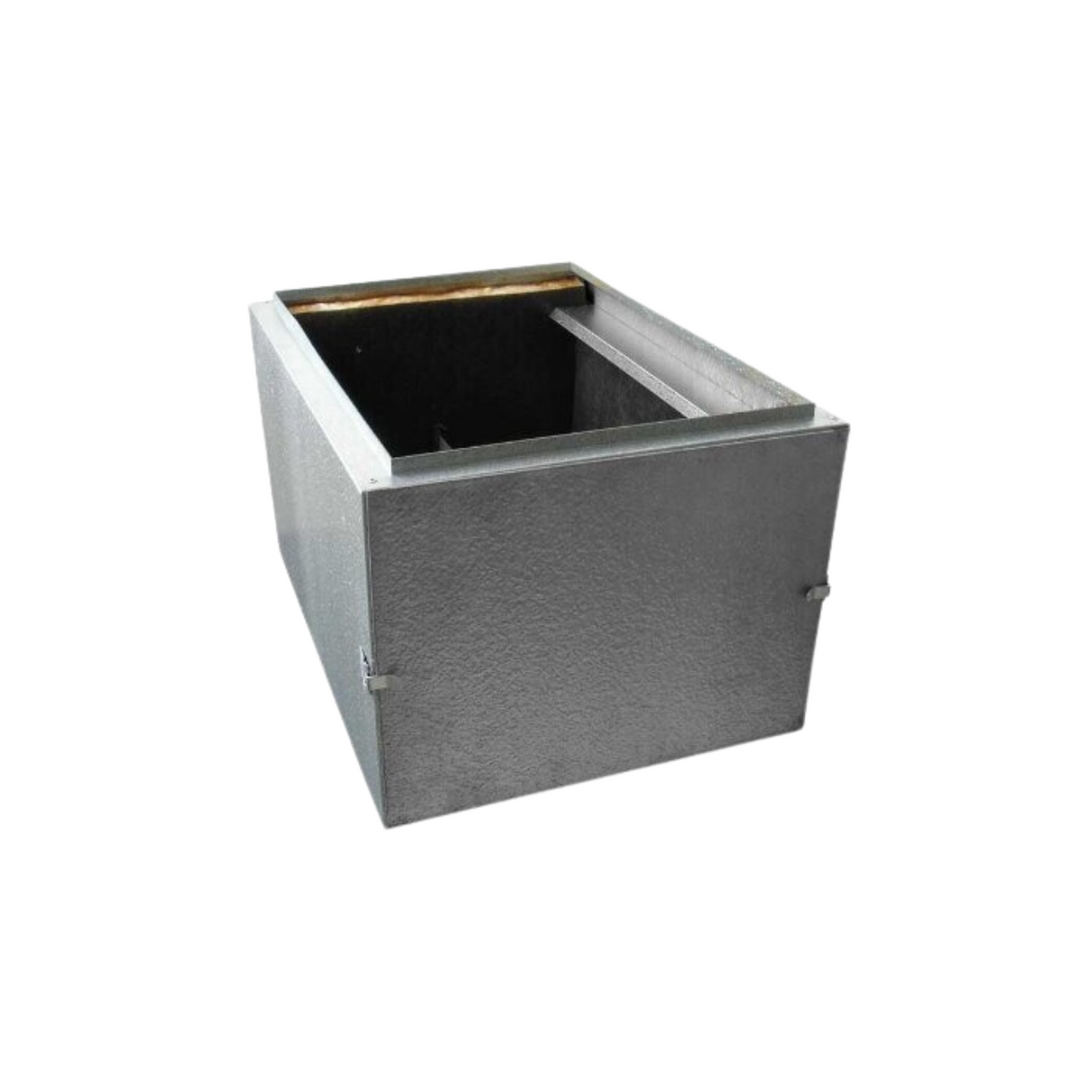

Rheem 54-1020-CF1 10" X 20" Downflow - Gas Filter Base
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Protect your furnace from dirt and debris with these embossed, heavy steel gauge filter bases. Filter bases are completely insulated, and allow for filter access without vent pipe interference.
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 54-1020-CF1
Product Type: Filter Base
Air Opening Inlet Dimensions Length: 20 1/8"
Air Opening Inlet Dimensions Width: 12 5/8"
Air Opening Outlet Dimensions Length: 19 7/8"
Air Opening Outlet Dimensions Width: 13 3/4"
Door Opening Dimension and Location: 15 3/4", Side
Door Type: Flip Latch
Duct Configuration: Through
Housing Overall (Outside) Dimensions Height: 12"
Housing Overall (Outside) Dimensions Length: 21 3/8"
Housing Overall (Outside) Dimensions Width: 15 3/4"
Insulation: Yes
Number of Filters per Unit: 2
Replacement Media Dimensions - Actual: 9 7/8" x 19 7/8"
Replacement Media Dimensions - Nominal: 10 x 20"
Replacement Media Thickness: 1"
Series: CF
Typical Application: Downflow - Gas
Dimensions: 13.4" x 24.38" x 16.5"
Weight: 15.55 lb.
