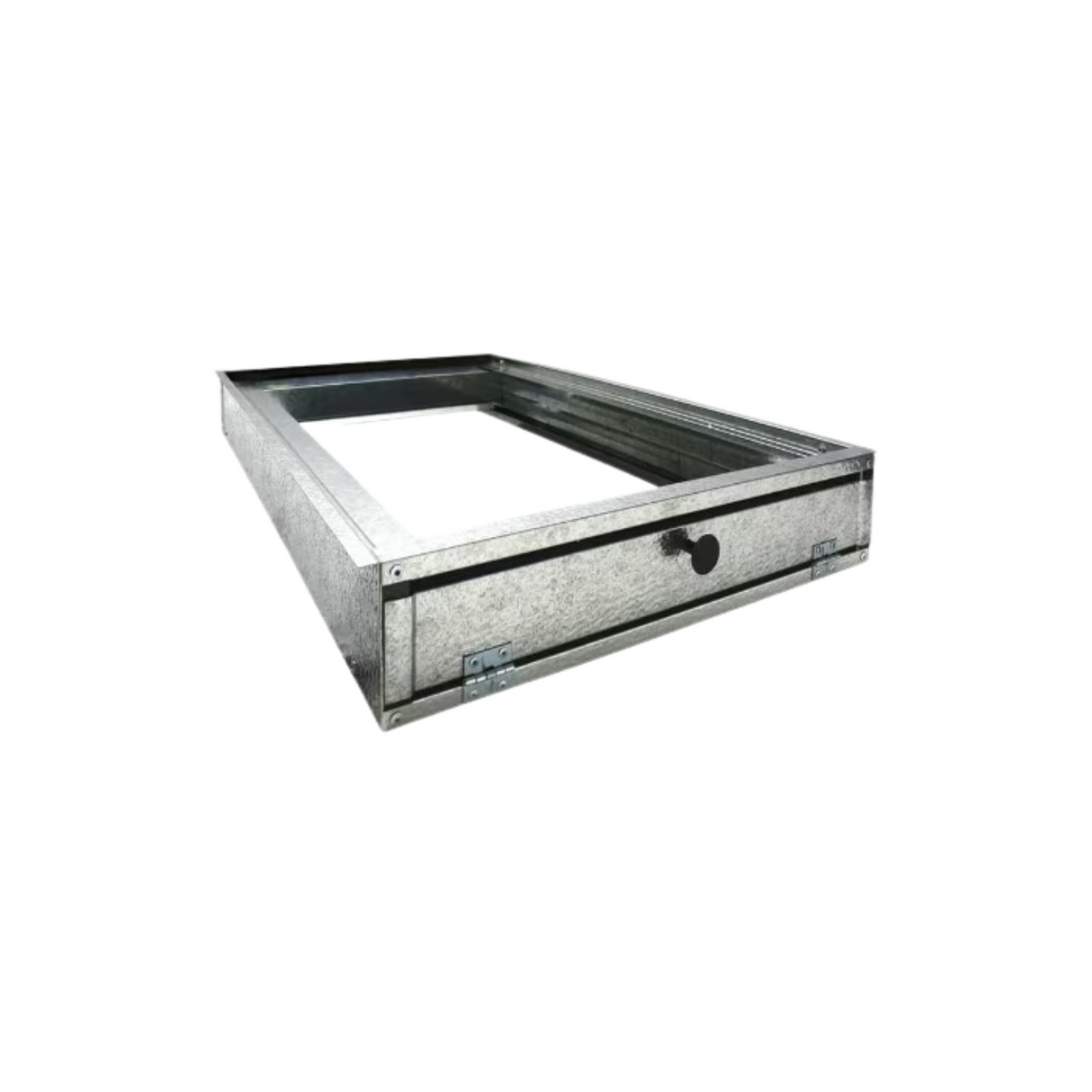

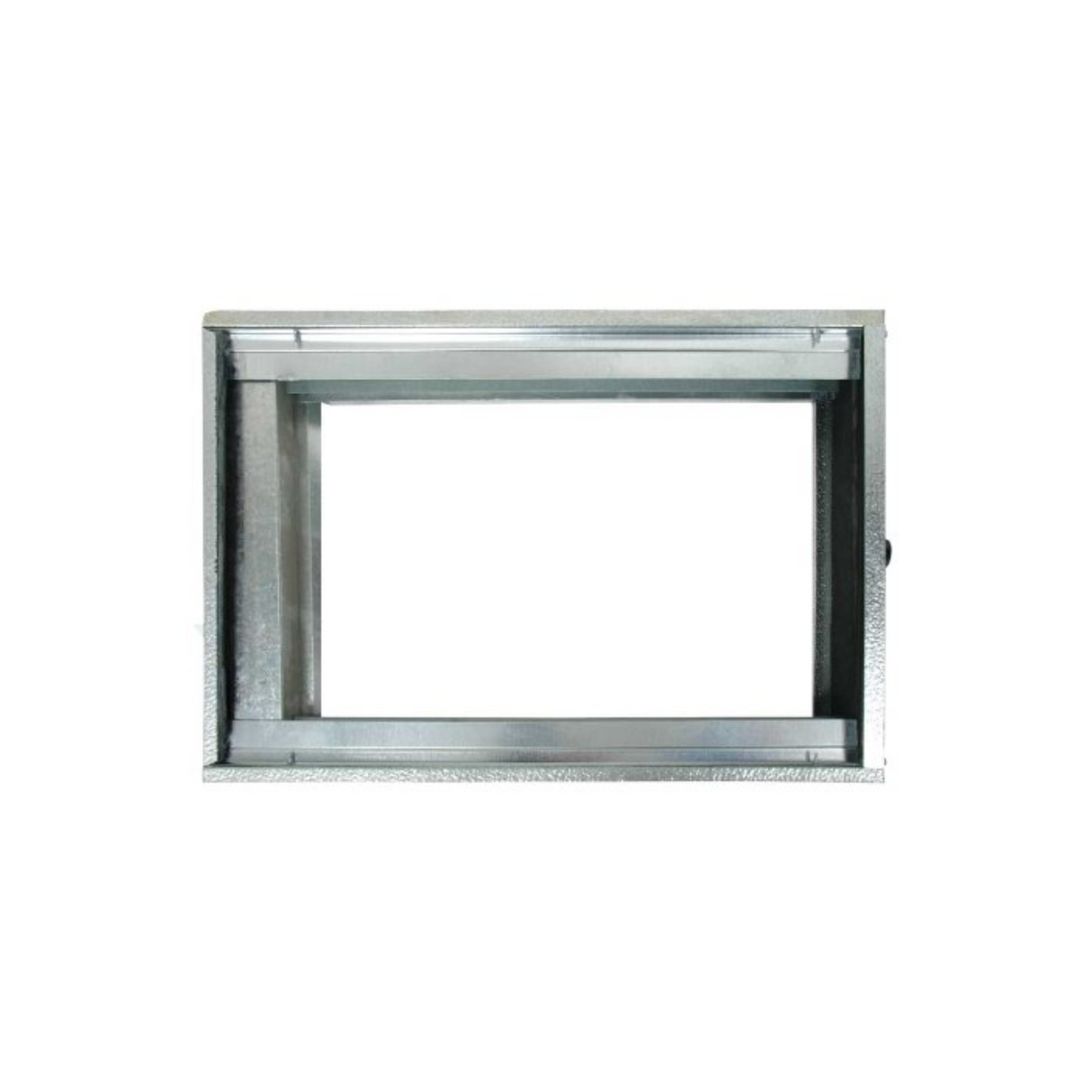

Rheem 54-2424-G6 24" x 24" Upflow - Gas Filter Base
Rheem 54-2424-G6 24" x 24" Upflow - Gas Filter Base is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
The ACG Series of filter bases for gas furnaces include a hinged door that provides easy filter access and gasket ensures tight seal. These filter bases use standard filter sizes and are fully insulated.
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 54-2424-G6
Product Type: Filter Base
Air Opening Inlet Dimensions Length: 26 1/2"
Air Opening Inlet Dimensions Width: 22 7/8"
Air Opening Outlet Dimensions Length: 26 1/2"
Air Opening Outlet Dimensions Width: 22 7/8"
Door Opening Dimension and Location: 25 3/8", Side
Door Type: Hinged
Duct Configuration: Through
Housing Overall (Outside) Dimensions Height: 5 3/4"
Housing Overall (Outside) Dimensions Length: 28 1/2"
Housing Overall (Outside) Dimensions Width: 25 3/8"
Insulation: Yes
Number of Filters per Unit: 1
Replacement Media Dimensions - Actual: 23 5/8" x 23 5/8"
Replacement Media Dimensions - Nominal: 24" x 24"
Replacement Media Thickness: 1", 2", or 4"
Series: ACG
Typical Application: Upflow - Gas
Dimensions: 6.25" x 30.25" x 27"
Weight: 18.75 lb.
