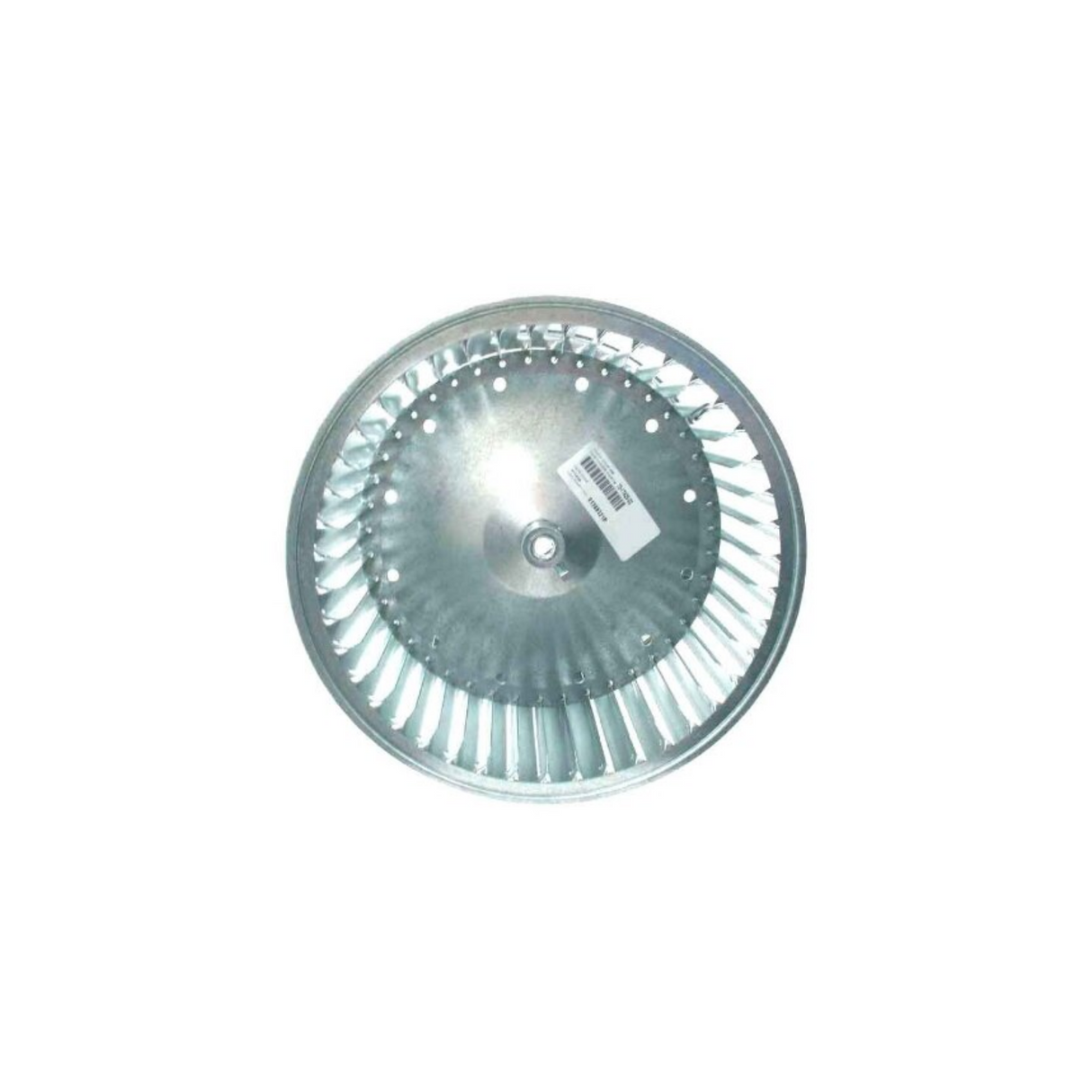

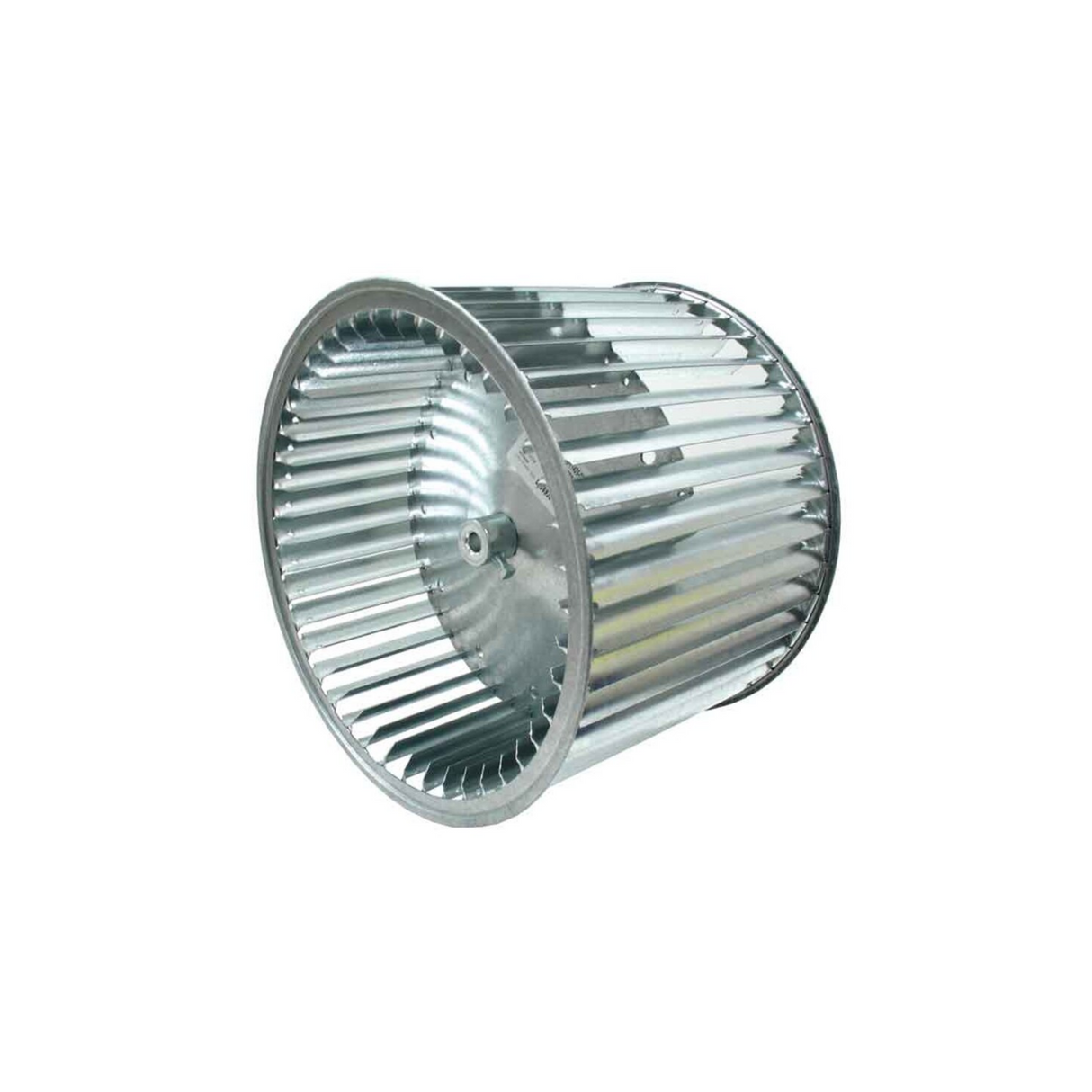

Rheem 70-18625-01 10" x 9" Concave Clockwise Blower Wheel
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
The CW Blower Wheel for direct drive blowers are dynamically balanced and forward curved, incorporating the Preslok center disc construction for positive blade retention. The wheel provides higher RPM capability and industry proven reliability. Wheels are made of galvanized, cold-rolled steel. Rotation is by viewing hub (bore) end.
Features:
Universal blower wheels for direct drive blowers
Made from galvanized cold rolled steel
Concave
OEM genuine factory authorized part
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 70-18625-01
Product Type: Blower Wheel
Disc Setback: Outside Edge of Disc to End of Wheel Opposite Hub Dimension C: 4 3/4"
Hub Side Disc Shape: Concave
Hub Length Dimension B: 1 1/8"
Keyway: None
No. of Blades: 48
No. Set Screws: 1
Nominal Hub Bore Shaft Size Dimension E: 1/2"
Nominal Size: 10" x 9"
Outside Edge of Disc to Outside End of Hub Dimension A: 1/32"
Overall Diameter Dimension D: 10 5/8"
Overall Width Dimension W: 9 1/2"
Facing Hub Rotation Direction: CW
Dimensions: 12.95" x 12.9" x 13.25"
Weight: 7.78 lb.
