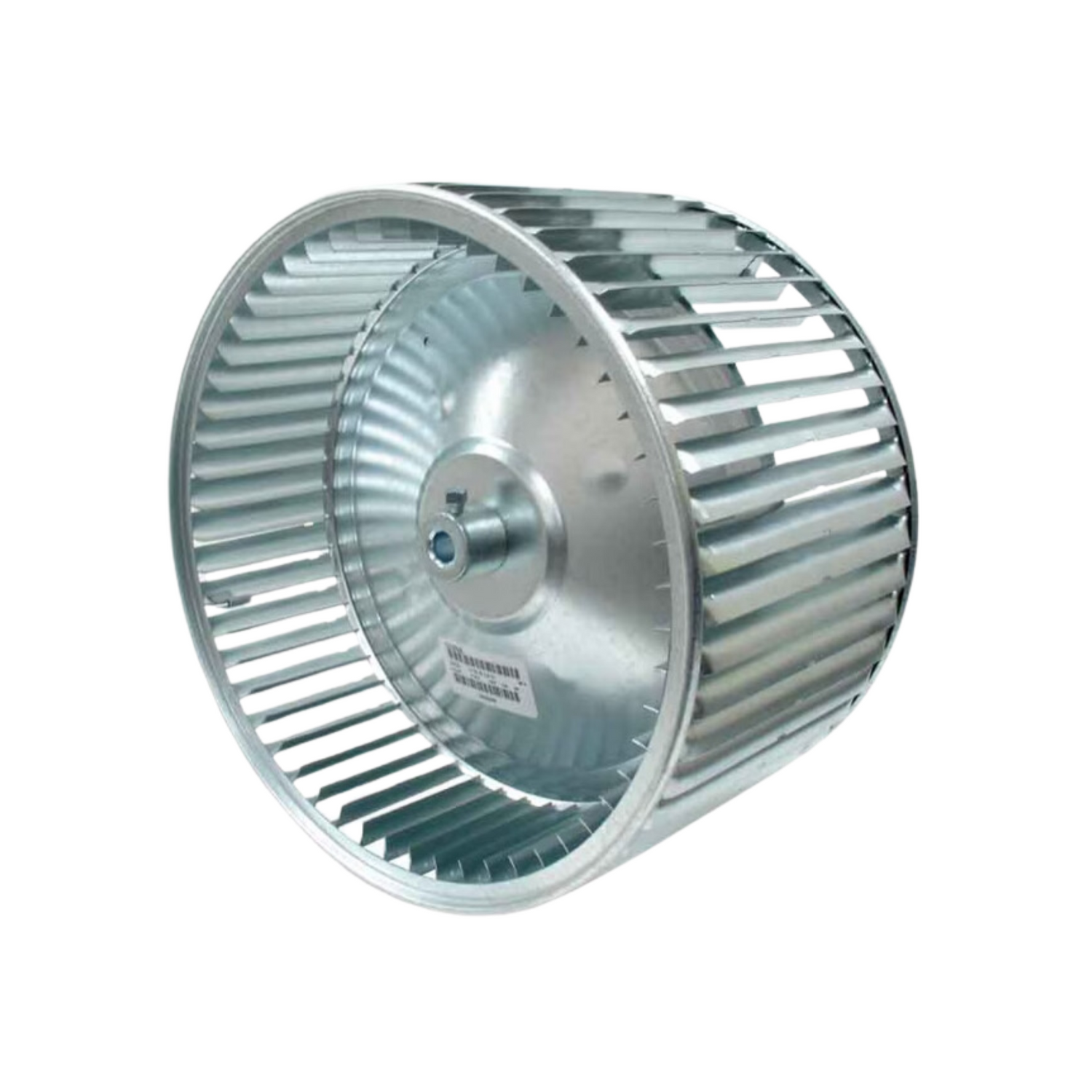

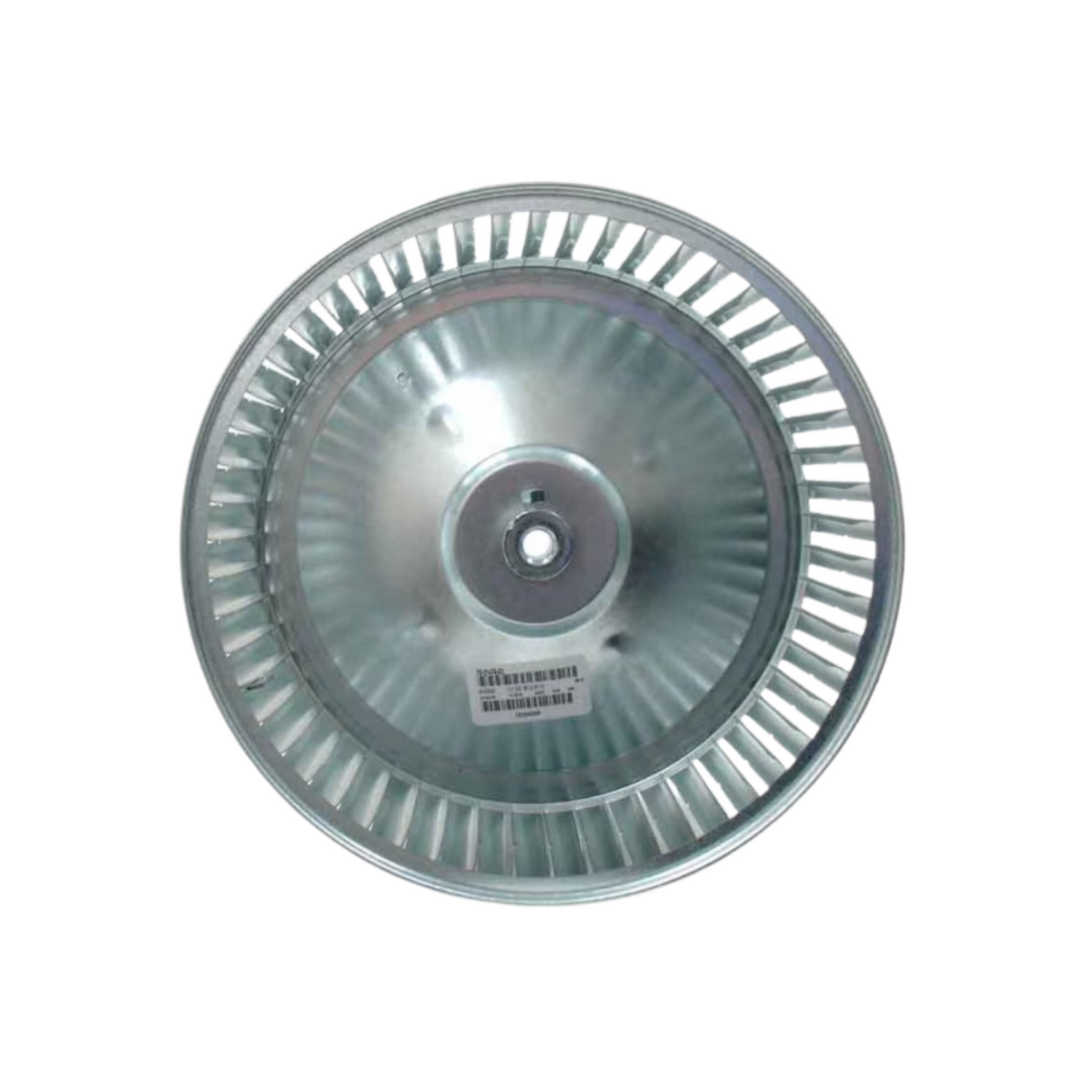

Rheem 70-21476-02 Convex 54 Blades, CW Blower Wheel
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 70-21476-02
Product Type: Blower Wheel
Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C: 3 19/32"
Hub Side Disc Shape: Convex
Hub Length Dim. B: 1 1/8"
Keyway: None
No. of Blades: 54
No. Set Screws: 1
Nominal Hub Bore Shaft Size Dim. E: 1/2"
Nominal Size: 11" x 7"
Outside Edge of Disc to Outside End of Hub Dim. A: 2 1/8"
Overall Diameter Dim. D: 11 15/16"
Overall Width Dim. W: 7 3/16"
Facing Hub Rotation Direction: CW
Diameter: 15.35" x 14.75" x 14.30"
Weight: 7.03 lb
