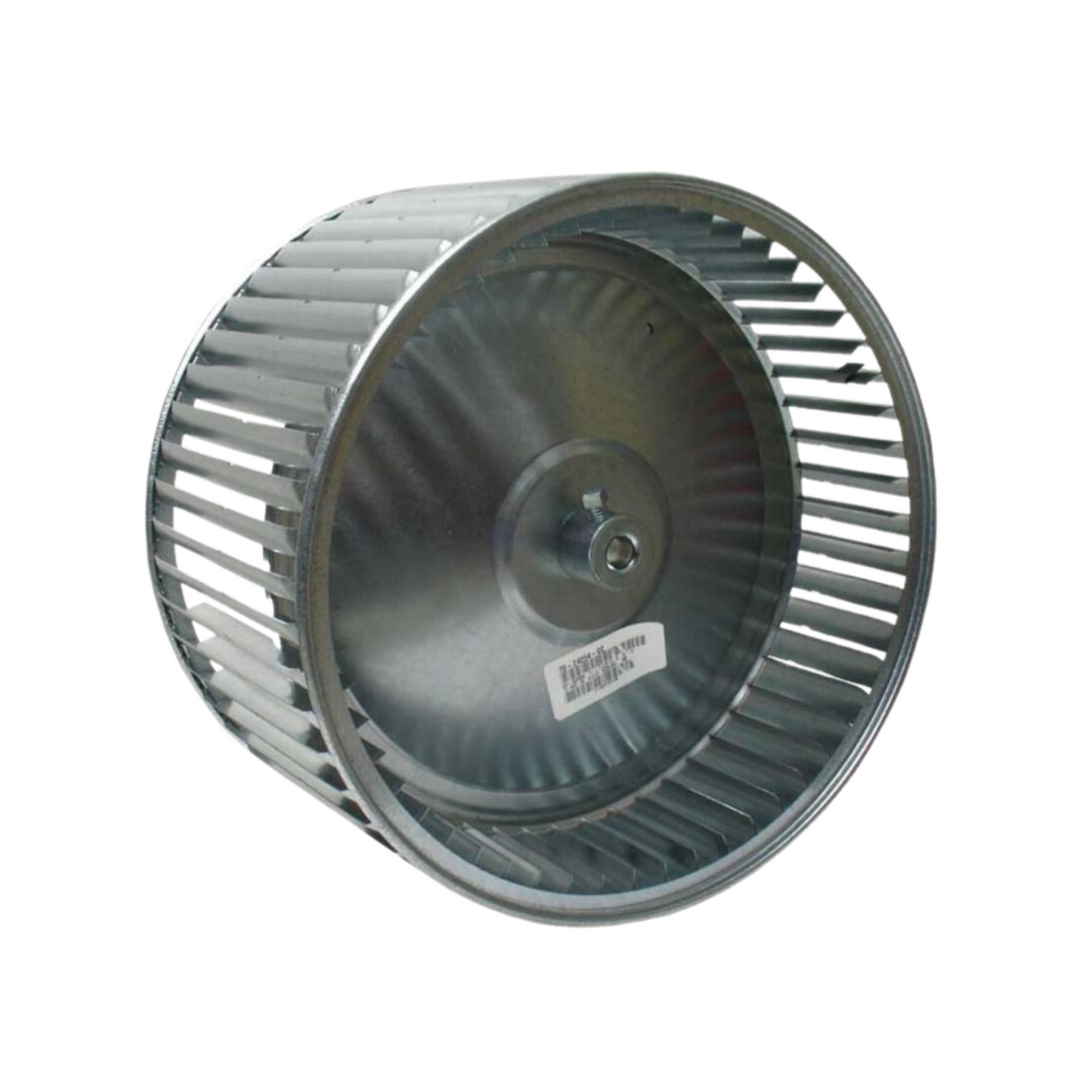

Rheem 70-24254-02 Convex, 54 Blades, CW Blower Wheel
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 70-24254-02
Product Type: Blower Wheel
Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C: 4 1/16"
Hub Side Disc Shape: Convex
Hub Length Dim. B: 1 1/8"
Keyway: None
No. of Blades: 54
No. Set Screws: 1
Nominal Hub Bore Shaft Size Dim. E: 1/2"
Nominal Size: 11" x 7"
Outside Edge of Disc to Outside End of Hub Dim. A: 2 1/8"
Overall Diameter Dim. D: 11 15/16"
Overall Width Dim. W: 7 1/8"
Facing Hub Rotation Direction: CW
Diameter: 15.20" x 14.50" x 14.20"
Weight: 6.95 lb
