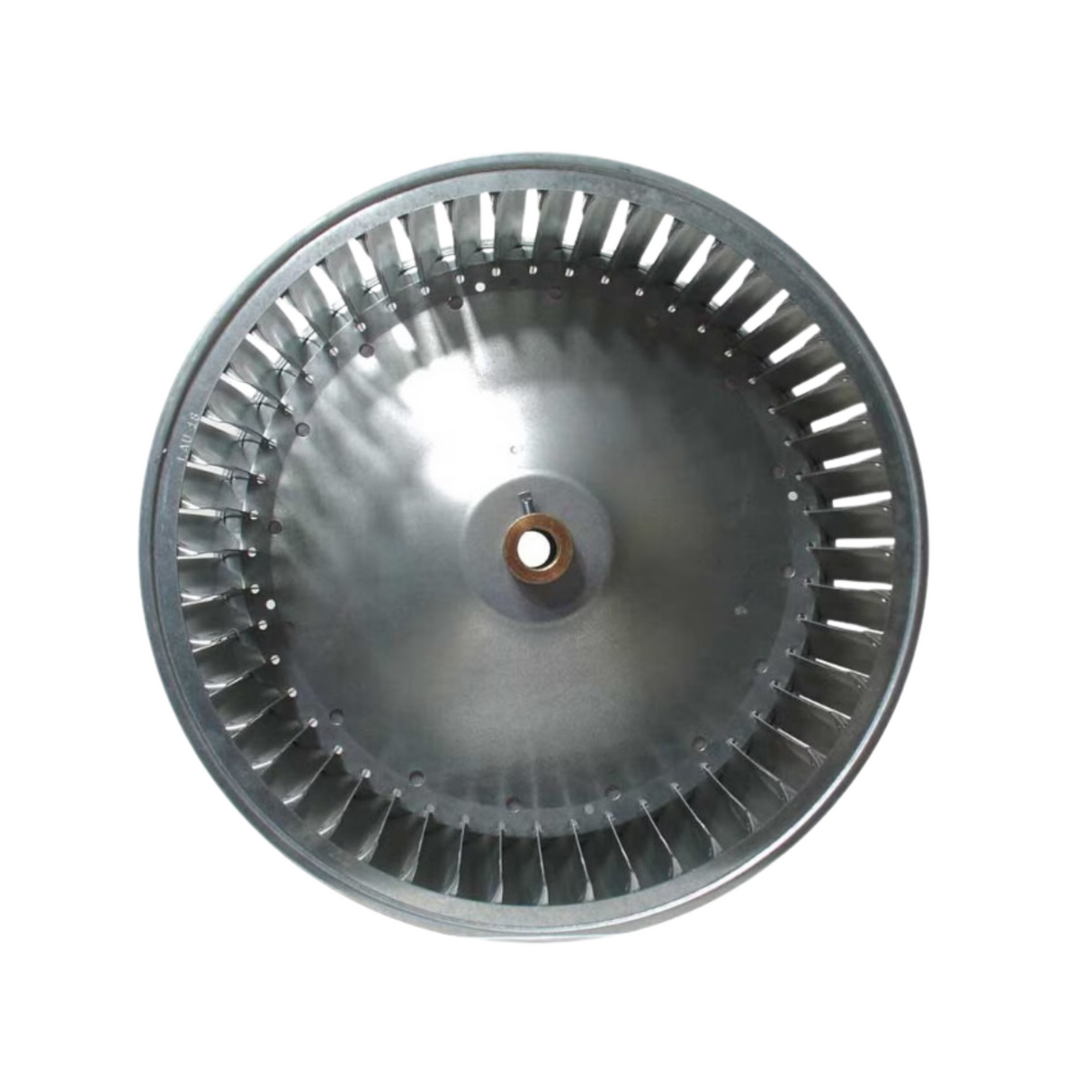

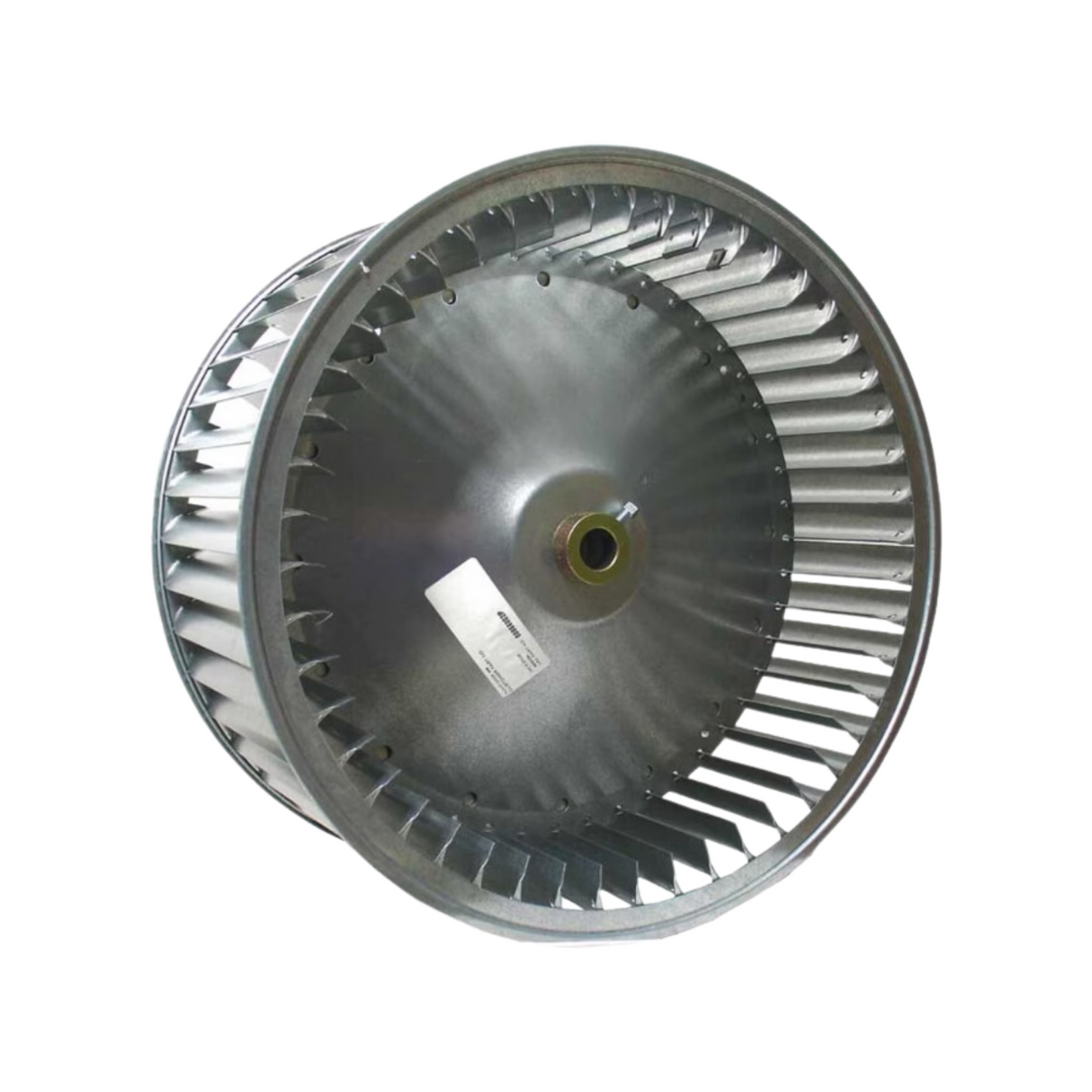

Rheem 70-42564-02 - Blower Wheel, 18 5/8" Diameter x 9" Wide, 1" Bore, CW/CCW Rotation, Convex, Double Inlet, Direct Drive
Rheem 70-42564-02 - Blower Wheel, 18 5/8" Diameter x 9" Wide, 1" Bore, CW/CCW Rotation, Convex, Double Inlet, Direct Drive is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Rheem 70-42564-02 - Blower Wheel, 18 5/8" Diameter x 9" W...
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 70-42564-02
Product Type: Blower Wheel
Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C: 9"
Hub Side Disc Shape: Double Convex
Hub Length Dim. B: 5"
Keyway: None
No. of Blades: 48
No. Set Screws: 2
Nominal Hub Bore Shaft Size Dim. E: 1"
Nominal Size: 18" x 9"
Outside Edge of Disc to Outside End of Hub Dim. A: 2 1/2"
Overall Diameter Dim. D: 18 5/8"
Overall Width Dim. W: 9"
Facing Hub Rotation Direction: Reversible
Diameter: 23.25" x 21.50" x 17.50"
Weight: 25 lb
