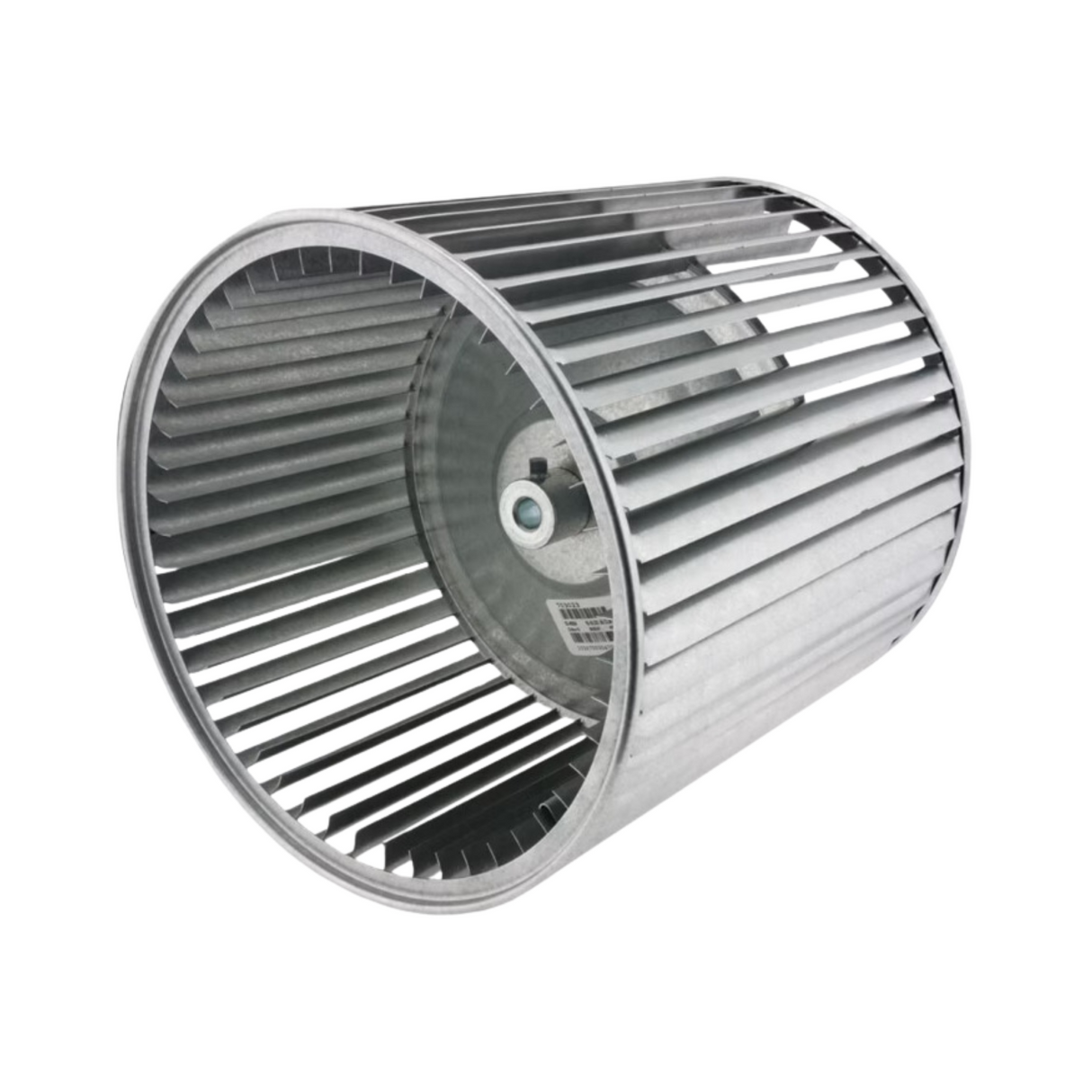

Rheem 703023 Convex, 48 Blades, CW Blower Wheel
Description
Description
The CW Blower Wheel for direct drive blowers are dynamically balanced and forward curved, incorporating the Preslok center disc construction for positive blade retention. The wheel provides higher RPM capability and industry proven reliability. Wheels are made of galvanized, cold-rolled steel. Rotation is by viewing hub (bore) end.
Features:
Universal blower wheels for direct drive blowers
Made from galvanized cold rolled steel
Convex
OEM genuine factory authorized part
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 703023
Product Type: Blower Wheel
Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C: 4 11/32"
Hub Side Disc Shape: Convex
Hub Length Dim. B: 1 1/8"
Keyway: None
No. of Blades: 48
No. Set Screws: 1
Nominal Hub Bore Shaft Size Dim. E: 1/2"
Nominal Size: 10" x 10"
Outside Edge of Disc to Outside End of Hub Dim. A: 2"
Overall Diameter Dim. D: 10 5/8"
Overall Width Dim. W: 10 11/16"
Facing Hub Rotation Direction: CW
Diameter: 15.40" x 14.65" x 14.65"
Weight: 7.88 lb
