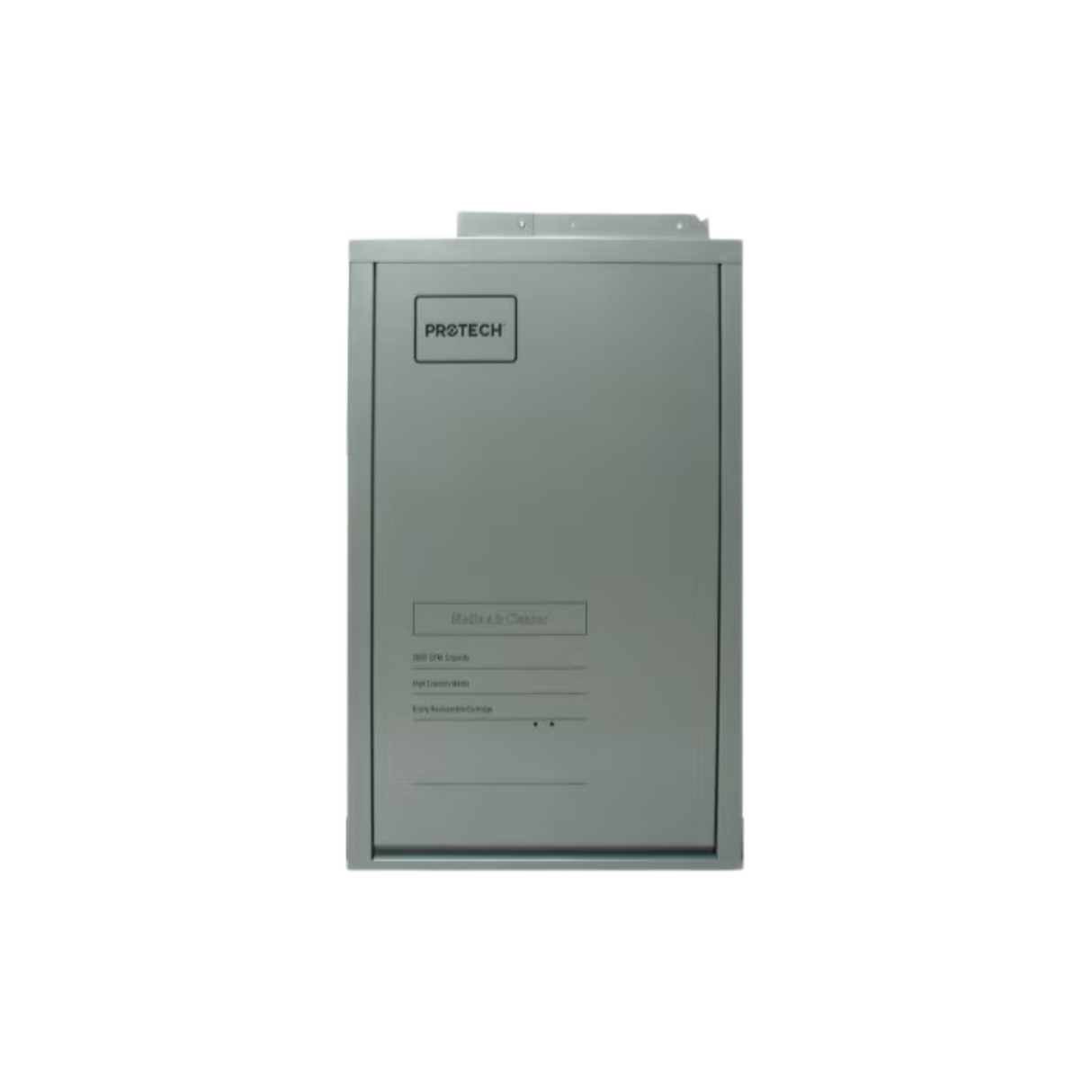

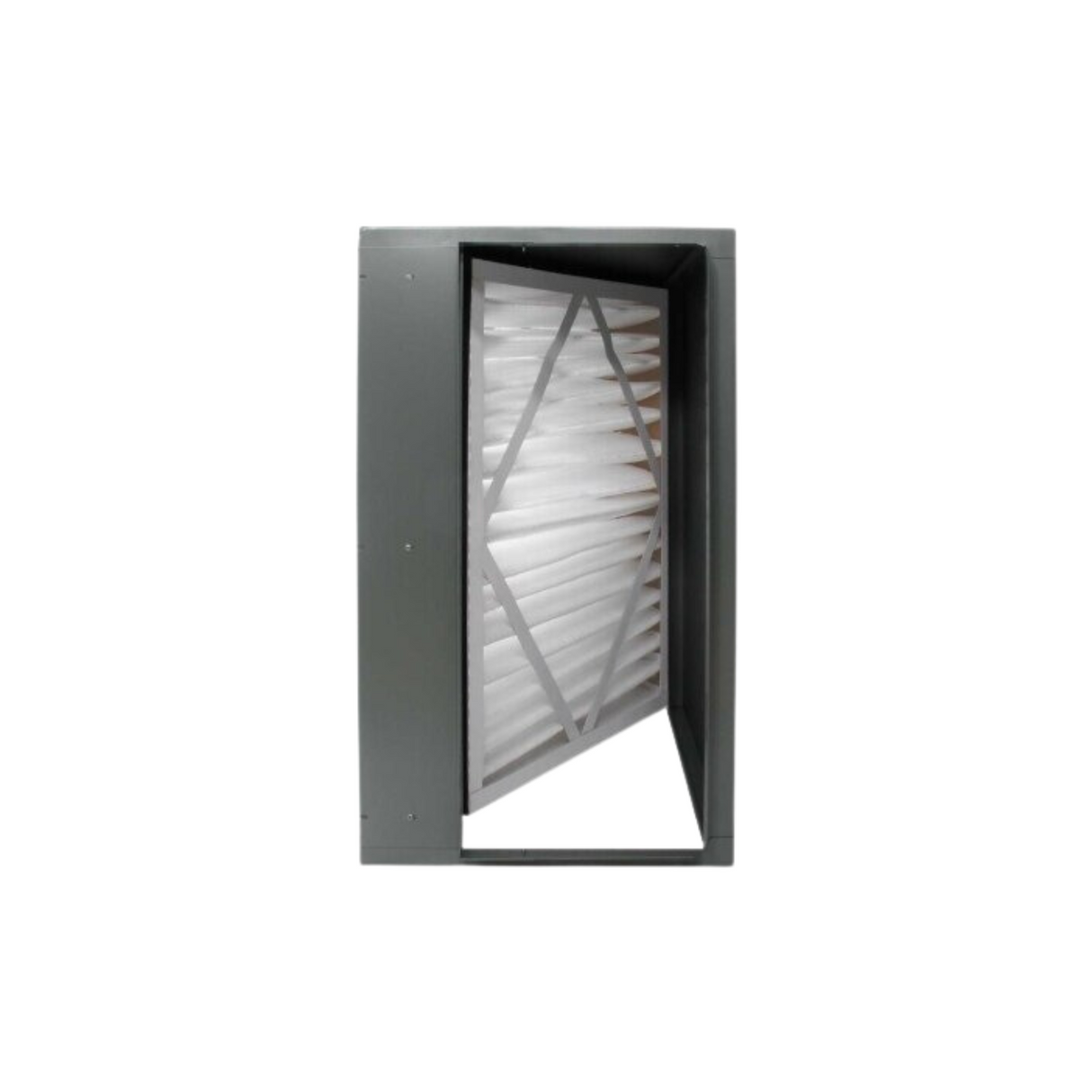

Rheem 84-25050-03 8 MERV Rating 2000 CFM 20" x 25" x 5" Media Air Cleaner

Designed for easy duct-mounted installation with central forced-air systems, our Electronic Air Cleaners will remove up to 95% of airborne particles such as dirt, dust, pollen and second-hand tobacco smoke. They also help to reduce harmful bacteria, viruses and dust mites that contribute to medical illnesses.

Features:

Quick and easy mounting for installations that require a 90 degree duct adapter.
Platinum metallic paint
Filters angled to further maximize surface area
Rugged cabinet construction

Specifications:

Manufacturer: Rheem
Manufacturer Part Number: 84-25050-03
Product Type: Media Air Cleaner
Air Opening Inlet Dimensions Depth: 24"
Air Opening Inlet Dimensions Height: 10"
Air Opening Outlet Dimensions Depth: 24"
Air Opening Outlet Dimensions Height: 10"
Duct Configuration: Right Angle
Housing Overall Outside Dimensions Depth: 25 5/8"
Housing Overall Outside Dimensions Height: 23 1/2"
Housing Overall Outside Dimensions Width: 15 1/2"
Maximum Rated Air Flow: 2000 CFM
Media Dimensions - Nominal: 20" x 25" x 5"
MERV Rating of Included Media: 8
Pressure Drop @ 1000 CFM: 7" W.C.
Pressure Drop @ 1200 CFM: 0.10" W.C.
Pressure Drop @ 1400 CFM: 0.14" W.C.
Pressure Drop @ 1600 CFM: 0.18" W.C.
Pressure Drop @ 1800 CFM: 0.22" W.C.
Pressure Drop @ 2000 CFM: 0.27" W.C.
Pressure Drop @ 600 CFM: 0.03" W.C.
Pressure Drop @ 800 CFM: 0.05" W.C.
Replacement Media: 54-25051-01
Dimensions: 16" x 28" x 26"
Weight: 23.0 lb.
