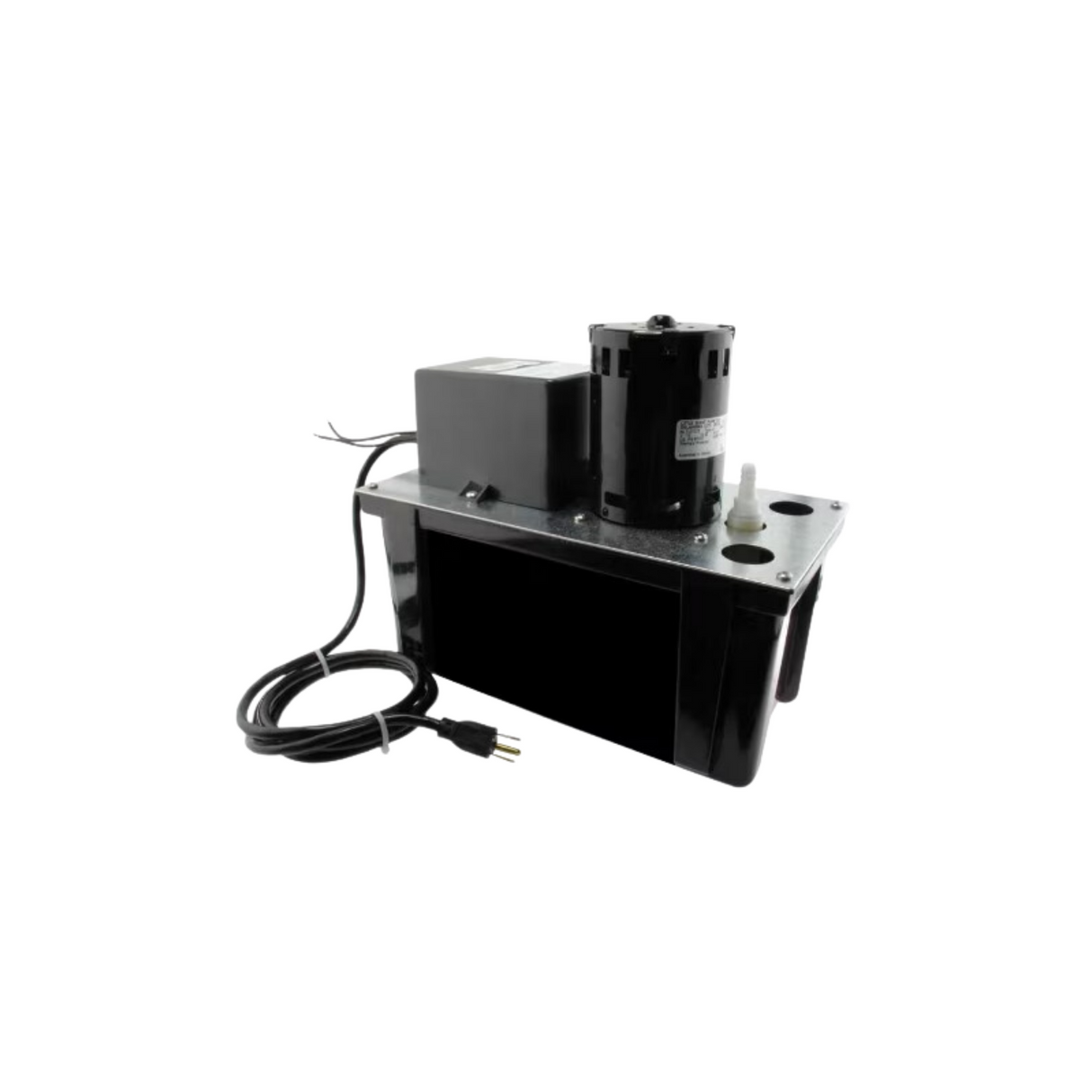

Rheem 84-VCL-24ULS 3/8" Discharge Tube Inside Diameter Non-Continuous Condensate Pump
Rheem 84-VCL-24ULS 3/8" Discharge Tube Inside Diameter Non-Continuous Condensate Pump is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
The Condensate Pump's robust design is ideal for removing condensation from high-efficiency oil or gas-fired furnaces and condensing boiler equipment. The device features a stainless steel motor shaft to withstand the elements.
Features:
Features a stainless steel motor shaft, ABS tank, and galvanized steel tank cover
Discharge is a 1/4 in. NPT or 3/8 in. O.D. barbed tubing adapter
Two top inlets provided
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 84-VCL-24ULS
Product Type: Condensate Pump
Configuration: Integral Pump-Tank
Discharge Tube Inside Diameter Size: 3/8"
Duty Rating: Non-Continuous
Electrical Connection: Cord connected
Flow Rate at 1 ft. Head: 270 GPH
Flow Rate at 3 ft. Head: 260 GPH
Flow Rate at 5 ft. Head: 250 GPH
Flow Rate at 9 ft. Head: 210 GPH
Input Current: 2.50 A
Input Frequency: 60 Hz
Input Voltage: 120 V
Maximum Water Temperature: 120 Degrees F
Power Cord Length: 6'
Pump Type: Centrifugal
Safety Switch: Yes
Shut-off Head: 24'
Shut-off Head: 10.40 PSI
Tank Capacity: 1 Gallon
Tubing: Not Included
Dimensions: 6.8" x 13.1" x 11.5"
Weight: 8.1 lb.
