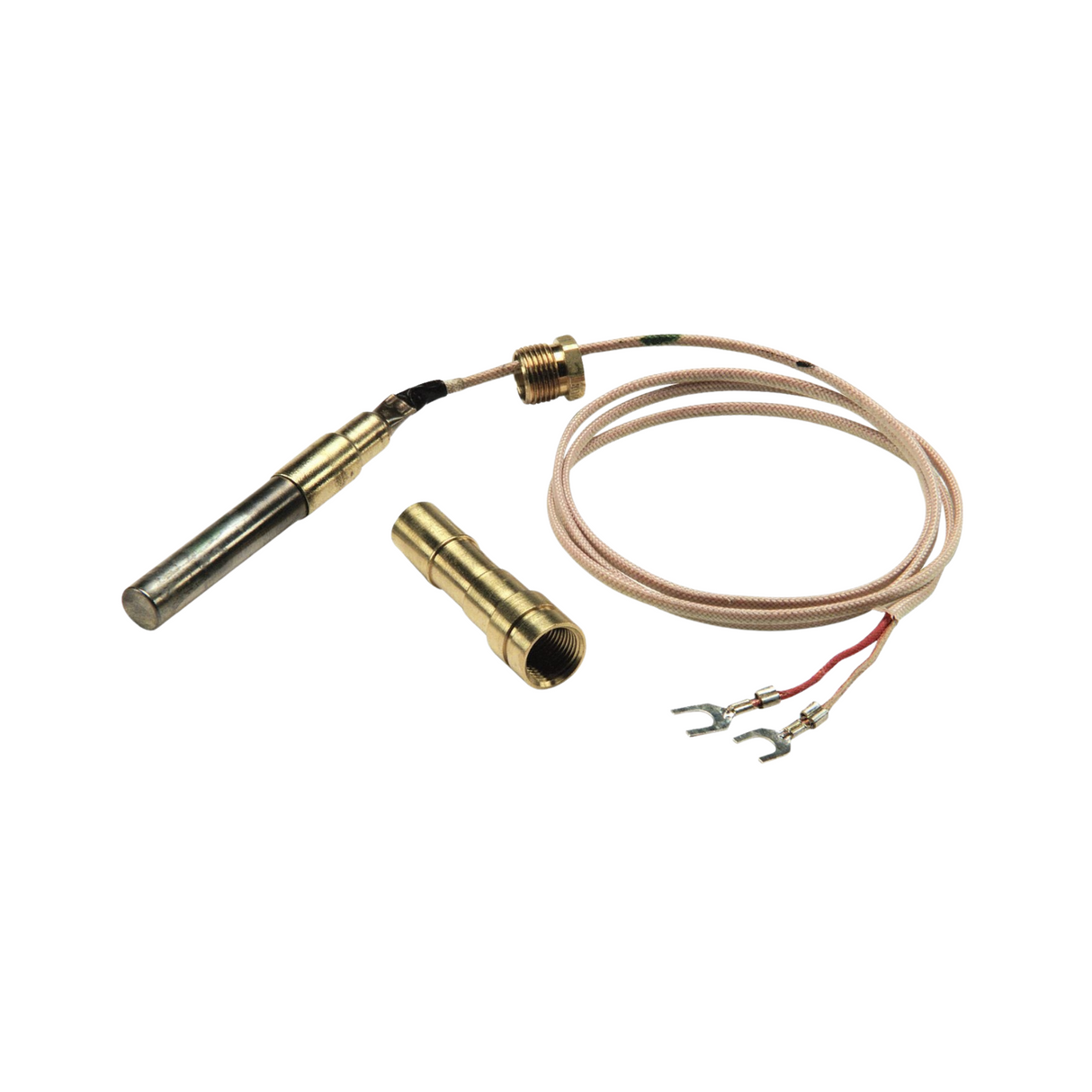

Robertshaw 1950-001 Thermopile, Pilot Generator

The Robertshaw® 1950 and 1951 Series Thermopiles lead the industry for gas appliance applications. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited. Thermopiles are placed in gas applications to detect the existence of a flame for safety purposes by shutting off the potential gas flow to a burner. A thermopile is the assembly of many thermocouples to increase the millivolt output.

Features:

Easy burner installation with attached threaded nut
Stainless steel outer jacket for long life and resistance to heat blistering
Combination of copper and nickel alloys for good electrical conductivity
Mica washer to insulate from shorting conditions
Tinnerman clip included
Various lengths available for multiple applications

Specifications:

Manufacturer: Robertshaw
Manufacturer Part Number: 1950-001
Series Application: 1950 & 1951 Thermopiles
Lead Length: 36"
Connection Type: Two Lead
Electrical Rating: 250mV - 750mV AC
Gas Type: LP/NG
Length: 36"
Special Information: Two Lead Connection
Tip Style: CP-2
Type: Pilot Generator
Voltage: 250mv to 750mv
