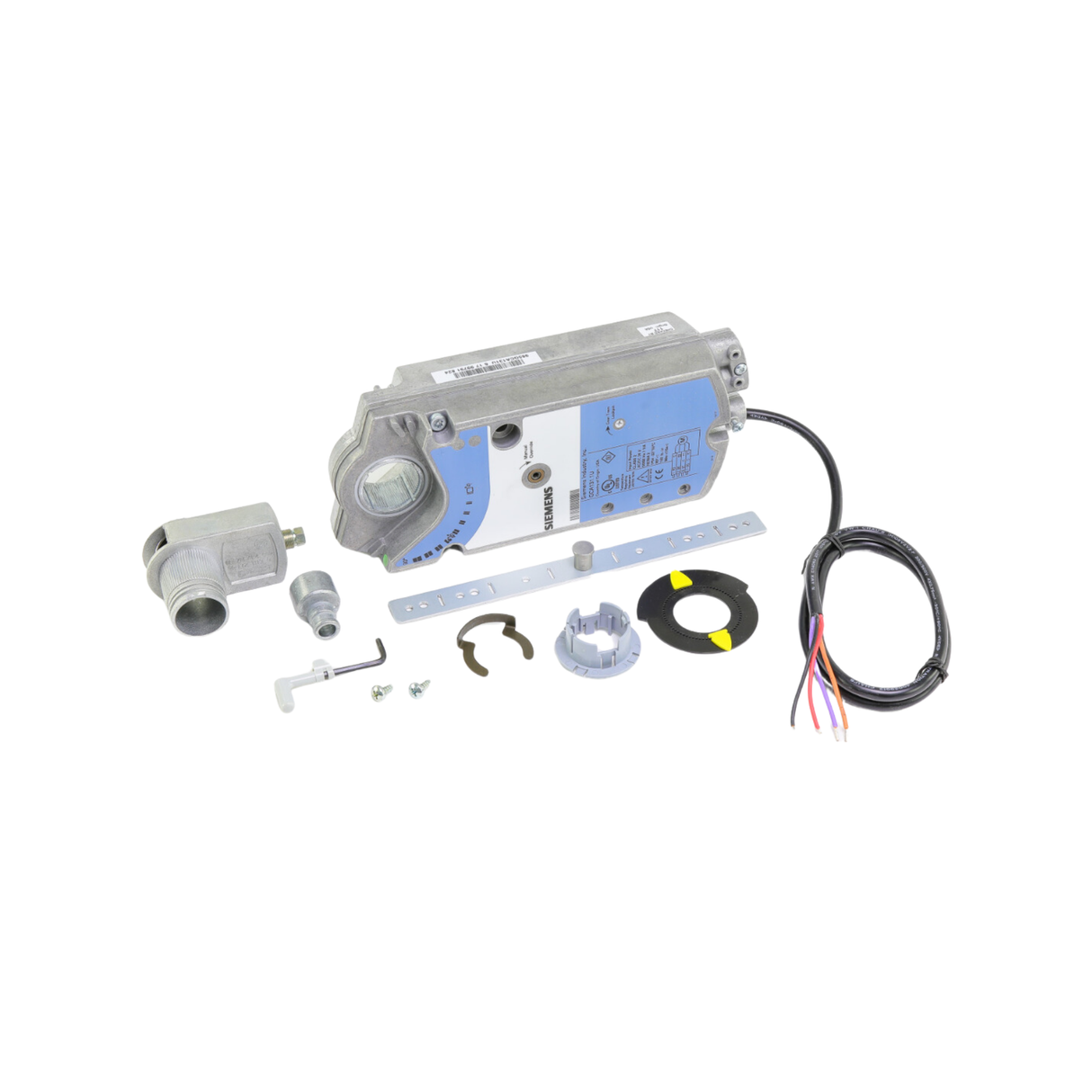

Siemens Building Technology GCA131.1U 95% R.H, 50/60 Hz, 3' Cable Length, Control Damper Actuator
Siemens Building Technology GCA131.1U 95% R.H, 50/60 Hz, 3' Cable Length, Control Damper Actuator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Siemens Building Technology GCA131.1U 95% R.H, 50/60 Hz, 3' Cab...
Description
Description
A full range of spring return actuators, from 20 lb.-in. to 160 lb.-in., make Open Air Damper Actuators the ideal OEM choice for economizer damper, roof top unit and air handling unit control. The 35 lb.-in. GPC Series actuator provides long lasting economizer control in a small footprint.
Specifications:
Manufacturer: Siemens Building Technology
Manufacturer Part Number: GCA131.1U
Product Type: Actuator
Control or Fire/Smoke Type: Control Damper
Torque: 160 Pounds to Inches
Position Feedback: No
Positioning Time: 90 Seconds (Open), 15 Seconds (Close)
Power Consumption: 7VA/5W (Running), 5VA/3W (Holding)
Operation Ambient Humidity: 95 Percent R.H.
Angular Rotation: 90 Degrees
Frequency: 50/60 Hertz
Cable Length: 3'
Housing Material: NEMA 2, Die-Cast Aluminum Alloy Enclosure, IP54 according to EN 60 529
Degree of Protection: IP54
Dimensions: 13.1" x 6.4" x 4.65"
Weight: 5.53 Lb
Tech Sheet
