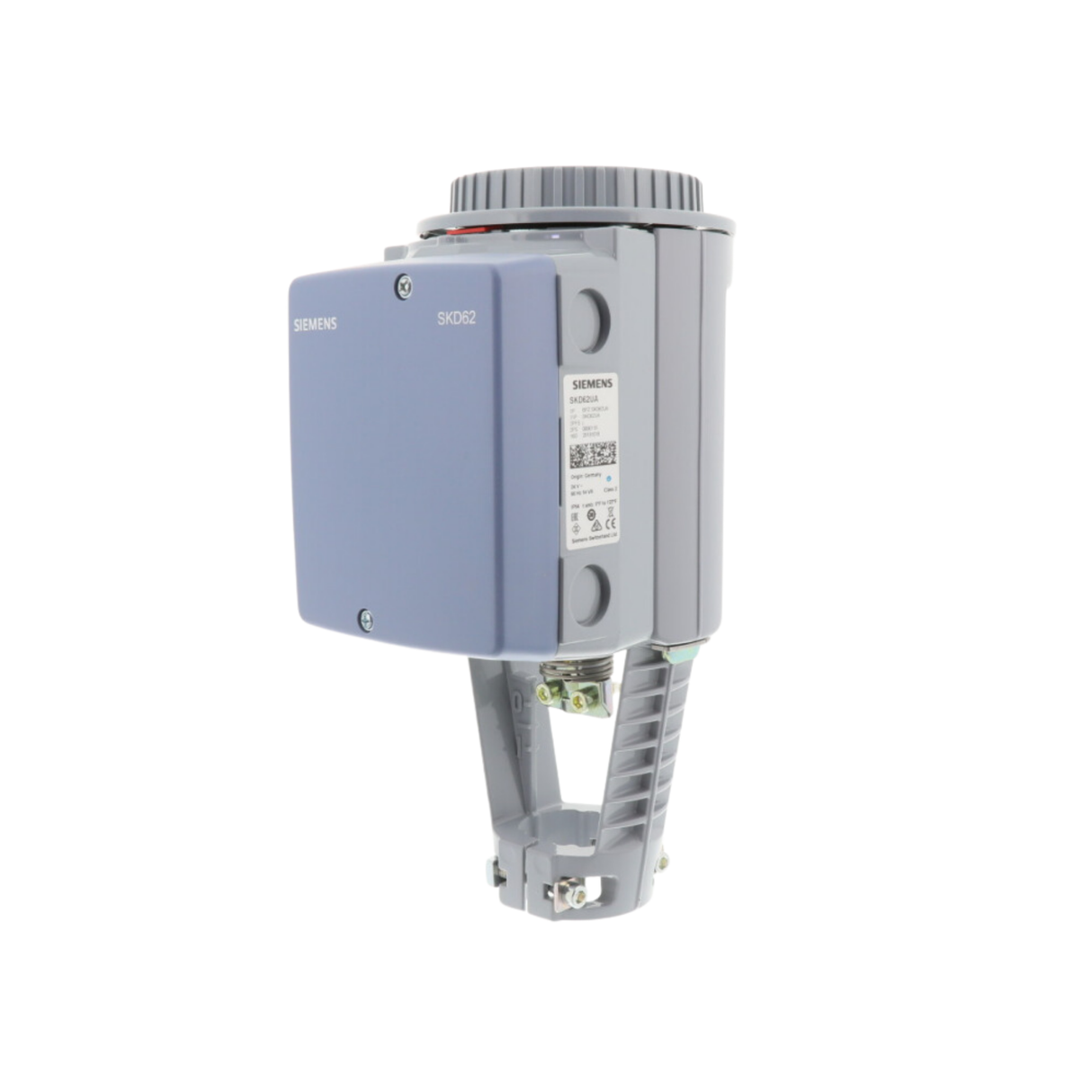

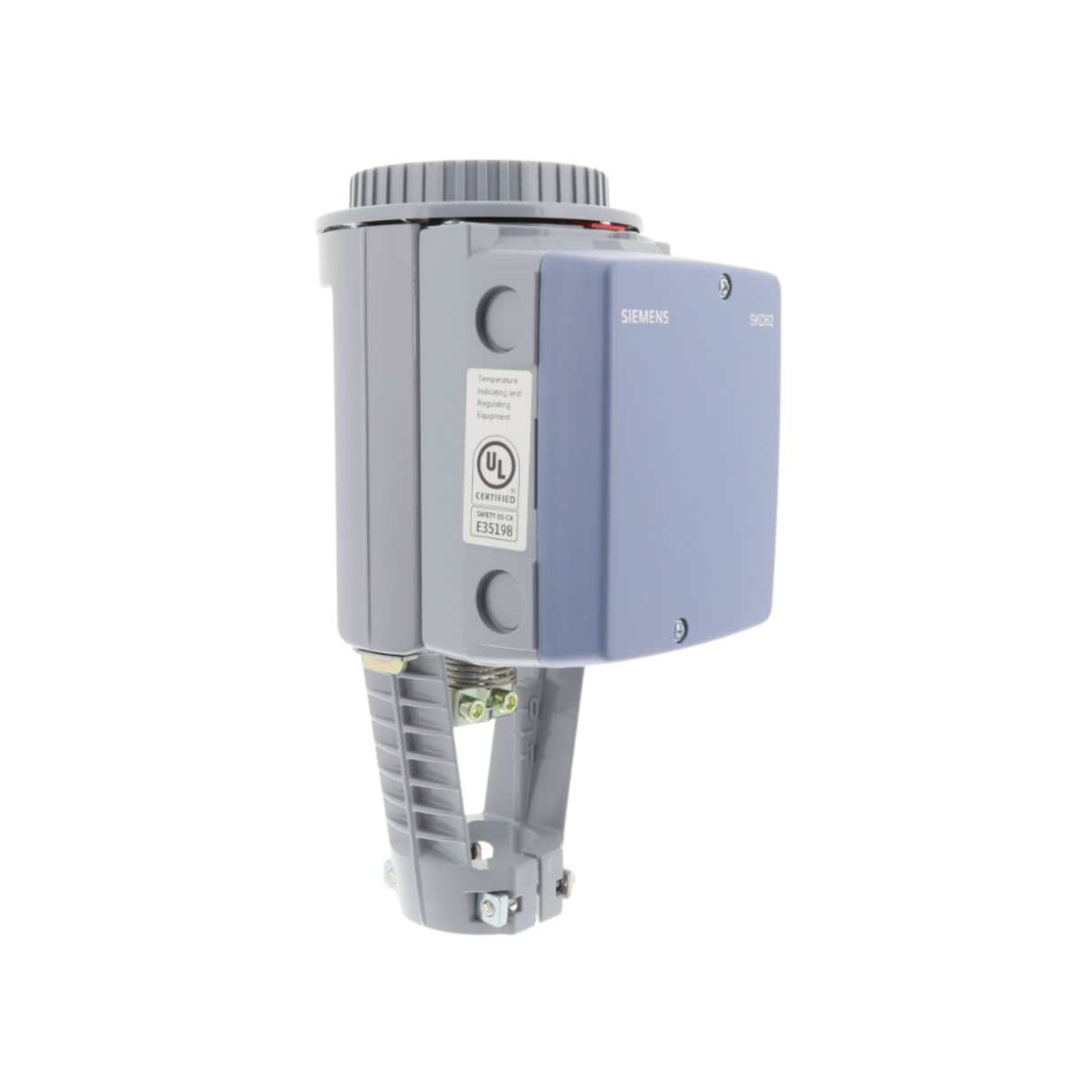

Siemens Building Technology SKD62UA Flowrite Electro-Hydraulic, Actuator

Features:
Requires a 24 VAC supply to provide a 0 to 10 VDC or 4 to 20 mA proportional control signal to the valve
Normally closed and 3-way upper port nominal force is 225 lb-in (1000N)
normally open and 3-way bypass port is 258 lb-in (1150N)
Automatic stroke calibration, manual override, die-cast aluminum housing, and spring return functionality
Selectable operating direction (direct or reverse acting), adjustable start and span, stroke limit control, choice of linear or equal-percentage flow characteristics

Specifications:

Manufacturer: Siemens Building Technology
Manufacturer Part Number: SKD62UA
Product Type: Actuator
Type: Flowrite Electro-Hydraulic
Dimensions: 7.3" x 8.25" x 13.5"
Weight: 9.39 Lb

Catalog Page
