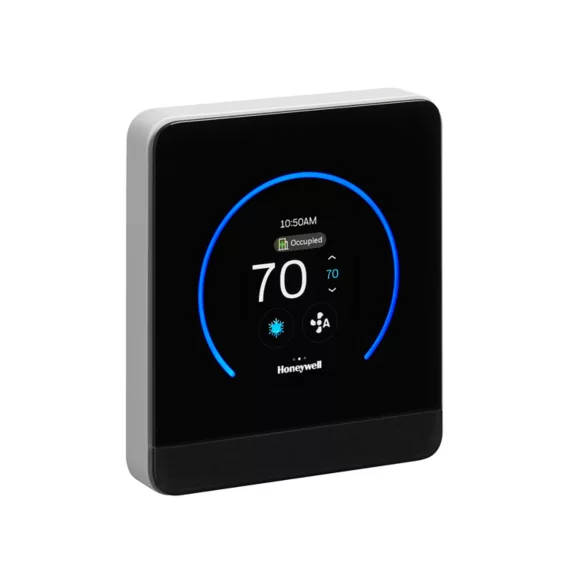

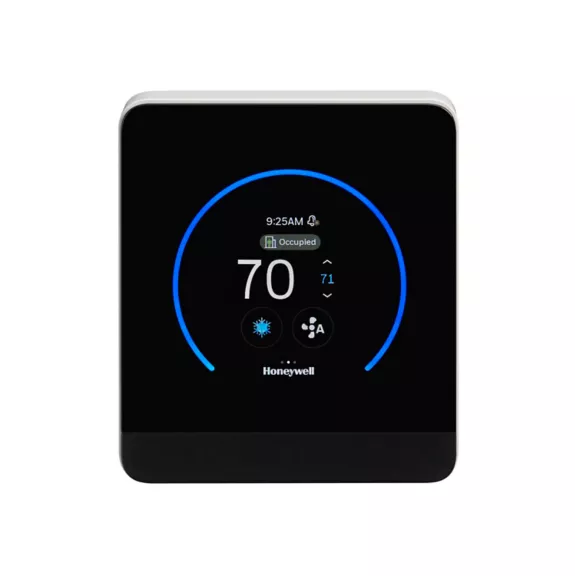

Honeywell TC300B-G 24 VAC 50/60 Hz Commercial Thermostat
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Honeywell TC300B-G 24 VAC 50/60 Hz Commercial Thermostat
Description
Description
Delight your occupants with the TC300 thermostat that’s lovely to behold, simple to use, and smart at adapting to their comfort preferences.
With hundreds of hours of testing, our latest commercial thermostat is designed to make everyone’s day easier – from fast, guided setup, to connected facility-wide oversight and control.
Features:
Flexible configurations for nearly every 2-pipe and 4-pipe fan coil application
Hybrid changeover mode ensures greater comfort for 2-pipe systems during system transitions
On/off, floating, modulating, or 6-way valves
Multi-speed or variable speed fan
Energy saving supply-air temperature control using ASHRAE guideline 36-2021, Sec. 5.22
Dehumidification with reheat option
Building automation integration via BACnet® MS/TP or MODBUS
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: TC300B-G
Product Type: Commercial Thermostat
Voltage Rating: 24 VAC
Frequency Rating: 50/60 Hz
Working Voltage Range: 20-30 VAC
Maximum Power Consumption: 8.5 VA @ 24 VAC (355mA @ 24VAC)
Operating Temperature: 32 to 122 Degrees F
Operating Humidity: 10 to 90% Relative Humidity, Non-Condensing
Dimensions: 4.95" x 5" x 2.3"
Weight: 0.78 lb.
