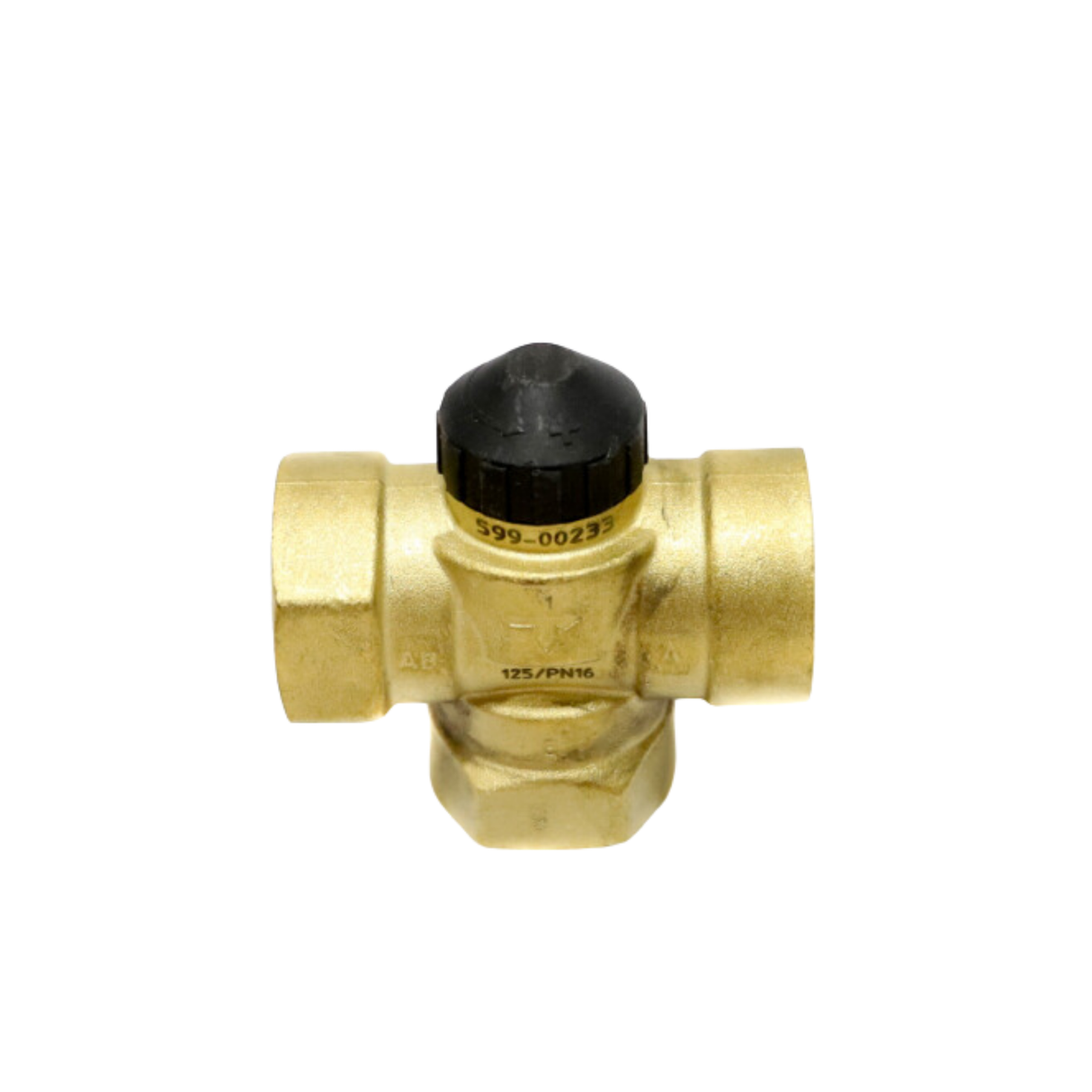

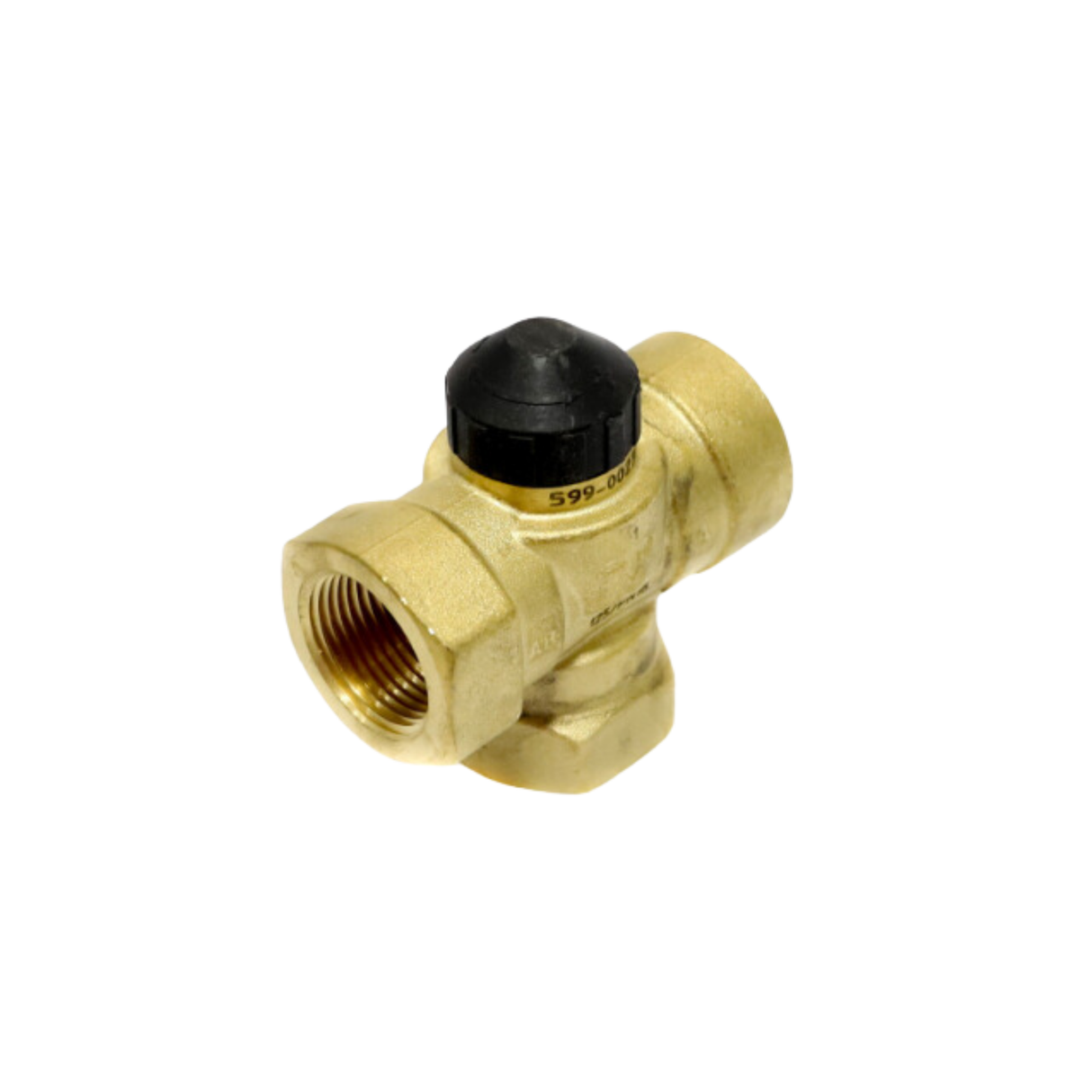

Siemens Building Technology 599-00233 NPT Connection, 7 CV, 0.1" Stroke, Linear 3-Way Control Valve

The Siemens 599 Series zone valves work with any SFA/P Series or SSA/P Series electric actuator. The actuators provide two-position, three-position, or 0-10 VDC control. Typical applications include hot or chilled water for zones with radiators, floor heating via manifolds, fan coil units, cooling ceilings, wall-mounted boilers, and VAV applications.

Features:
Direct-coupled universal bonnet
Direct-coupled installation without tools
Manual override with 3mm hex wrench
Visual position indication

Specifications:

Manufacturer: Siemens Building Technology
Manufacturer Part Number: 599-00233
Product Type: Control Valve
Connection Type: NPT
Valve Flow Co-Efficient: 7 CV
Stroke: 0.1" (2.5 mm)
Body Pattern: 2-way, 3-way diverting
Flow Characteristic: Linear
Leakage Rating: ANSI Class III (0.1% of rated capacity)
Body Rating: ANSI Class 125
Action: Two-way valves are stem-up-to-open; three-way valves are diverting; normal position is determined by choice of actuator
Operating Temperature: 41 to 122 Degree Fahrenheit
Operating Humidity: 0 to 90% RH Non-Condensing
Enclosure Rating: NEMA 1 (Indoor only)
Dimensions: 5.3" x 4" x 2.95"
Weight: 1.22 Lb
