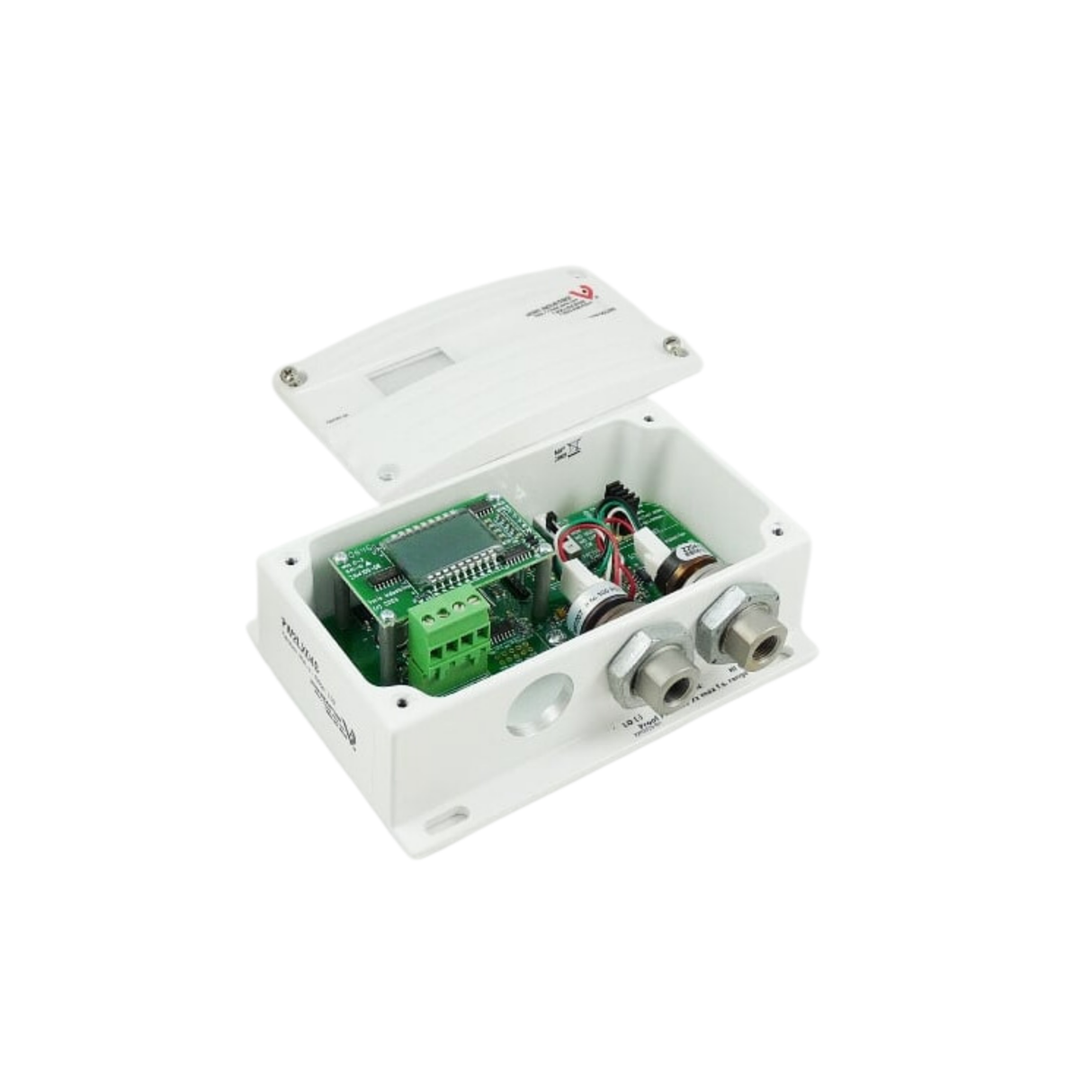

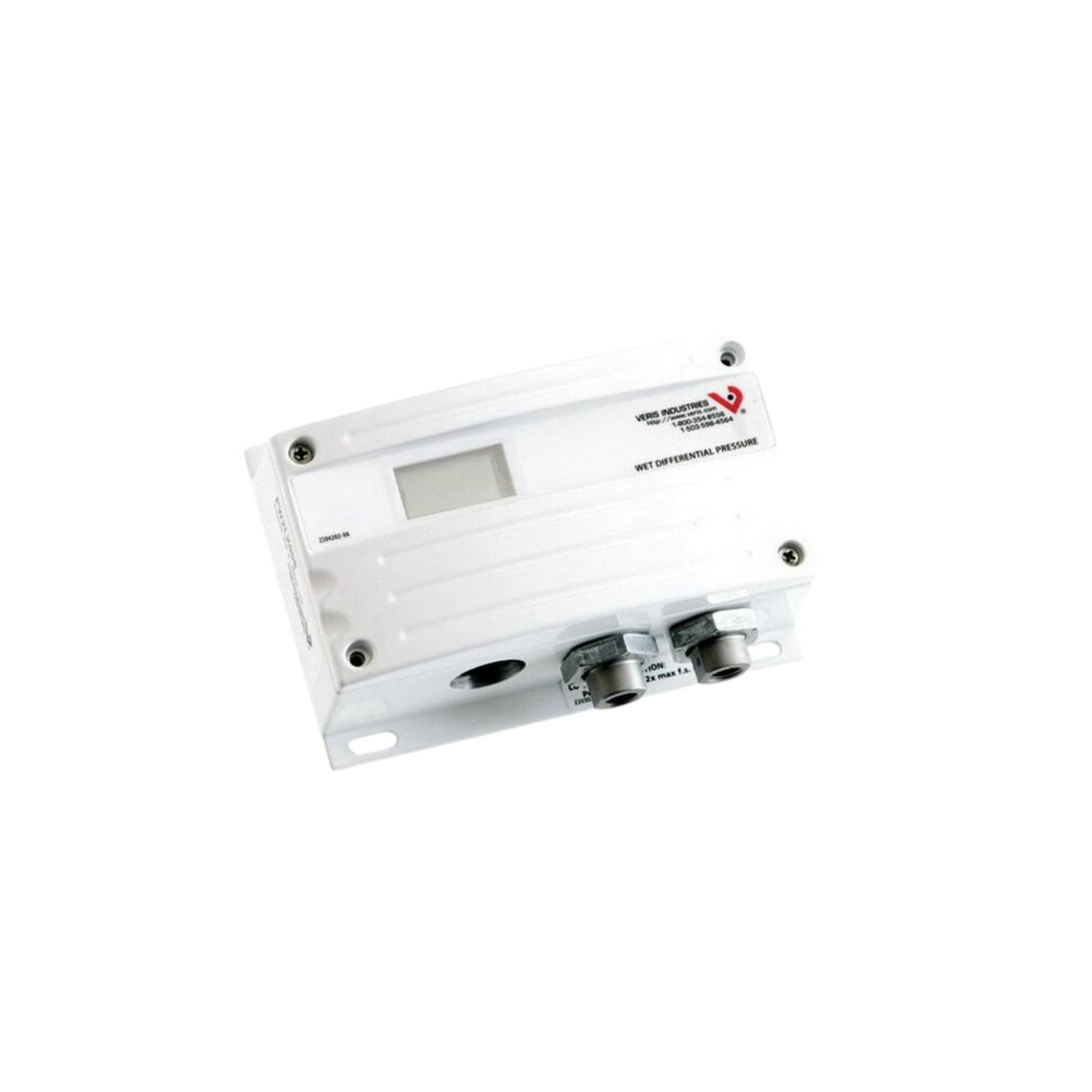

Veris Industries PW2XX03S Wet Differential Pressure Sensor
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Features:
The jumper-selectable output switch for normal (4 to 20 mA) or reverse (20 to 4 mA) operation provides application flexibility
Rugged, die-cast enclosure provides NEMA 4 sealing
Selectable differential units: psid or bard
Dual sensor design for improved overpressure tolerance, eliminates the requirement for a bypass valve assembly in most applications
Jumper-controlled electronic surge dampening for high stability
Pushbutton zero calibration - no trim pots to adjust, maintain accuracy and reduce callbacks with automatic zero calibration
2-wire transmitter output
User-selectable output
2 times of maximum full scale range proof pressure
5 times of maximum full scale range burst pressure
Specifications:
Manufacturer: Veris Industries
Manufacturer Part Number: PW2XX03S
Product Type: Wet Differential Pressure Sensor
Supply Voltage DC Range: 12-24 VDC
Pressure Measurement Range: 0-5 PSI, 0-10 PSI, 0-25 PSI, 0-50 PSI
Temperature Rating: 14 to 130 Degrees F
Operating Humidity: 0 to 90% RH
Electrical Wiring: 2 Wires
Mounting: Panel
Enclosure: NEMA 4
Dimensions:6.6" x 6.05" x 3.05"
Weight: 1.77 lb.
