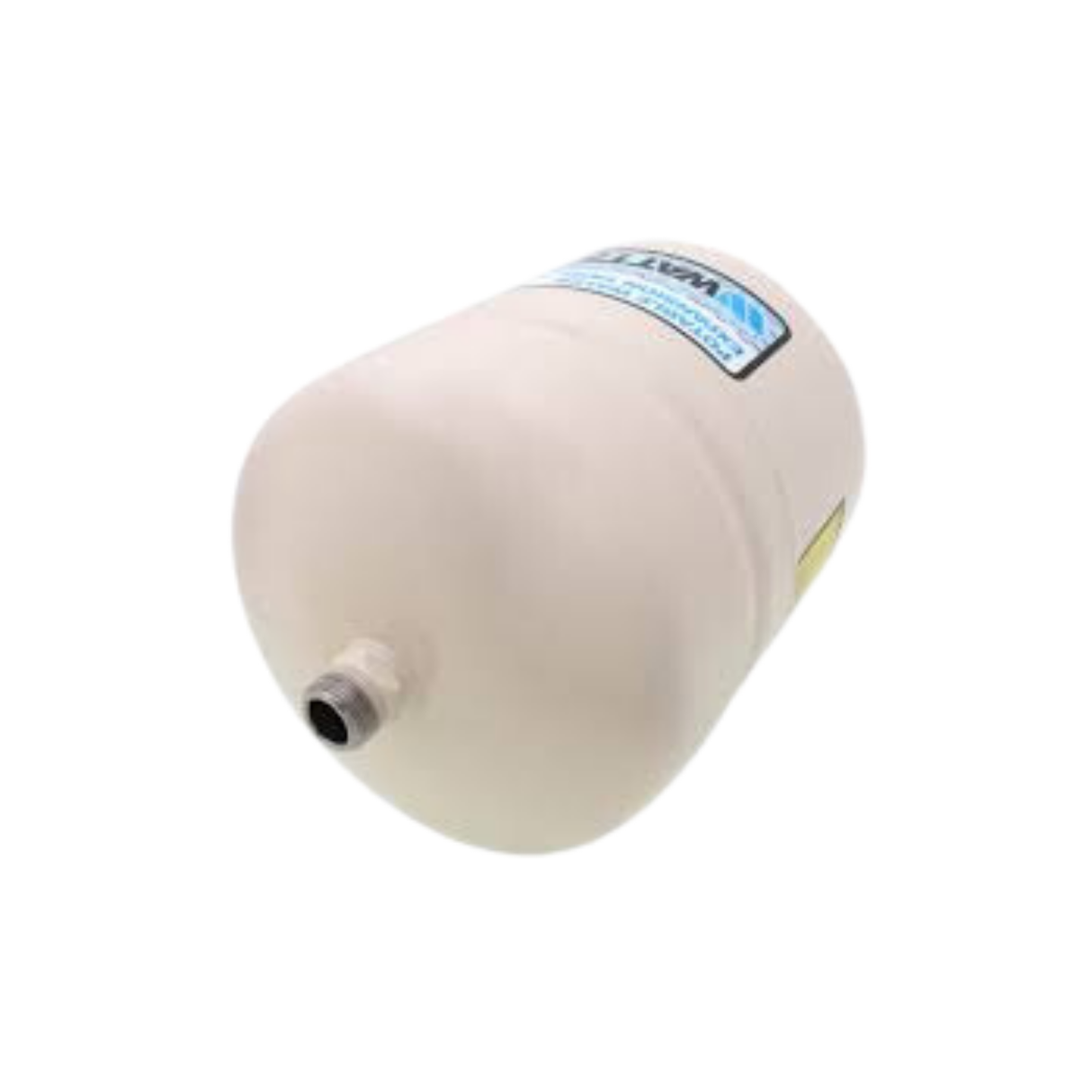

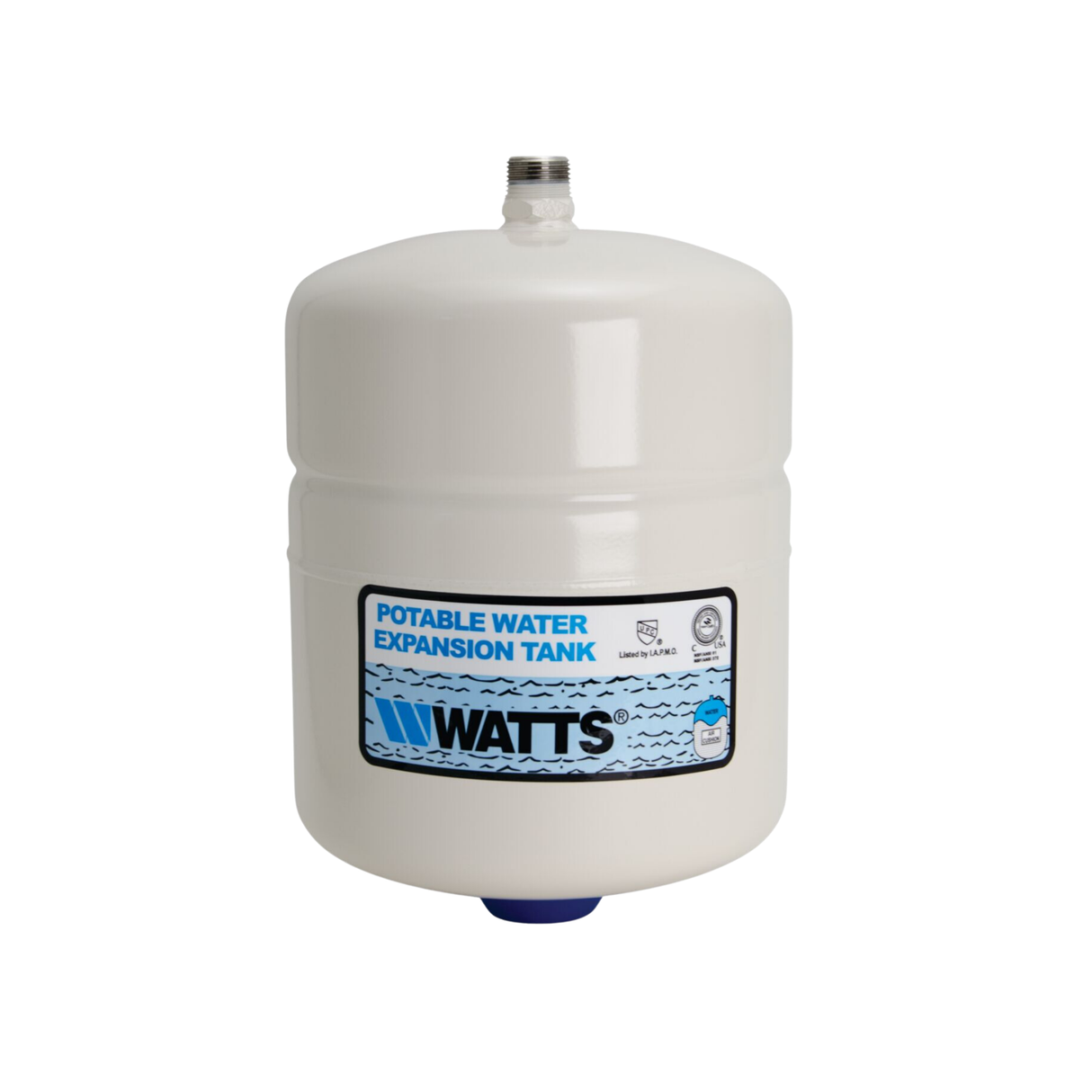

Watts 0067371 3/4" Male NPT 10 1/2" Diameter 150 PSI Potable Water Expansion Tank

This potable water expansion tank is used on gas, oil, or electric, direct-fired, residential water heater and hot water storage tank applications to absorb the increased volume of water created by thermal expansion. It also maintains balanced pressure throughout the water supply system by keeping system pressure below the T&P relief valve setting. This field-adjustable steel tank is air pre-charged at 20 psi, volume 4.5 gallons, designed with an FDA-approved polypropylene liner and Butyl rubber diaphragm, copper-lined steel, and 3/4 inch male inlet connection. An expansion membrane prevents air-to-water contact in the tank ensuring a long system life. IAPMO listed and ANSI/NSF 61 certified. The maximum pressure is 150 psi (10 bar).

Features:

Prevents over-pressure caused by thermal expansion
Air pre-charge at 20 psi
3/4 IN male connection
Butyl rubber diaphragm

Specifications:

Manufacturer: Watts
Manufacturer Part Number: 0067371
Product Type: Potable Water Expansion Tank
Connection Size: 3/4" Male NPT
Diameter: 10 1/2"
Maximum Operating Temperature: 200 Degrees F
Maximum Working Pressure: 150 PSI
Tank Acceptance: 3.42 Gallons at 20 PSI
Mount Type: Pipe
Dimensions: 11.35" x 11.6" x 15.95"
Weight: 22.0 lb.
