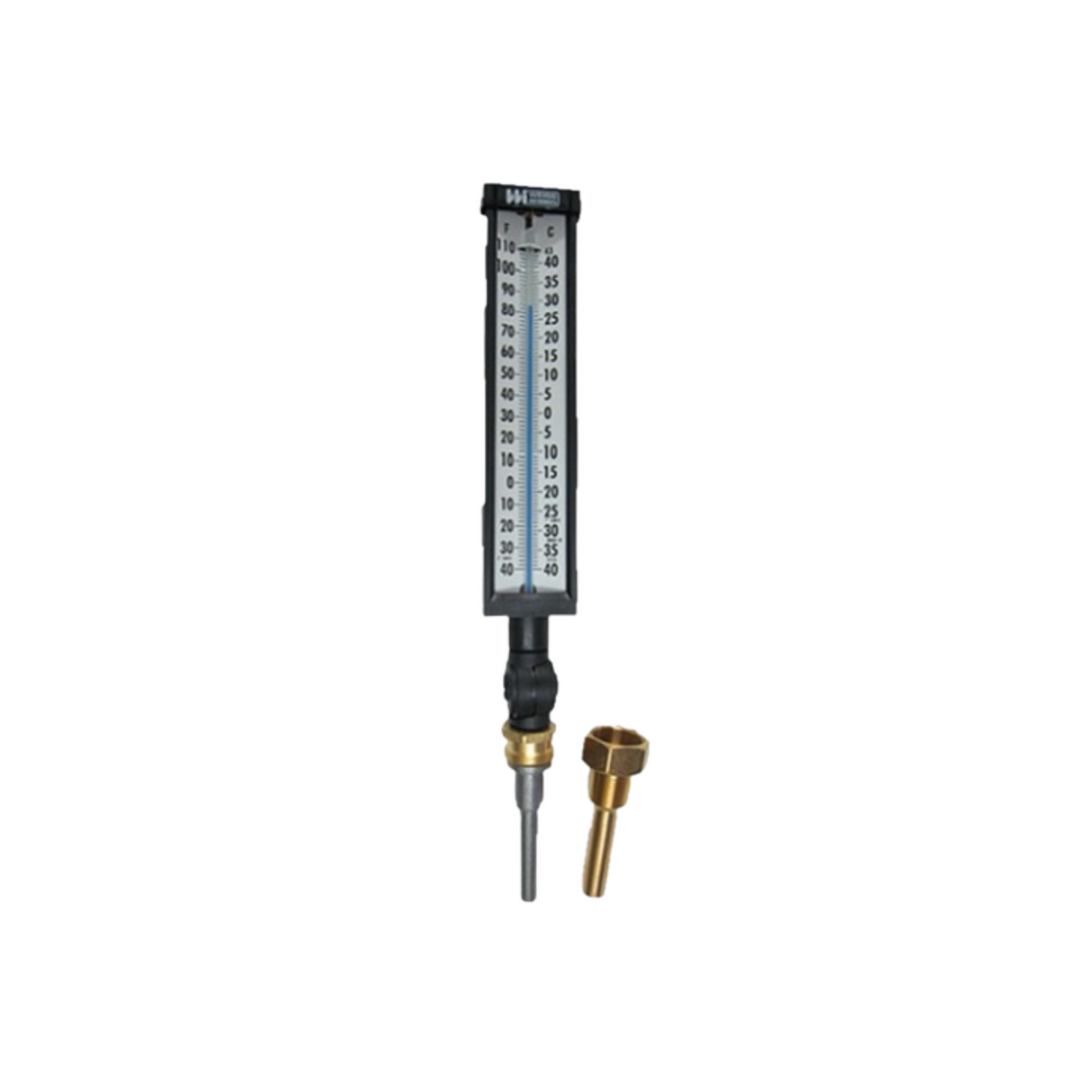

Weiss Instruments 9VU35-240 Industrial Angle Thermometer

Weiss 9" Scale Vari-angle Thermometers are the industry standard for HVAC applications. Union connection stem is offered for pipe-line applications, for chilled and hot water installations with a 3-1/2" stem. Perforated 6" stem with a mounting flange is for air duct use. Blue Liquid is standard.

Specifications:

Manufacturer: Weiss Instruments
Manufacturer Part Number: 9VU35-120F
Application: HVAC MECHANICAL
Composition: MECHANICAL ASSEMBLY
Cubic Measurement: 0.1042
Degree Divisions: 2°
Length: 20"
Height: 3"
Width: 3"
Dimensional Weight: 2 lbs.
Stem Length: 3 1/2"
Probe Length: 3 1/2"
Housing Material: VALOX
Lens Material: GLASS
Size: 9"
Mounting: THERMOWELL
NSF Certified: No
Operating Temperature Range: 30°F to 240°F (-1.1°C to 115.5°C)
Maximum Working Temperature: 240°F (115.56°C)
Temperature Accuracy: 0.01
Temperature Range: 30°F to 240°F (-1.11°C to 115.56°C)
Sensor Type: EXPANSION FLUID
Prop 65: Yes
