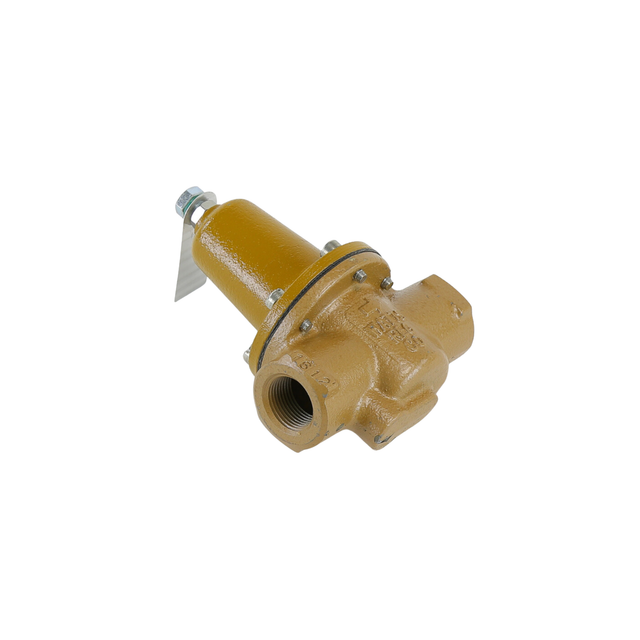

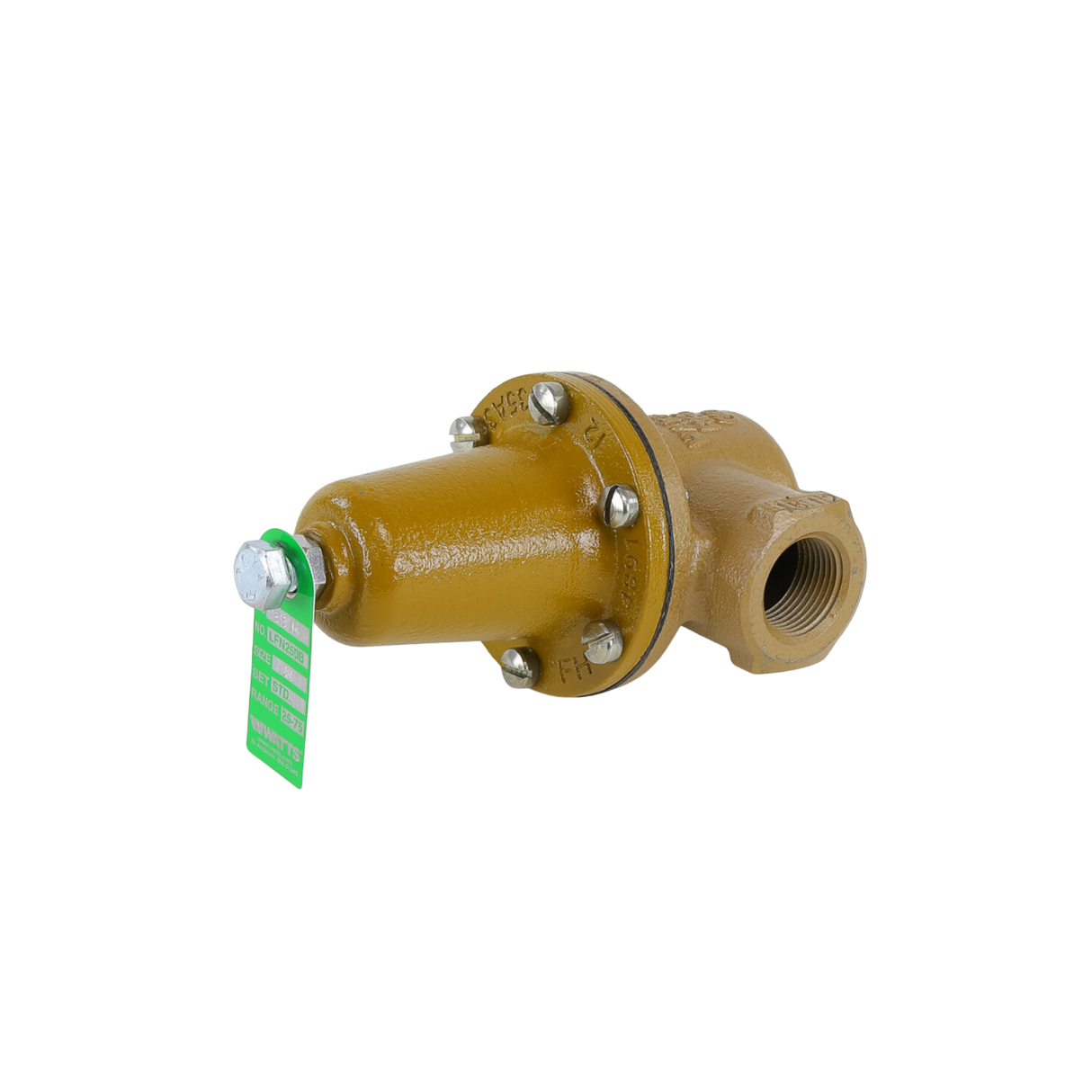

Watts 0121243 LFN250B Series, 3/4" NPT Female Connection, 250 PSI Max, Iron, Pressure Reducing Valve

This 3/4 inch lead free water pressure reducing valve is used in residential applications to reduce incoming domestic water pressure to protect plumbing components and reduce water consumption. It consists of a iron body with 3/4 NPT female inlet and outlet connections, stainless steel seat, integral strainer, and thermal expansion bypass feature. All parts are quickly and easily serviceable without removing the valve from the line. The reduced pressure is set at 50 psi (345 kPa) and maximum working pressure is 250 psi (17.2 bar).

Features:
Lead free construction
Bypass feature controls thermal expansion pressure
High temperature resisting diaphragm for hot or cold water
Integral stainless steel strainer

Specifications:

Manufacturer: Watts
Manufacturer Part Number: 0121243
Product Type: Pressure Reducing Valve
Adjustable Reduced Pressure Range: 25 to 75
Adjustable Reduced Pressure Range: 1.8 to 5.2 BAR
Body Material: Iron
Inlet Connection Size: 3/4"
Inlet Connection Type: Female Threaded
Inlet Thread Type: NPT
Lead Free: YES
Maximum Operating Temperature: 160 Fahrenheit
Maximum Working Pressure: 17.20 BAR
Maximum Working Pressure: 250 PSI
Minimum Temperature: 33 Fahrenheit
Outlet Connection Size: 3/4"
Outlet Connection Type: Female Threaded
Outlet Thread Type: NPT
Series: LFN250B
Dimensions: 8.8" x 6.55" x 3.6"
Weight: 3.55 lb

Tech Sheet
