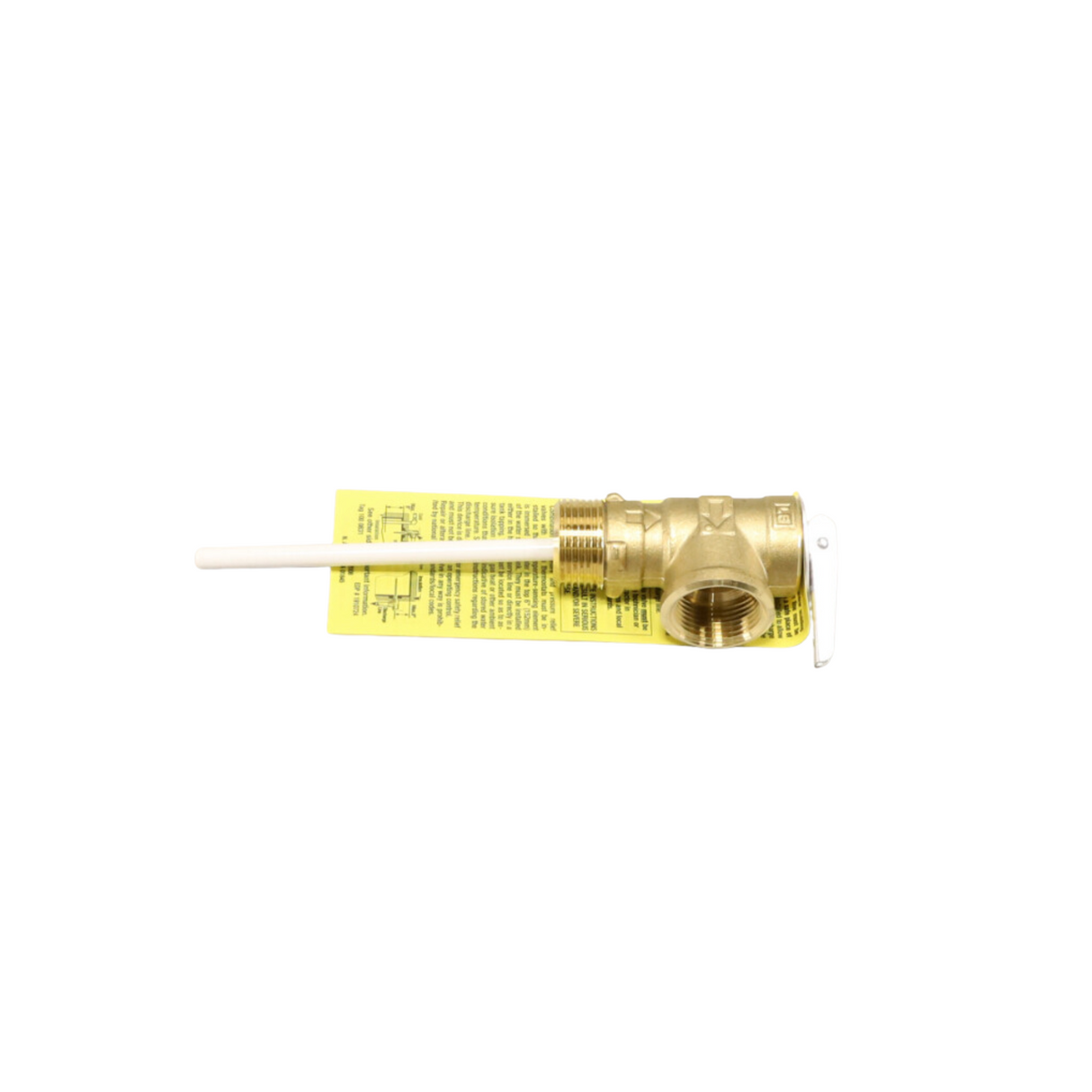

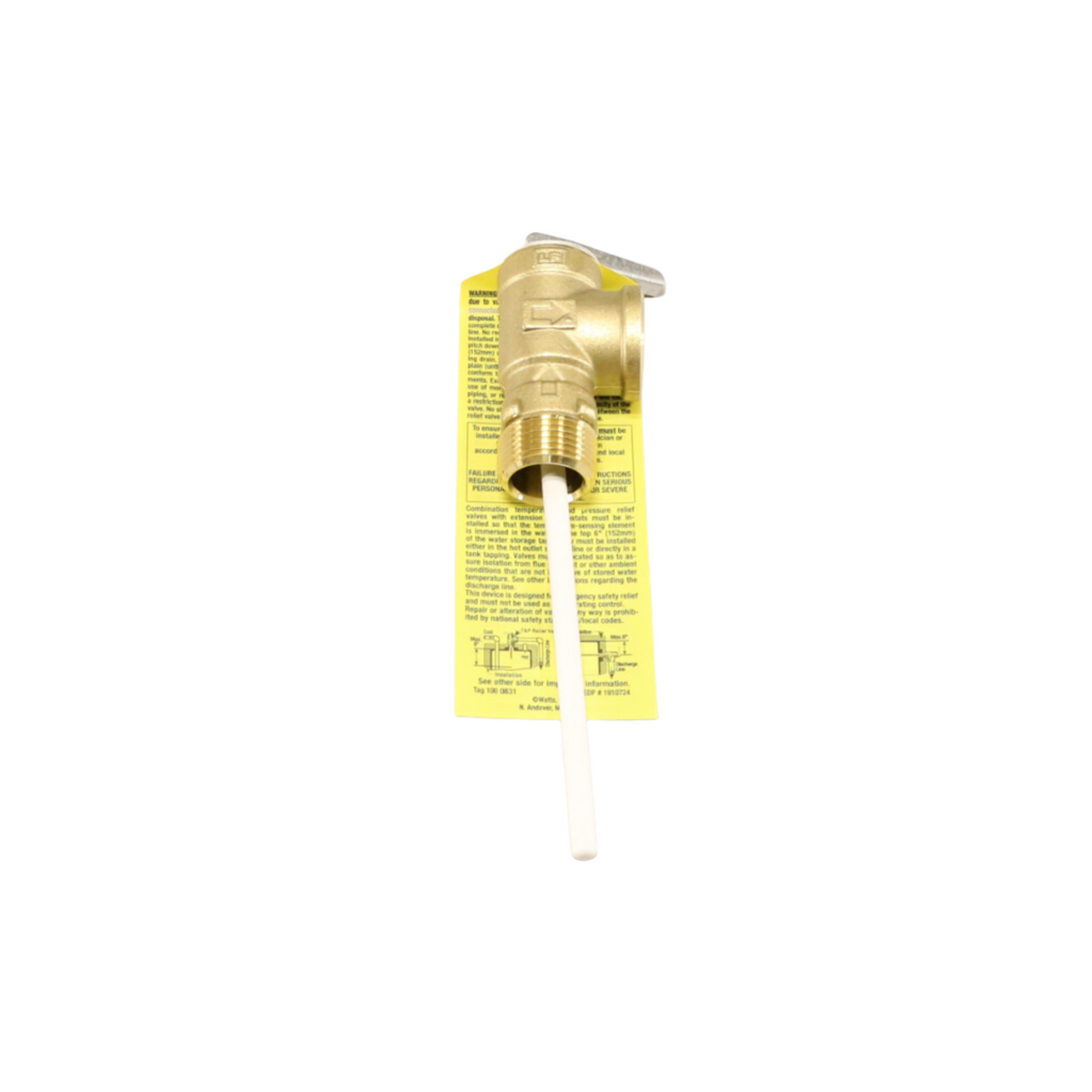

Watts 0121342 LF100XL Series, 3/4" x 3/4" NPT Connection, 94 PSI Max, 1 1/8" Shank Length, 200000 BTU/hr, Relief Valve

This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU per hour. This two in one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating, and test lever. The temperature relief is 210 degrees (99 degrees C) and the pressure relief is set at 125 psi (8.6 bar).

Features:
ASME rated and CSA listed
3/4 IN male by 3/4 IN female NPT connection
Protects against excessive temperature and pressure during emergency conditions
Lead free copper alloy body construction

Specifications:

Manufacturer: Watts
Manufacturer Part Number: 0121342
Product Type: Relief Valve
Body Material: Lead Free Copper Silicon Alloy
Inlet Connection Size: 3/4"
Inlet Connection Type: Male Threaded
Inlet Thread Type: NPT
Lead Free: YES
Maximum Temperature: 210 Fahrenheit
Maximum Working Pressure: 94 PSI
Outlet Connection Size: 3/4"
Outlet Connection Type: Female Threaded
Outlet Thread Type: NPT
Pressure Relief Setting: 125 PSI
Pressure Steam Discharge Capacity: 200,000 BTU/hr
Protection Type: Temperature And Pressure
Series: LF100XL
Shank Length: 1 1/8"
Temperature Relief-Fahrenheit: 210
Temperature Steam Discharge Capacity: 105,000 BTU/hr
Thermostat Material: Copper
Thermostat Probe Length: 4"
Dimensions: 2.55" x 8" x 1.5"
Weight: 0.49 lb
