Watts 0121627 250 PSI Max Pressure, 1/2" Inlet x 1/2" Outlet Size, 0-250 PSI Range, Relief Valve
Watts 0121627 250 PSI Max Pressure, 1/2" Inlet x 1/2" Outlet Size, 0-250 PSI Range, Relief Valve is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Watts 0121627 250 PSI Max Pressure, 1/2" Inlet x 1/2" Out...
Description
Description

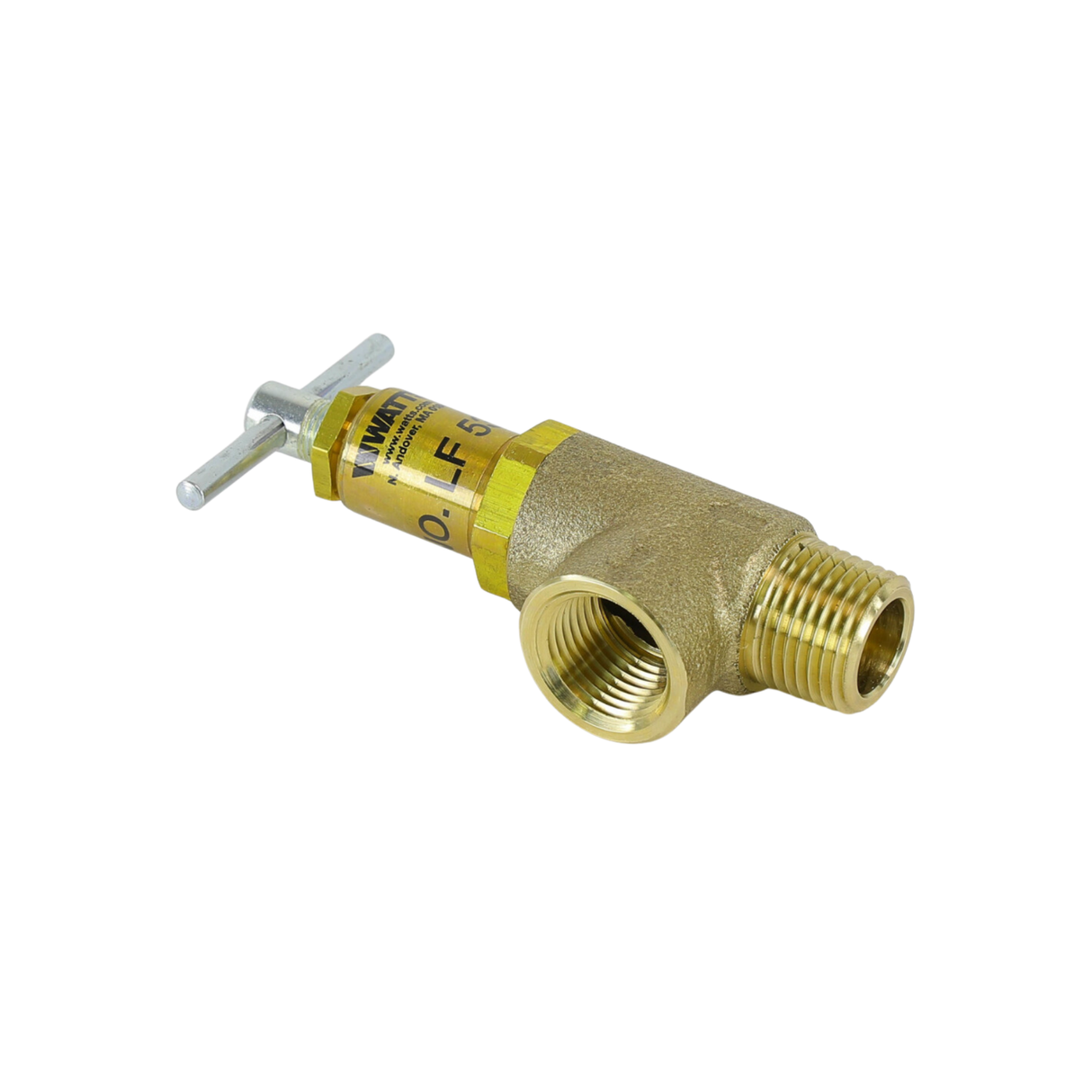

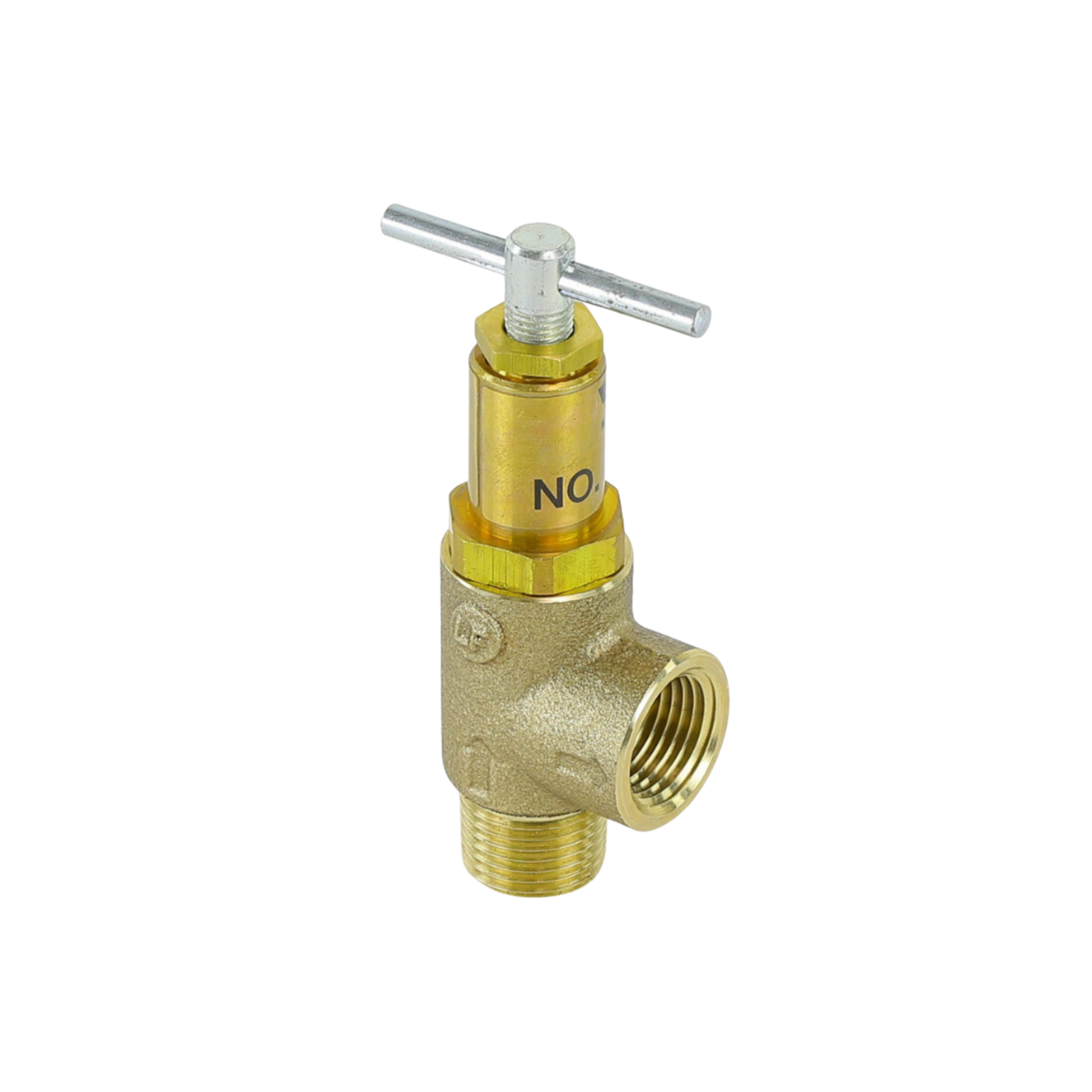

This lead free 1/2 inch bypass control relief valve is used in commercial, residential, and in residential applications to regulate liquid pressure as supplied by a positive pressure pump. This is a poppet-type compact valve that protects equipment by opening at the desired setting to allow excess volume to be by-passed back to the source. It consist of a lead free brass body construction with NPT male inlet and NPT female outlet, PTFE disc, spring and a tee handle. The pressure range is 0 to 250 psi (zero to 17.23 bar).
Features:
Lead free brass body construction
Spring loaded
Soft seated
Automatic reseating
Specifications:
Manufacturer: Watts
Manufacturer Part Number: 0121627
Product Type: Relief Valve
Body Material: Lead Free Brass
Inlet Connection Size: 1/2 IN
Inlet Connection Type: Male Threaded
Inlet Thread Type: NPT
Lead Free: YES
Maximum Temperature: 180 Degree Fahrenheit
Maximum Working Pressure: 250 PSI
Outlet Connection Size: 1/2"
Outlet Connection Type: Female Threaded
Outlet Thread Type: NPT
Pressure Range: 0 to 250 PSI
Pressure Relief Setting: 150 PSI
Protection Type: Pressure
Series: LF5300A
Dimensions: 2.3" x 5.2" x 2.3"
Weight: 0.56 lb
