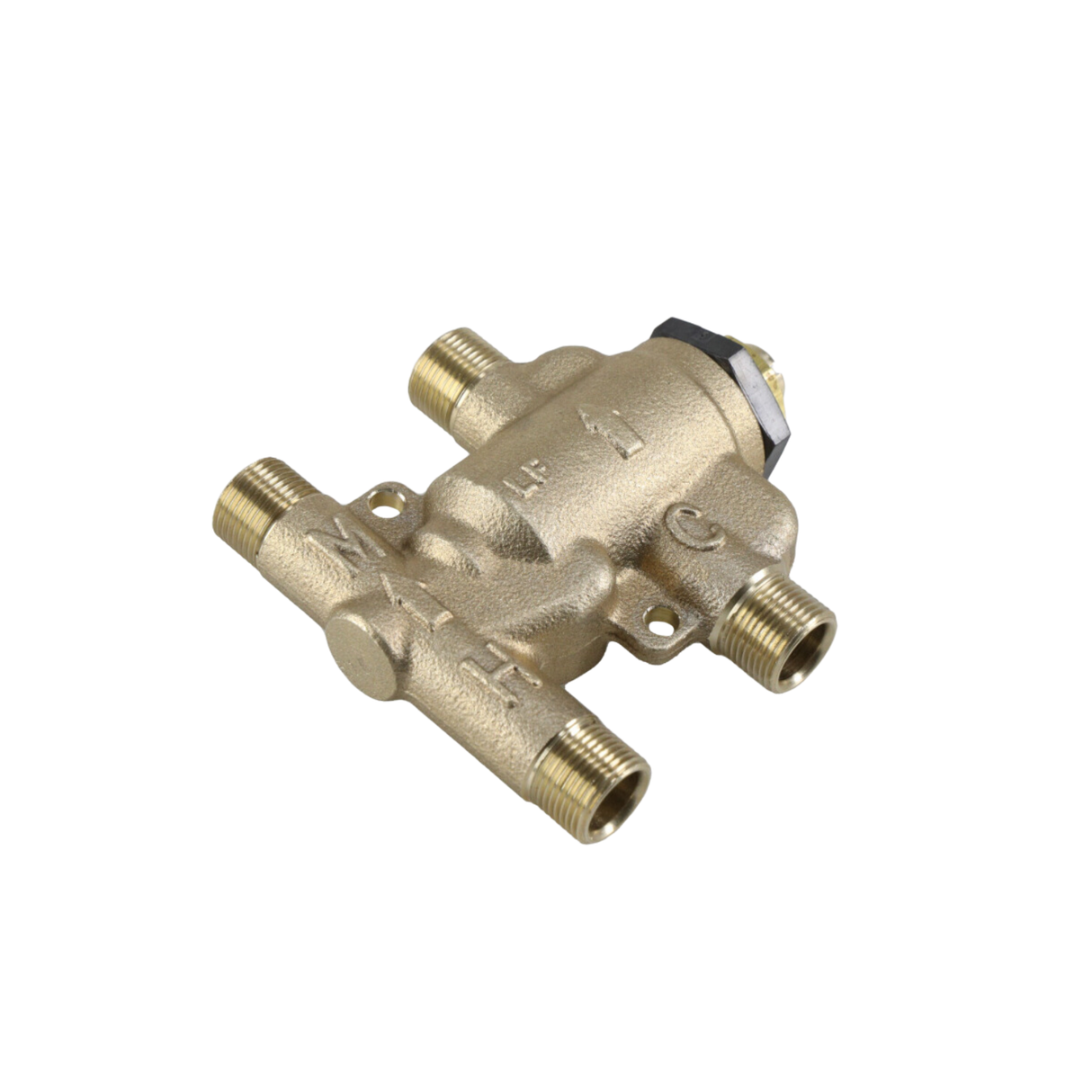

Watts 0204152 LFUSG-B Series, 2.25 GPM Capacity, 3/8" Connection, 150 PSI Max, Thermostatic Mixing Valve

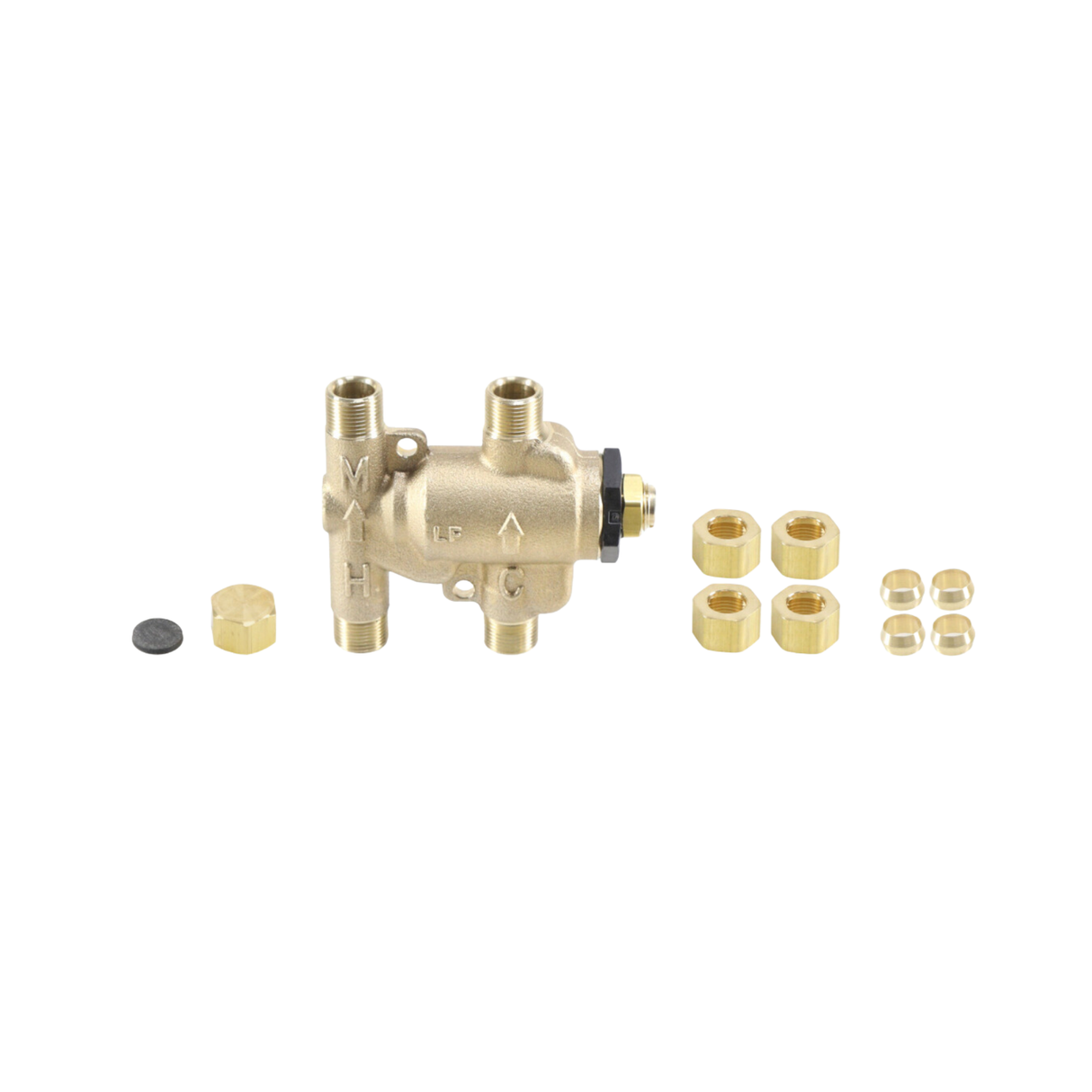

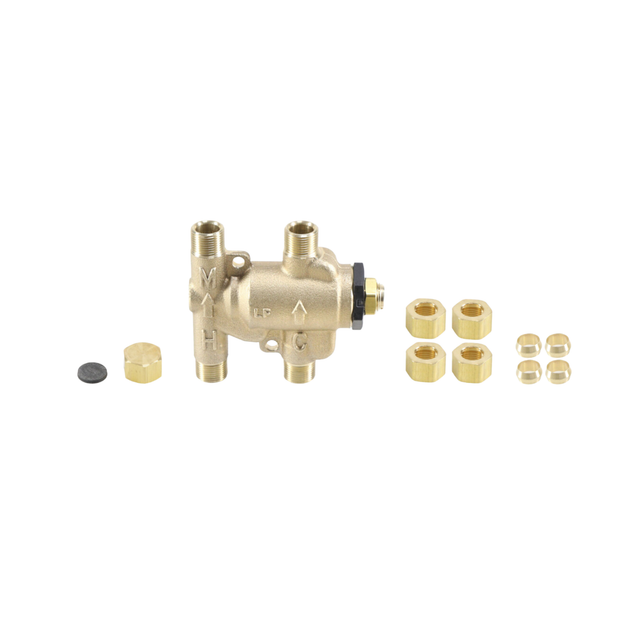

This 3/8 inch Under Sink Guardian® lead free thermostatic mixing valve is used in commercial and residential applications to control the hot water temperature and minimize the potential for accidental scalding. It is suitable for kitchen and bath installations where the water delivered to the fixtures is intended for bathing or washing. The double throttling design controls both the hot and cold water supply to the mixed outlet. This valve consists of a lead free brass body, 3/8 inch male compression fittings, copper thermostat, check valves, integral strainer with 40 mesh stainless steel screens, and a tamper resistant locking cap. The maximum working pressure is 150 psi (1034 kPa). The water temperature can be field adjusted between 80 to 120 degrees F (27 to 49 degrees C). The recommended maximum temperature is 110 degrees F (43 degrees C). This product meets the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61.

Features:
Accurate temperature control with low pressure drop
Built-in check valves prevent hot and cold water cross flow
Provides superior flow rate between 0.25 and 2.5 GPM
ASSE 1070 listed and CSA certified
Meets the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61

Specifications:

Manufacturer: Watts
Manufacturer Part Number: 0204152
Product Type: Thermostatic Mixing Valve
Capacity: 2.25 GPM
Cold Inlet Temperature Range: 39 to 80 Degree Fahrenheit
Cold Water Bypass: No
Cold Water Inlet Connection Size: 3/8"
Cold Water Inlet Connection Type: Compression Joint
Factory Set Temperature: 105 Fahrenheit
Flow Rate: 0.25 to 2.25 GPM
Hot Inlet Temperature Range: 120 to 180 Degree Fahrenheit
Hot Water Inlet Connection Size: 3/8"
Hot Water Inlet Connection Type: Compression Joint
Lead Free: YES
Maximum Pressure Differential: 20 Percent
Maximum Working Pressure: 150 PSI
Minimum Differential Temperature: 5 Fahrenheit
Minimum Static Pressure: 30 PSI
Outlet Connection Size: 3/8"
Outlet Connection Type: Compression Joint
Outlet Temperature Accuracy: Plus/Minus 3 Degree Fahrenheit
Series: LFUSG-B
Temperature Adjustment Range: 80 to 120 Degree Fahrenheit
Dimensions: 3.9" x 3.5" x 2.55"
Weight: 0.76 lb
