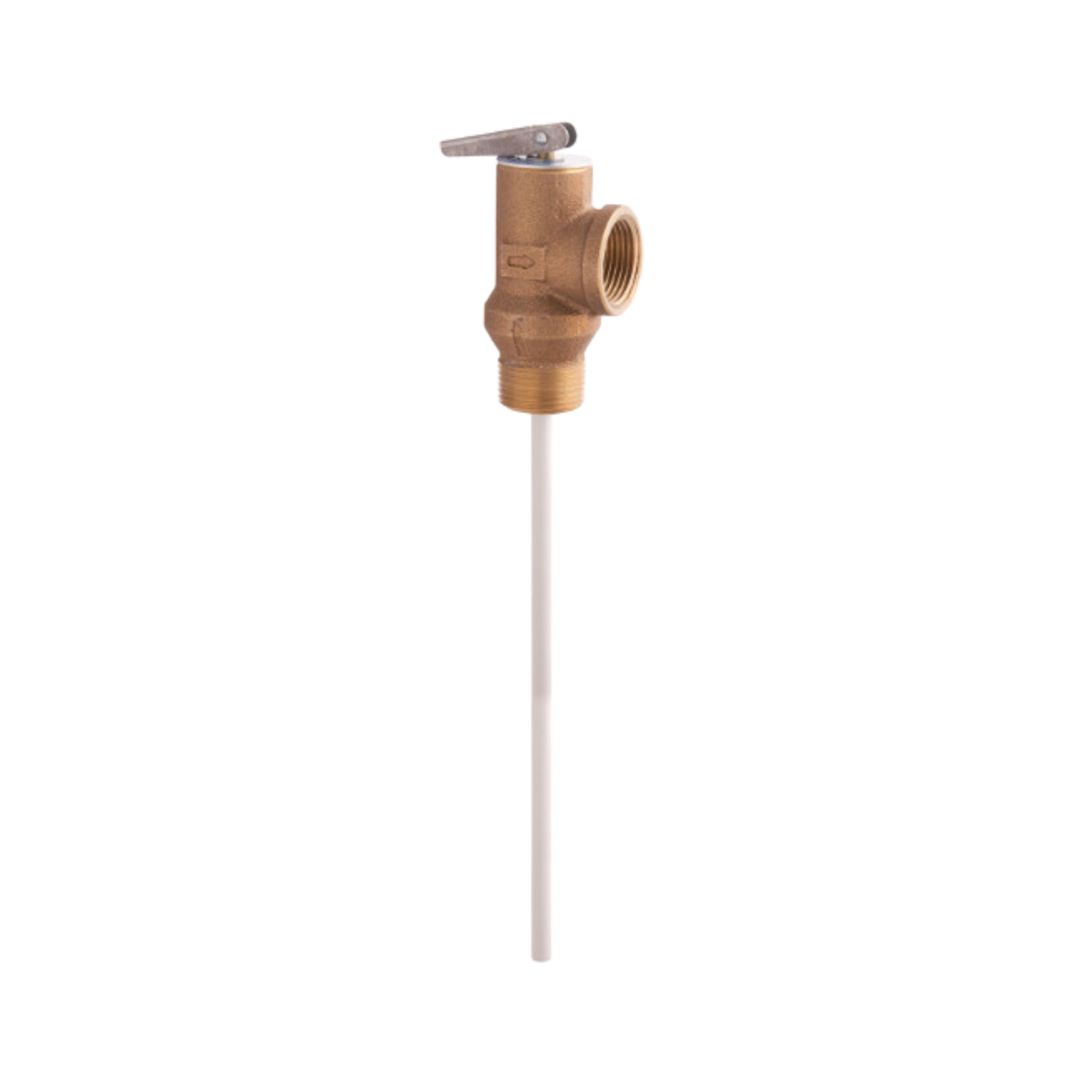

Watts 0556001 LF100XL Series, 3/4" NPT Female Connection, 113 PSI Max, 200000 BTU/hr, Relief Valve
Watts 0556001 LF100XL Series, 3/4" NPT Female Connection, 113 PSI Max, 200000 BTU/hr, Relief Valve is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating with 8 inch extension, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).
Features:
Protects against excessive temperature and pressure during emergency conditions
8 inch thermostat with thermo-bonded coating
ASME rated and CSA listed
Lead free copper alloy body construction
Specifications:
Manufacturer: Watts
Manufacturer Part Number: 0556001
Product Type: Relief Valve
Body Material: Lead Free Copper Silicon Alloy
Inlet Connection Size: 3/4"
Inlet Connection Type: Male Threaded
Inlet Thread Type: NPT
Lead Free: YES
Maximum Temperature: 210 Fahrenheit
Maximum Working Pressure: 113 PSI
Outlet Connection Size: 3/4"
Outlet Connection Type: Female Threaded
Outlet Thread Type: NPT
Pressure Relief Setting: 150 PSI
Pressure Steam Discharge Capacity: 200,000 BTU/hr
Protection Type: Temperature And Pressure
Series: LF100XL
Shank Length: 1 1/8"
Temperature Relief: 210 Fahrenheit
Temperature Steam Discharge Capacity: 105,000 BTU/hr
Thermostat Material: Copper
Thermostat Probe Length: 8"
Dimensions: 12.25" x 2.7" x 1.45"
Weight: 0.56 lb
