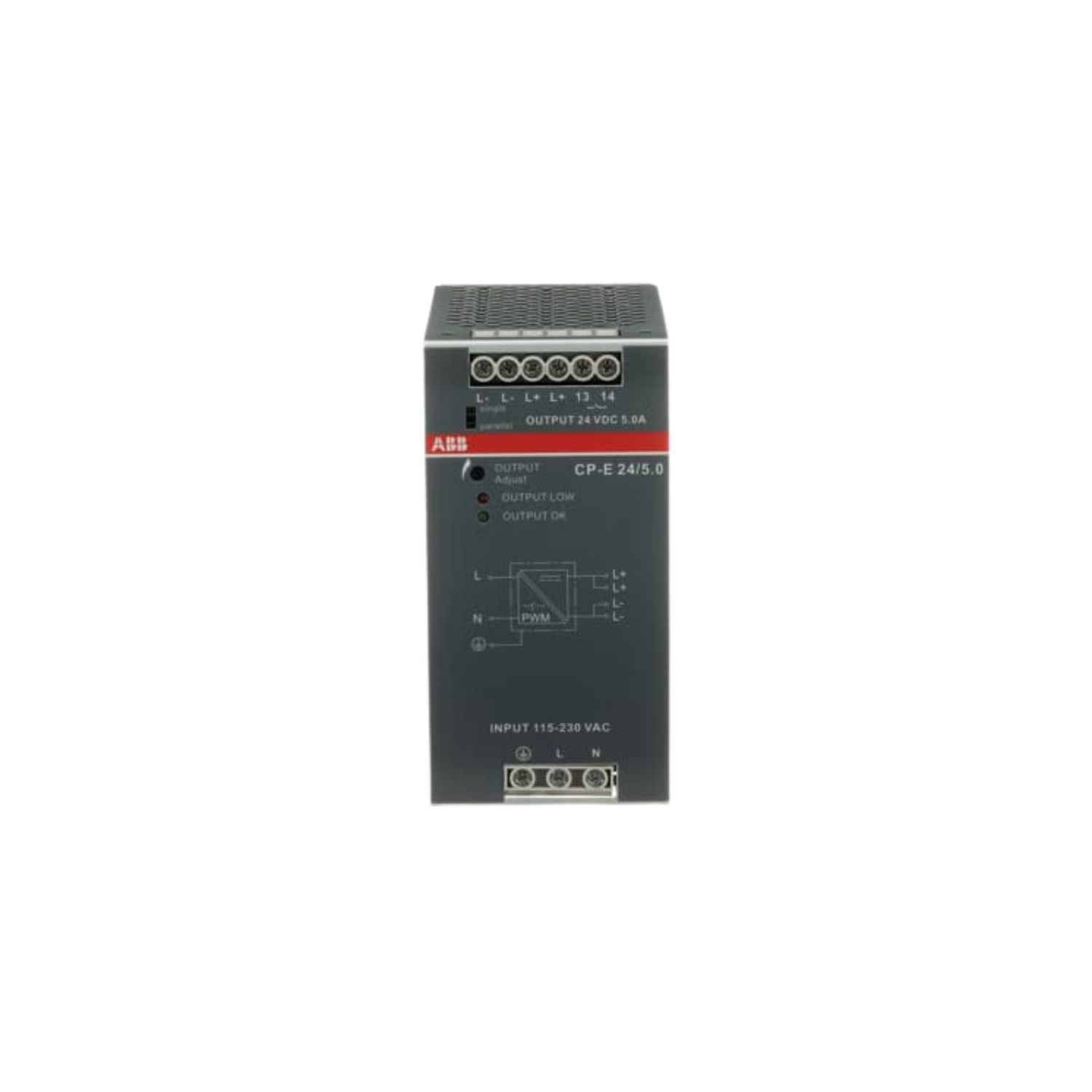

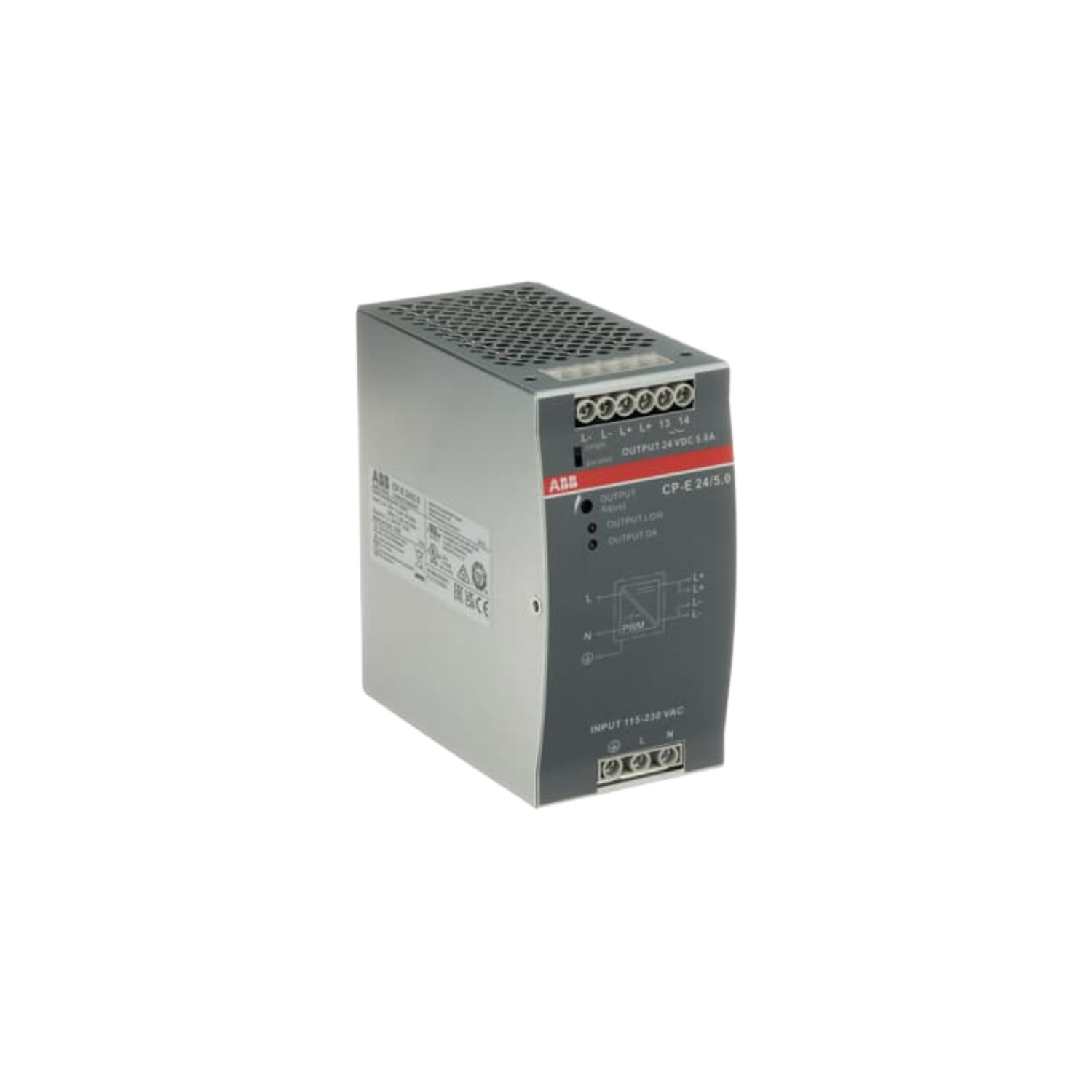

ABB 1SVR427034R0000 Power Supply

The CP-E 24/5.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: 1SVR427034R0000
Product Type: Power Supply
Input Voltage: 90-132 V AC, 180-264 V AC, 210-375 V DC
Output Voltage: 24 V DC @ 5 A
Mounting: DIN Rail
Dimensions: 2.48" x 4.86" x 4.86"
Weight: 1.94 lb.
