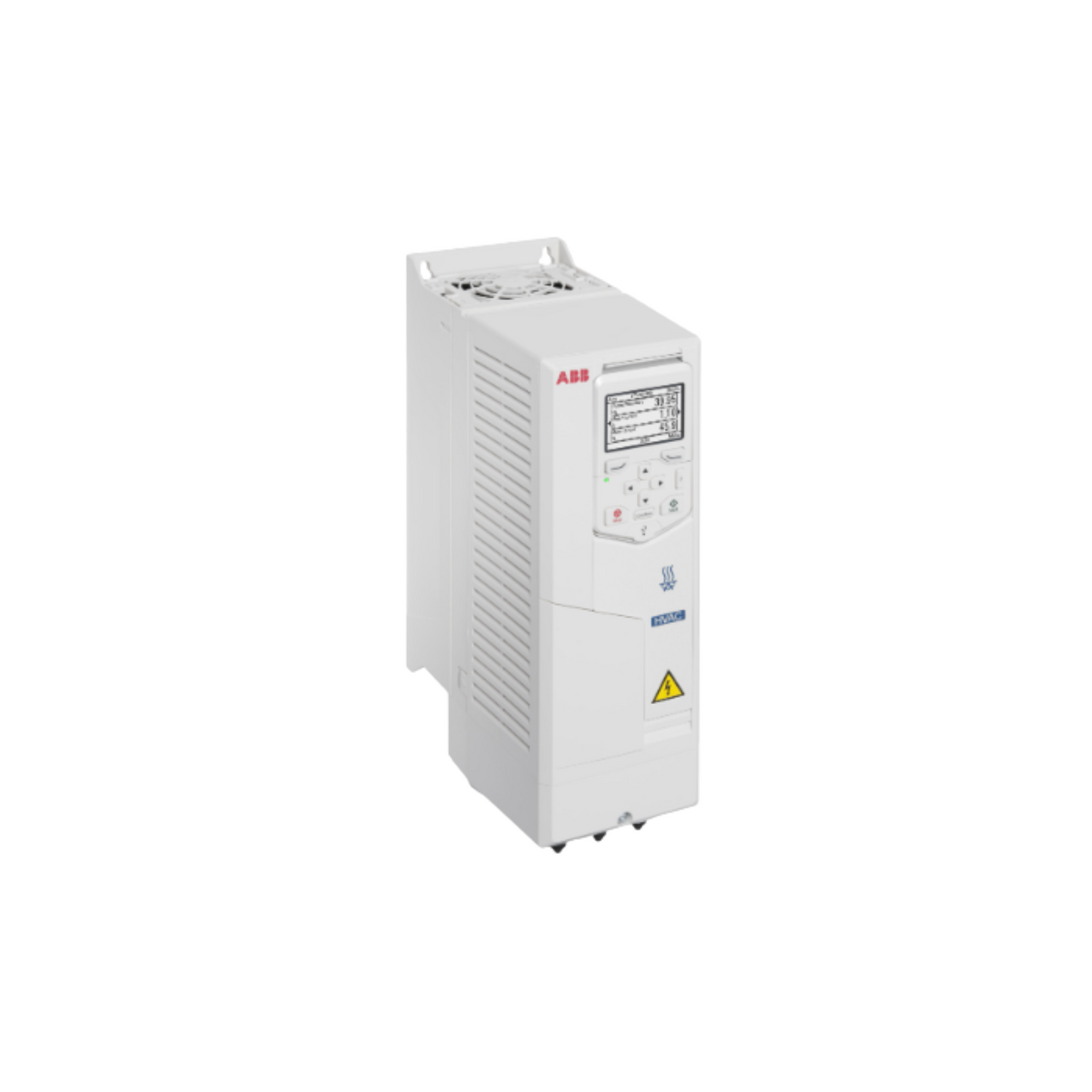

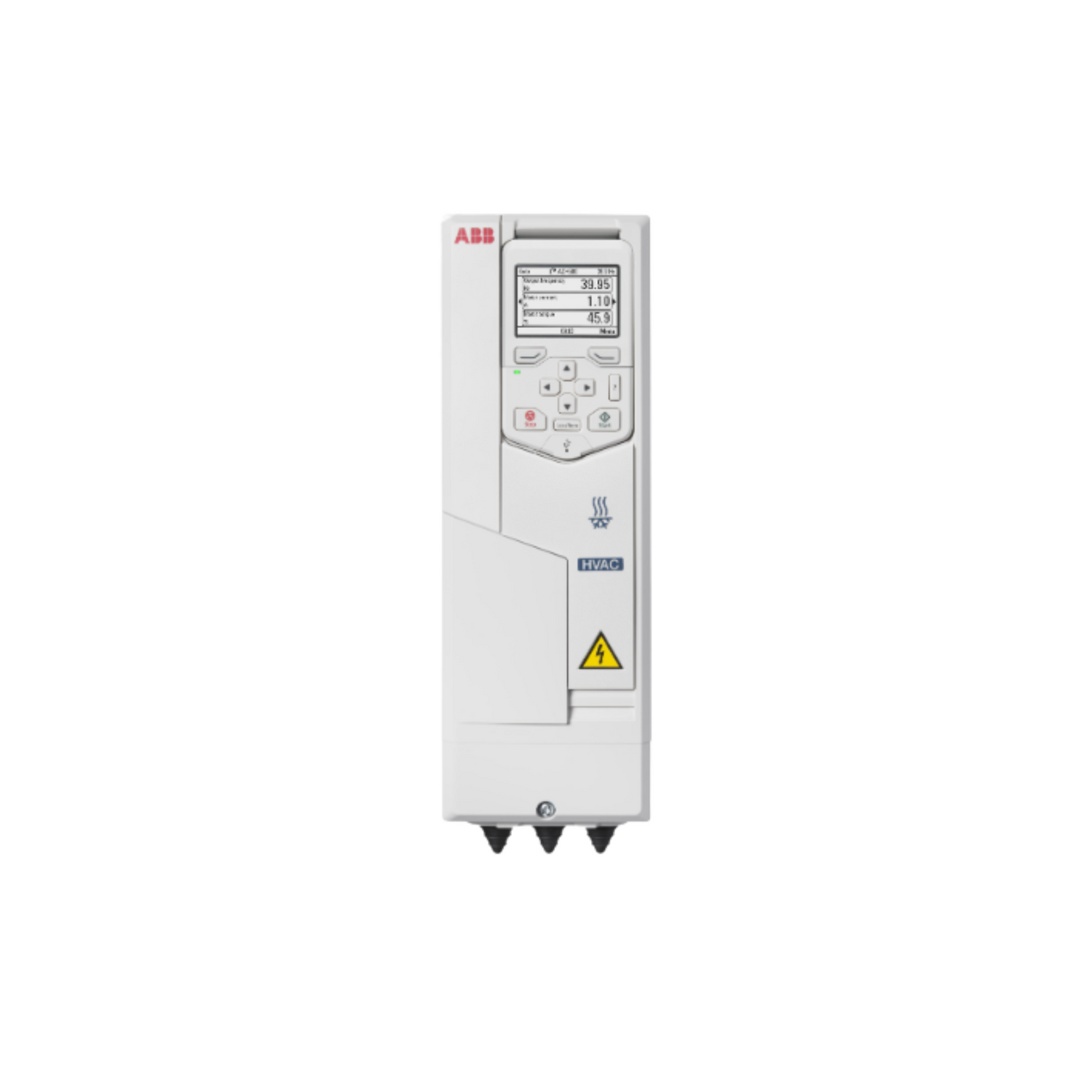

ABB ACH580-01-017A-2 208-240 V 50/60 Hz 10 HP Variable Frequency Drive

ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: ACH580-01-017A-2
Product Type: Variable Frequency Drive
Voltage Rating: 208-240 V
Frequency Rating: 50/60 Hz
Motor Size: 10 HP
Frame Size: R1
No. of Phase: 3
Mounting Type: Wall-Mounted
Dimensions: 8.78" x 14.69" x 4.82"
Weight: 11.0 lb.
