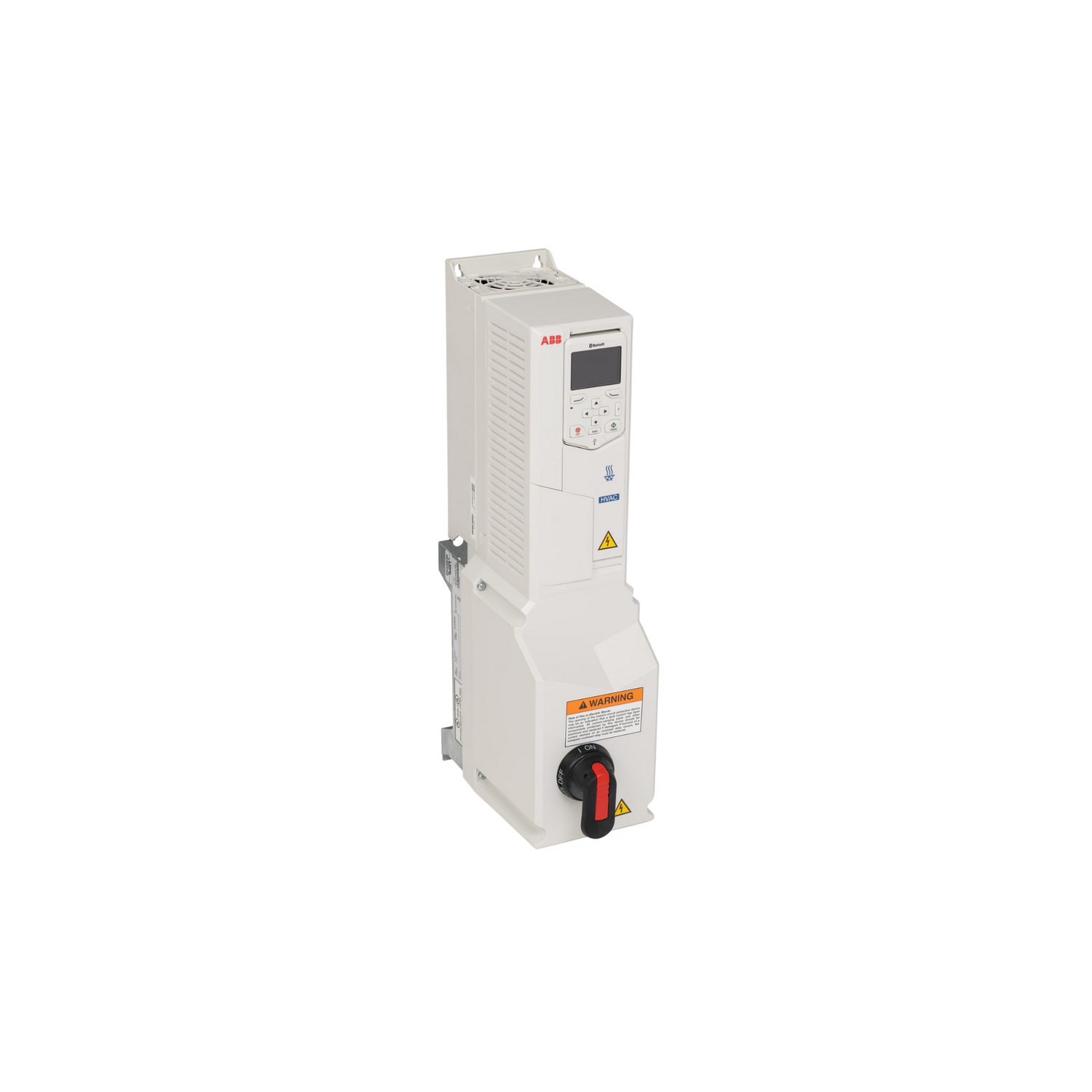

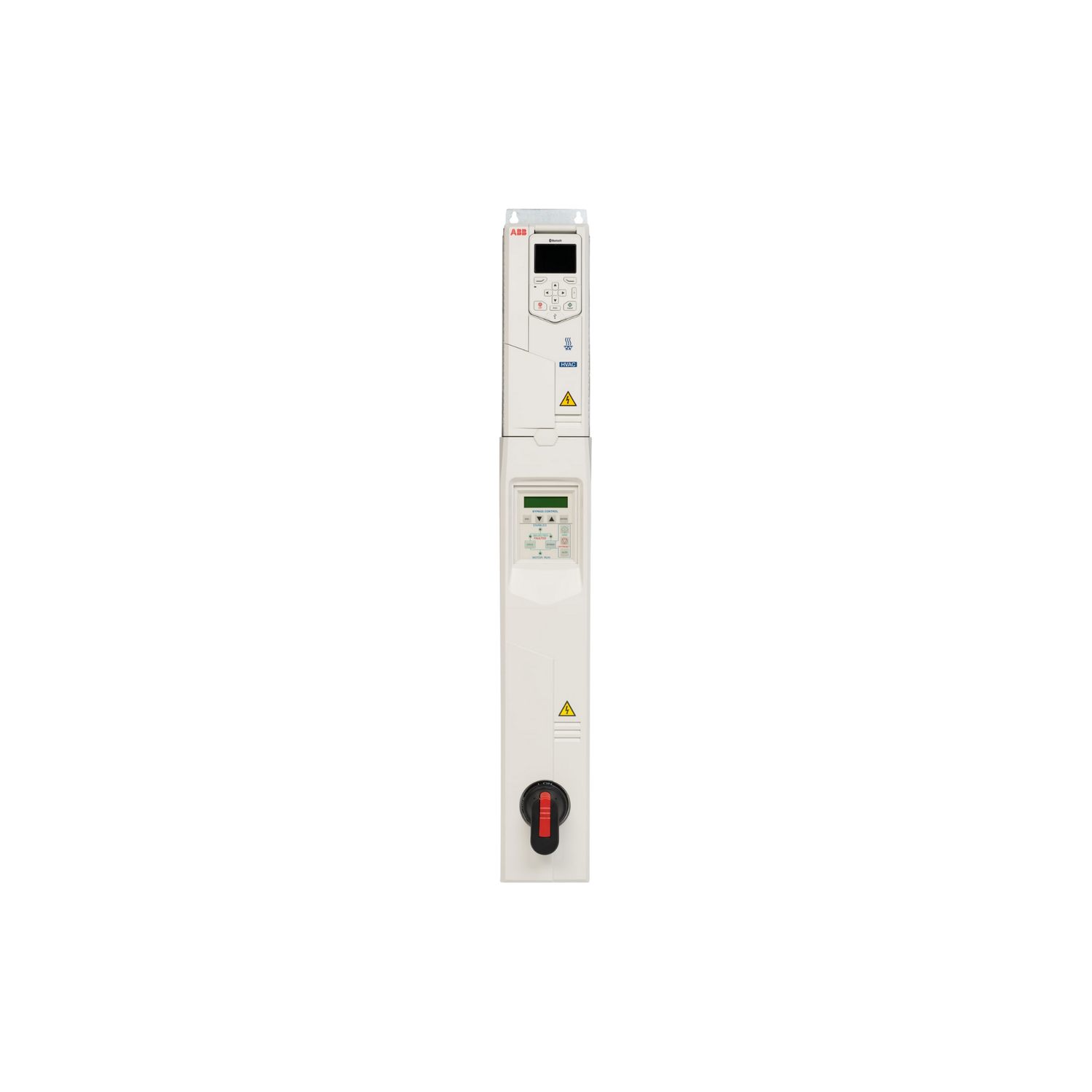

ABB ACH580-PDR-04A8-4 460 V 4.8 A 3 HP Drive
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Pickup currently unavailable at Snook & Aderton, Inc
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
The ACH580 Packaged Drive includes an ACH580 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with input disconnect switch or circuit breaker, both including fast acting drive fuses. It is available from 1 to 350 hp at 230/460/575 V. The ACH580 Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Specifications:
Manufacturer: ABB
Manufacturer Part Number: ACH580-PDR-04A8-4
Product Type: Drive
Voltage Rating: 460 V
Frequency Rating: 50/60 Hz
Current Rating: 4.8 A
Motor Size: 3 HP
No. of Phase: 3
Frame Size: R1
Dimensions: 12.42" x 24.6" x 6.34"
Weight: 18.1 lb.
