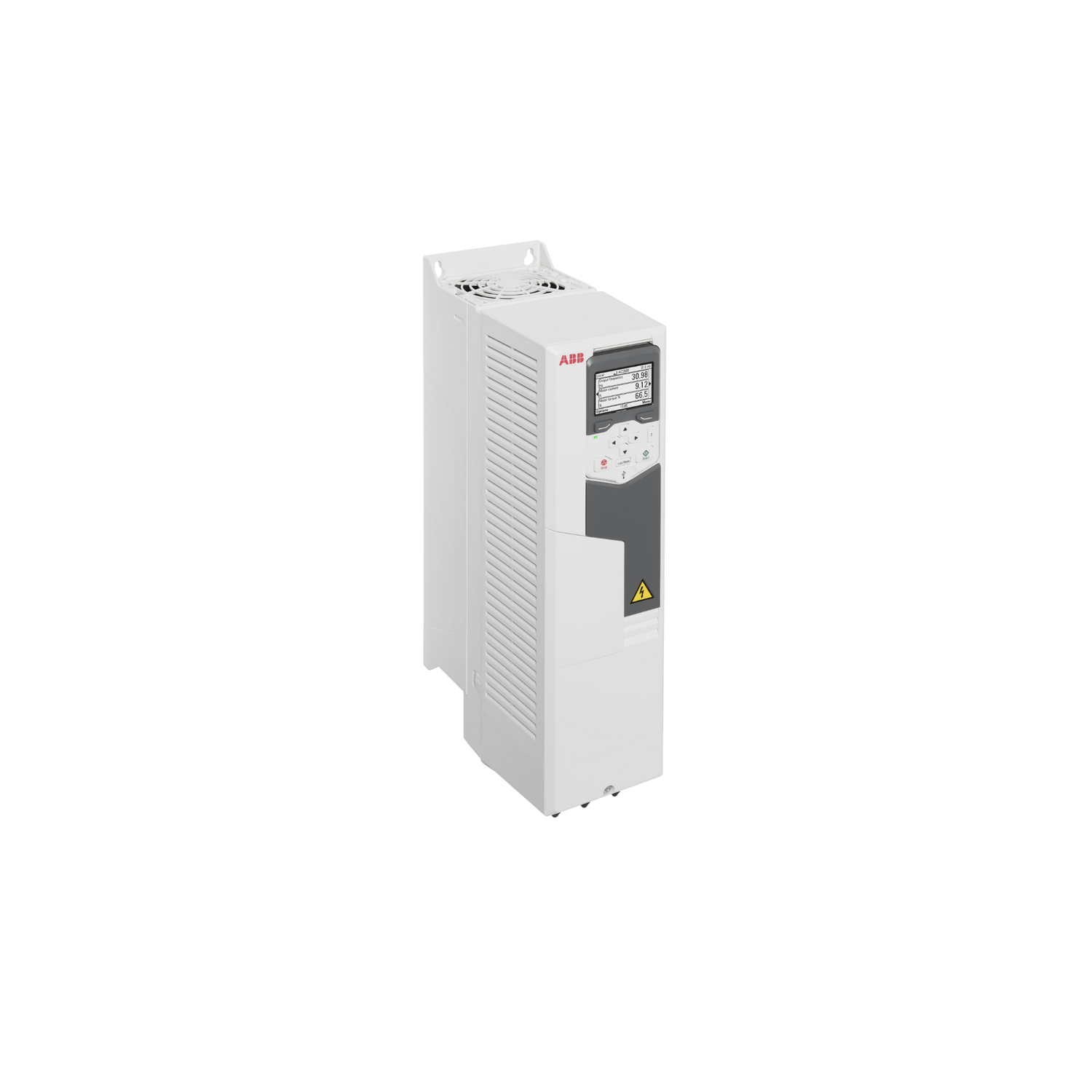

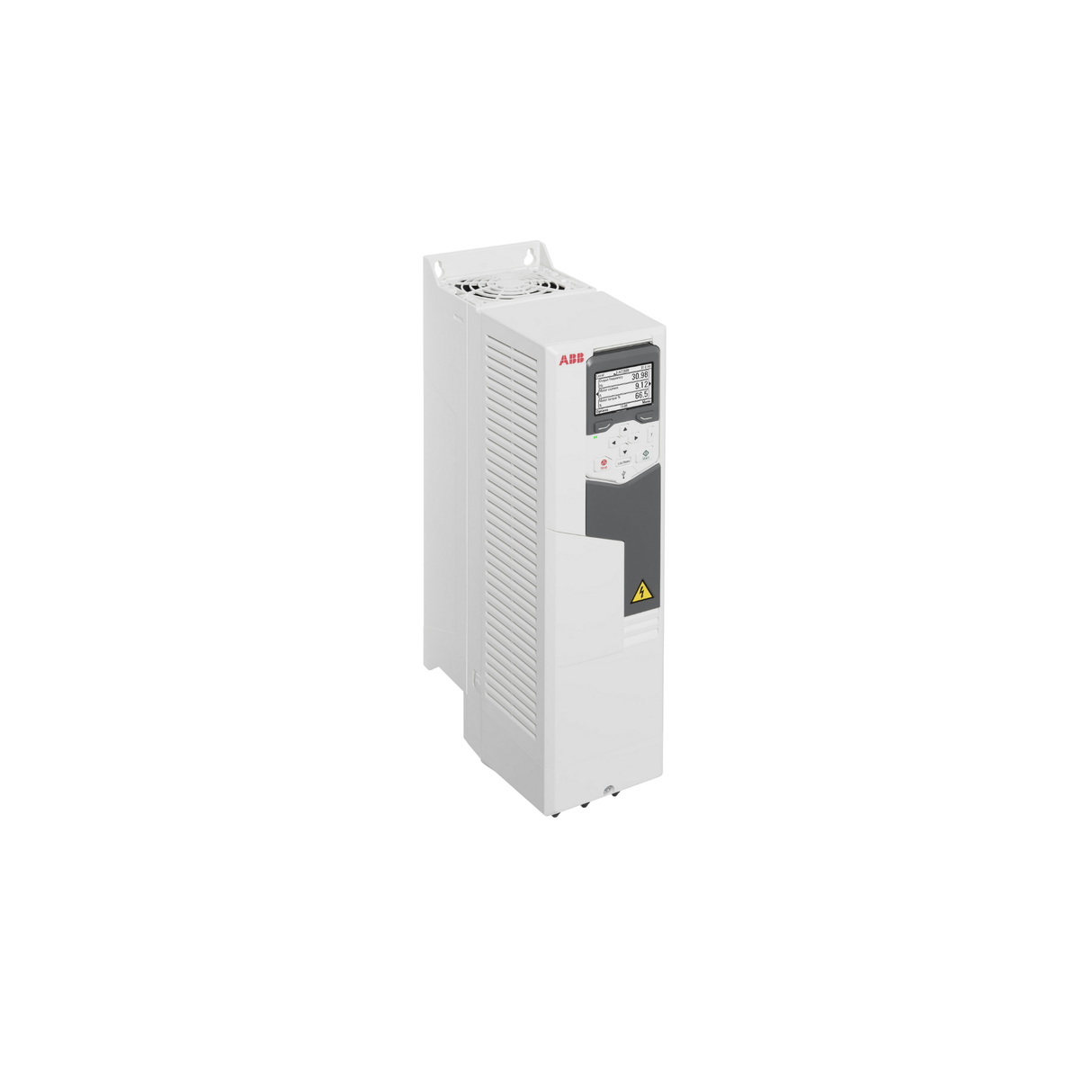

ABB ACS580-01-014A-4 380-500 V 50/60 Hz Drive

The wall-mounted ACS580-01 is available as UL Type 1 (IP21), Type 12 (IP55) and Type 4X (IP66) designed for OEM and end users who value high quality and robustness in their applications. Coated control boards, high enclosure classes, and motor temperature monitoring ensure processes will run smoothly even in harsh conditions. This drive is part of ABB’s all-compatible drives portfolio, sharing the same control panel, PC tools, parameter structure and communications options as the ACS380/180 and ACS880. Learn it once; use it everywhere. With both V/Hz and sensorless vector control supporting most motor types such as induction, permanent magnet, synchronous reluctance, and optimum pole motors the ACS580 is ideal for use on compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and other variable and constant torque applications, in a variety of industries, including food and beverage, plastic, textile, material handling, and agriculture.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: ACS580-01-014A-4
Product Type: Drive
Voltage Rating: 380-500 V
Frequency Rating: 50/60 Hz
Current Rating: 14 A
Motor Size: 10 HP
No. of Phase: 3
Frame Size: R2
Mounting Type: Wall
Dimensions: 9.0" x 18.62" x 4.86"
Weight: 15.0 lb.
