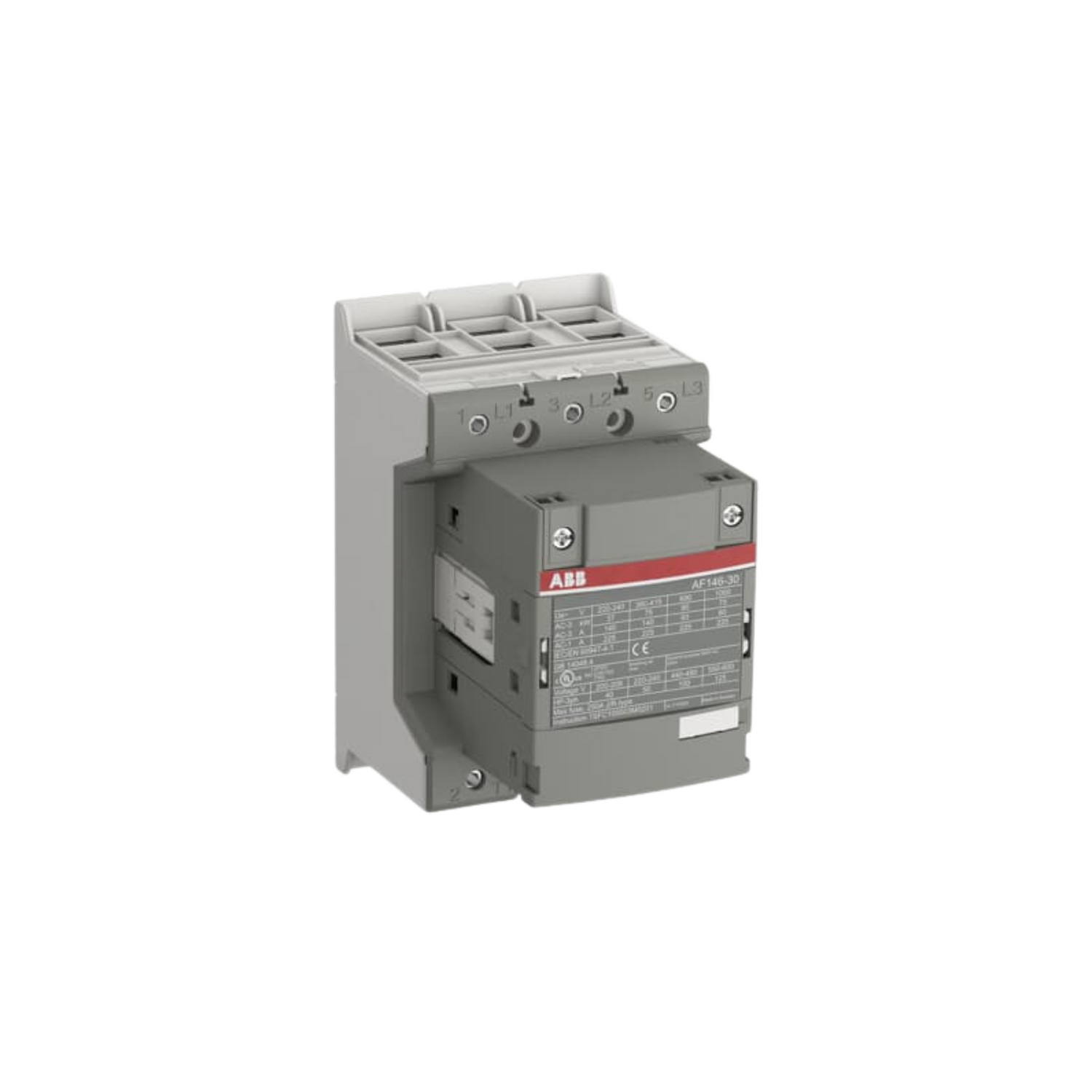

ABB AF146-30-00-13 1000 V 50/60 Hz Contactor

The AF146-30-00-13 is a 3 pole - 1000 V IEC or 600 V UL contactor with double clamp, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL and switching power circuits up to 225 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: AF146-30-00-13
Product Type: Contactor
Voltage Rating: 1000 V
Frequency Rating: 50/60 Hz
Current Rating: 146 A
Poles: 3
Dimensions: 3.54" x 4.96" x 5.9"
Weight: 3.41 lb.
