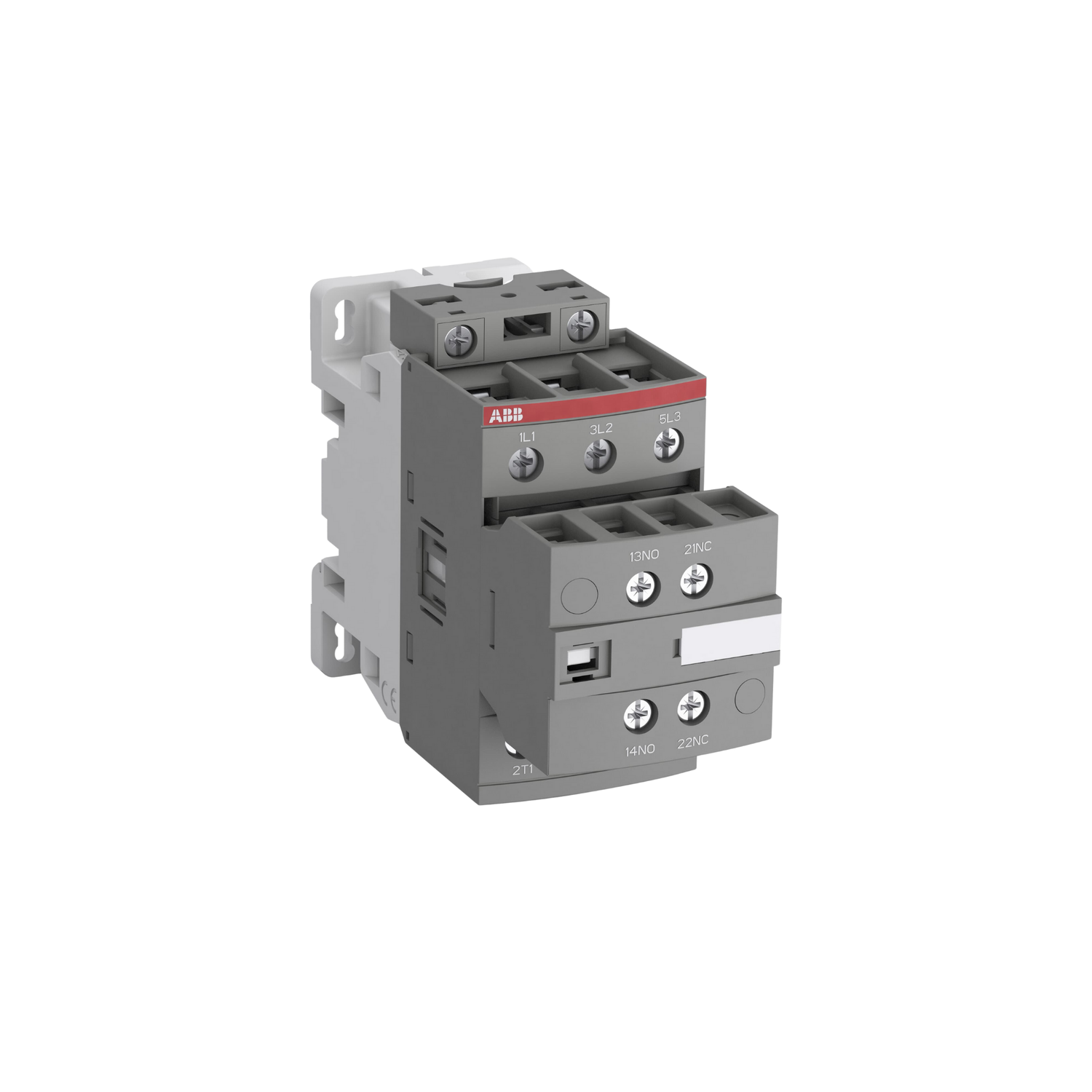

ABB AF26-30-11-13 100-250 V 45 A 3-Pole Contactor

The AF26-30-11-13 is a 3 pole - 690 V IEC or 600 UL contactor with pre-mounted auxiliary contacts and screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) or 15 hp / 480 V UL and switching power circuits up to 45 A (AC-1) or 45 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: AF26-30-11-13
Product Type: Contactor
Voltage Rating: 100-250 V
Frequency Rating: 50/60 Hz
Current Rating: 45 A
No. of Pole: 3
Terminal Type: Screw Terminals
Dimensions: 1.77" x 4.38" x 3.38"
Weight: 0.77 lb.
