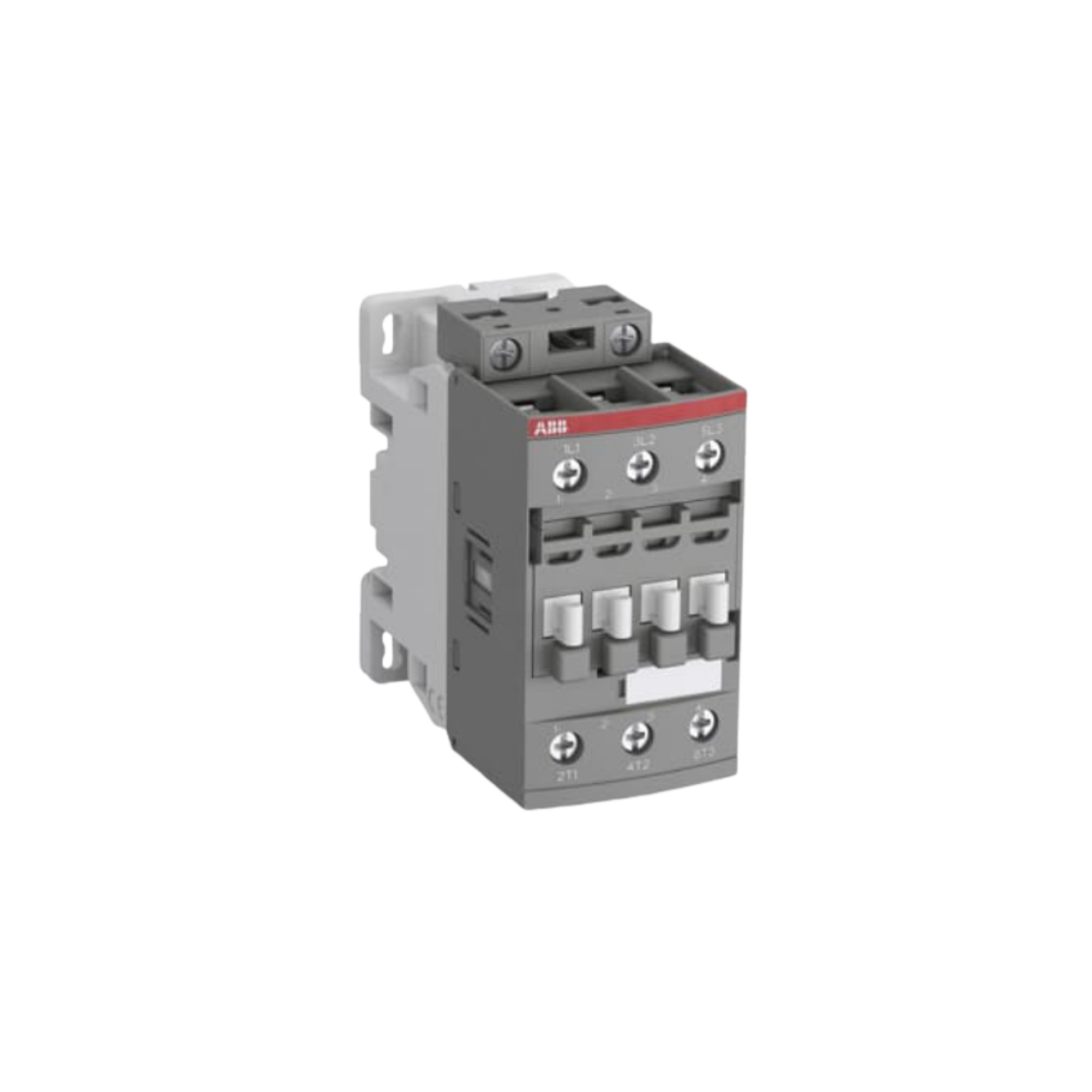

ABB AF30-30-00-14 480 V 60 A Contactor

The AF30-30-00-14 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 15 kW / 400 V AC (AC-3) or 20 hp / 480 V UL and switching power circuits up to 50 A (AC-1) or 50 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: AF30-30-00-14
Product Type: Contactor
Voltage Rating: 480 V
Frequency Rating: 50/60 Hz
Current Rating: 60 A
No. of Pole: 3
Terminal Type: Screw Terminals
Dimensions: 1.77" x 86 x 86
Weight: 0.77 lb.
