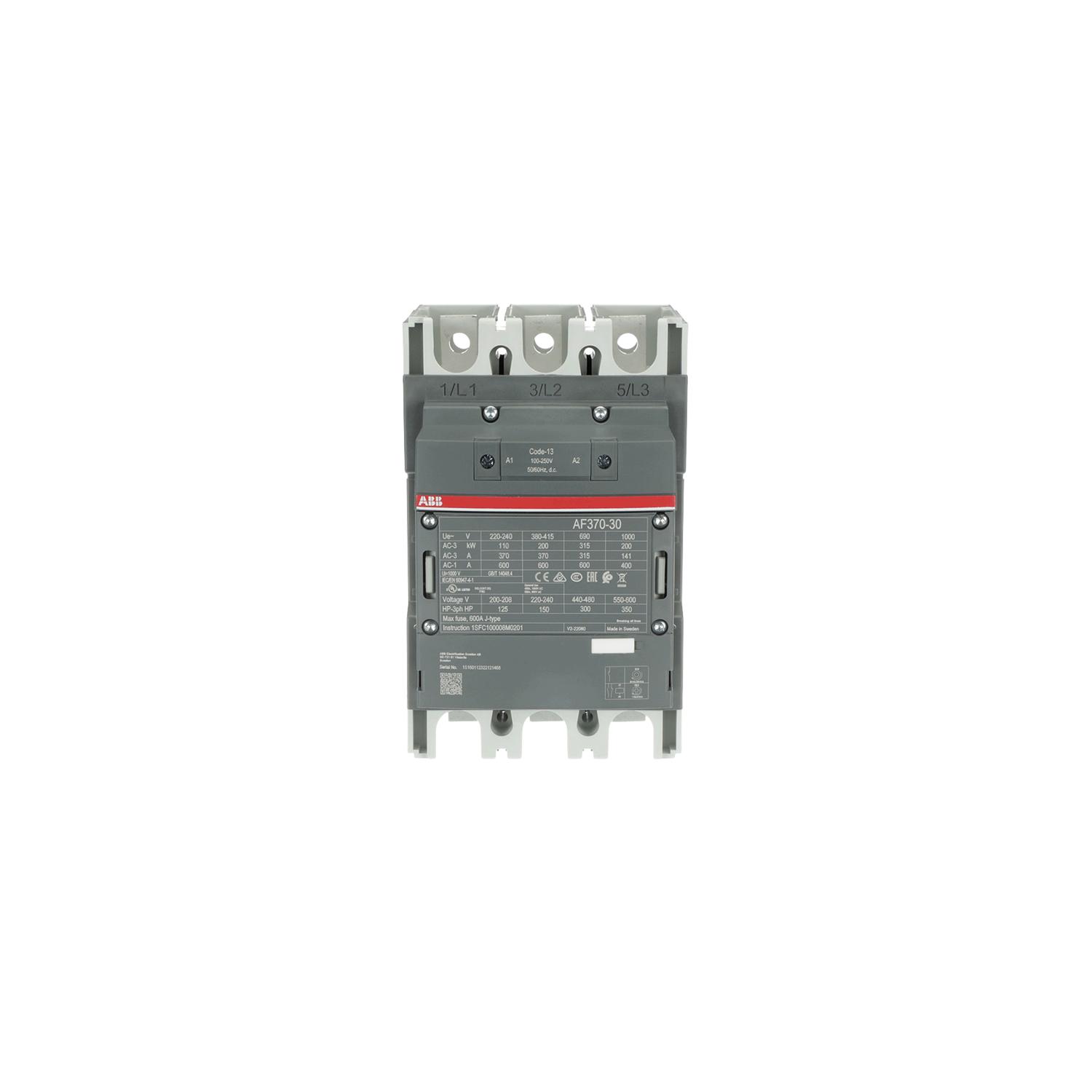

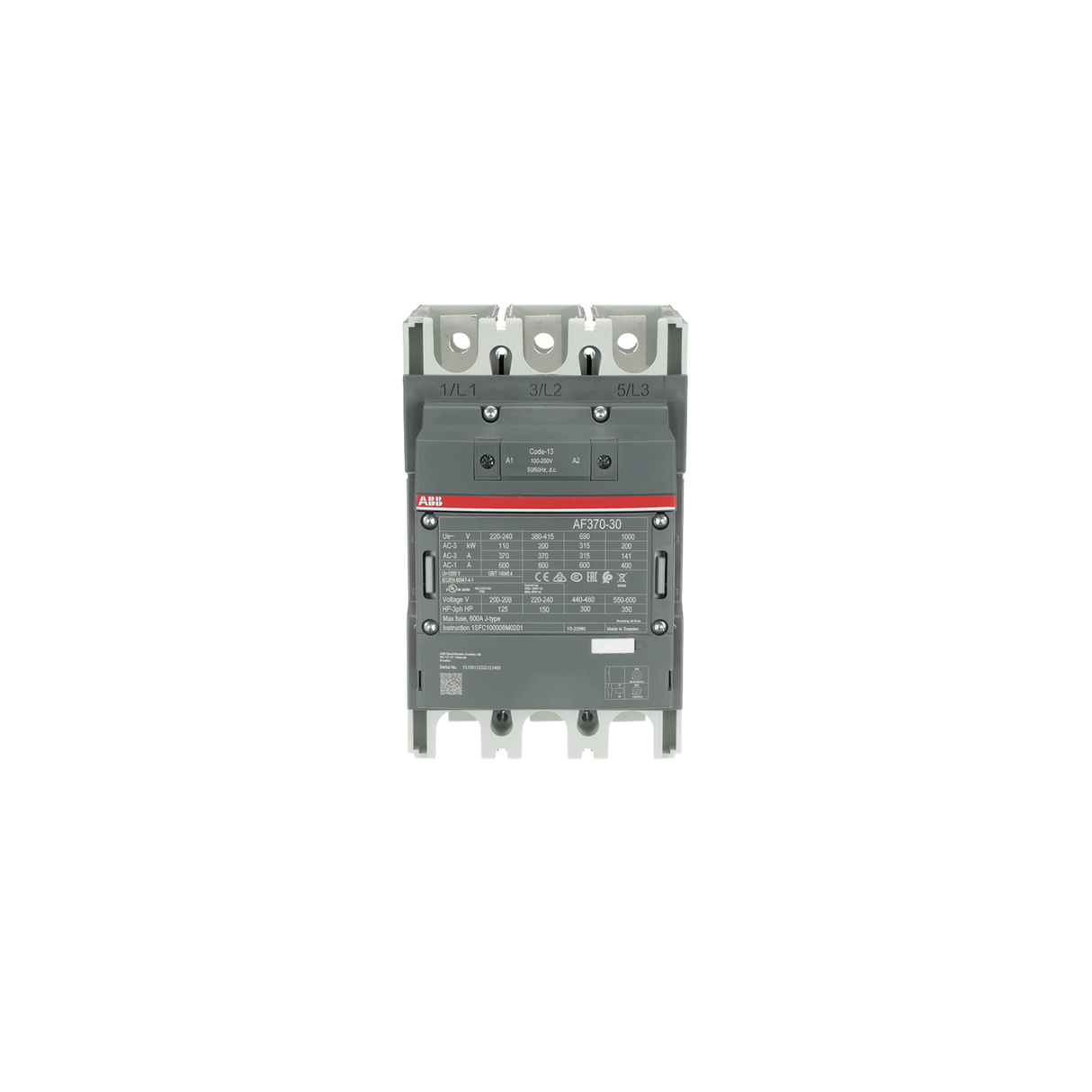

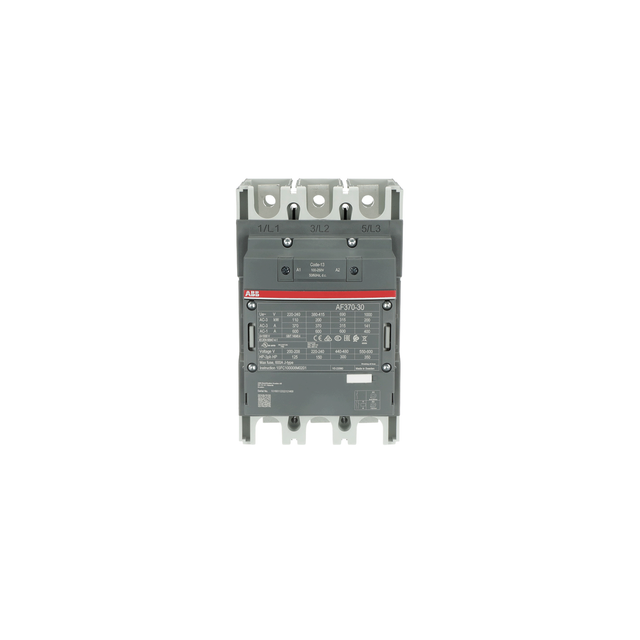

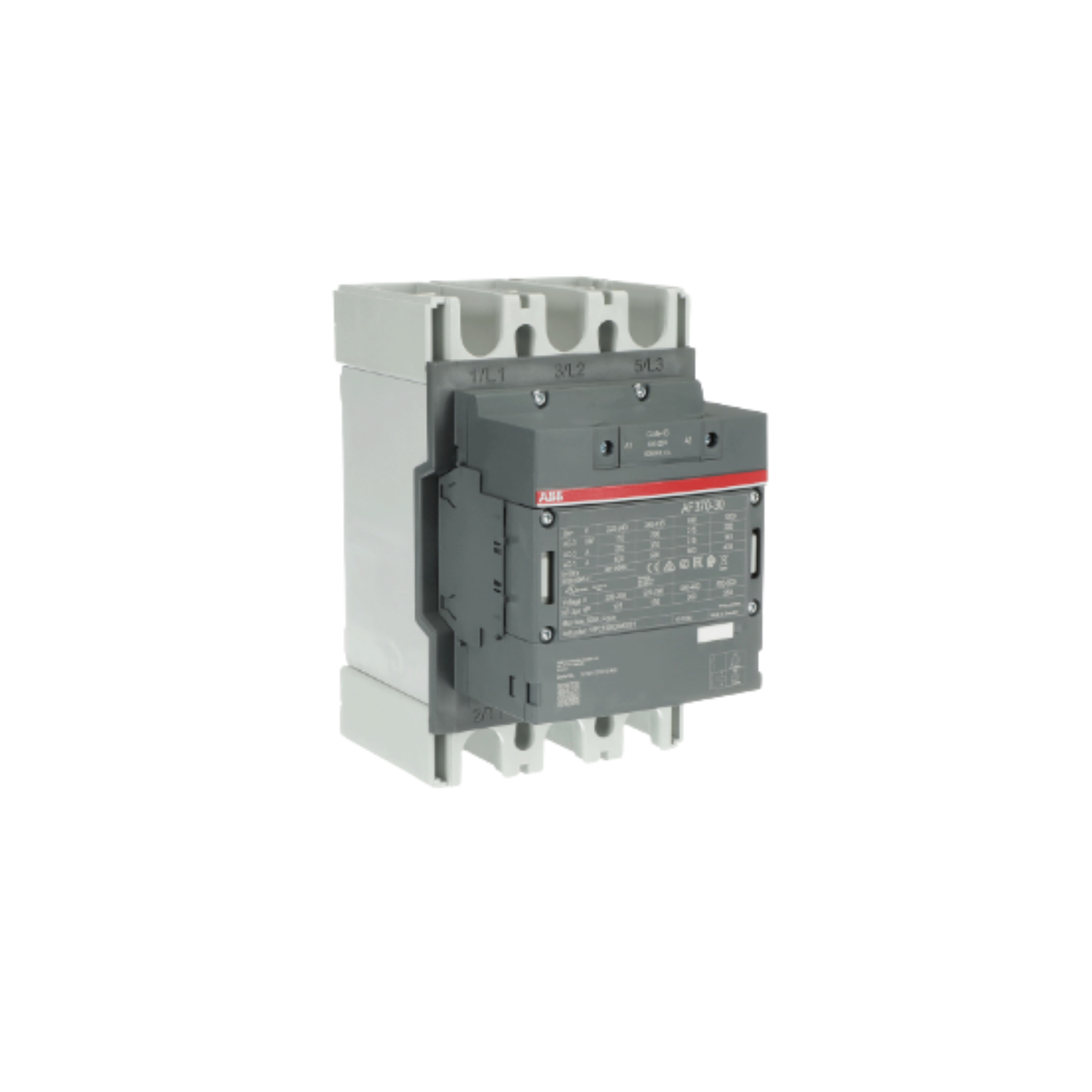

ABB AF370-30-00-13 Contactor

The AF370-30-00-13 is a 3 pole - 1000 V IEC or 600 V UL contactor with Main Circuit Bars, controlling motors up to 200 kW / 400 V AC (AC-3) or 300 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 520 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. Includes Mounting kit, containing all neccessary screws, washers and sockets for connecting the terminals, and screws for mounting the device.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: AF370-30-00-13
Product Type: Contactor
Frequency Rating: 50/60 Hz
No. of Pole: 3
Dimensions: 5.5" x 7.08" x 8.85"
Weight: 8.59 lb.
