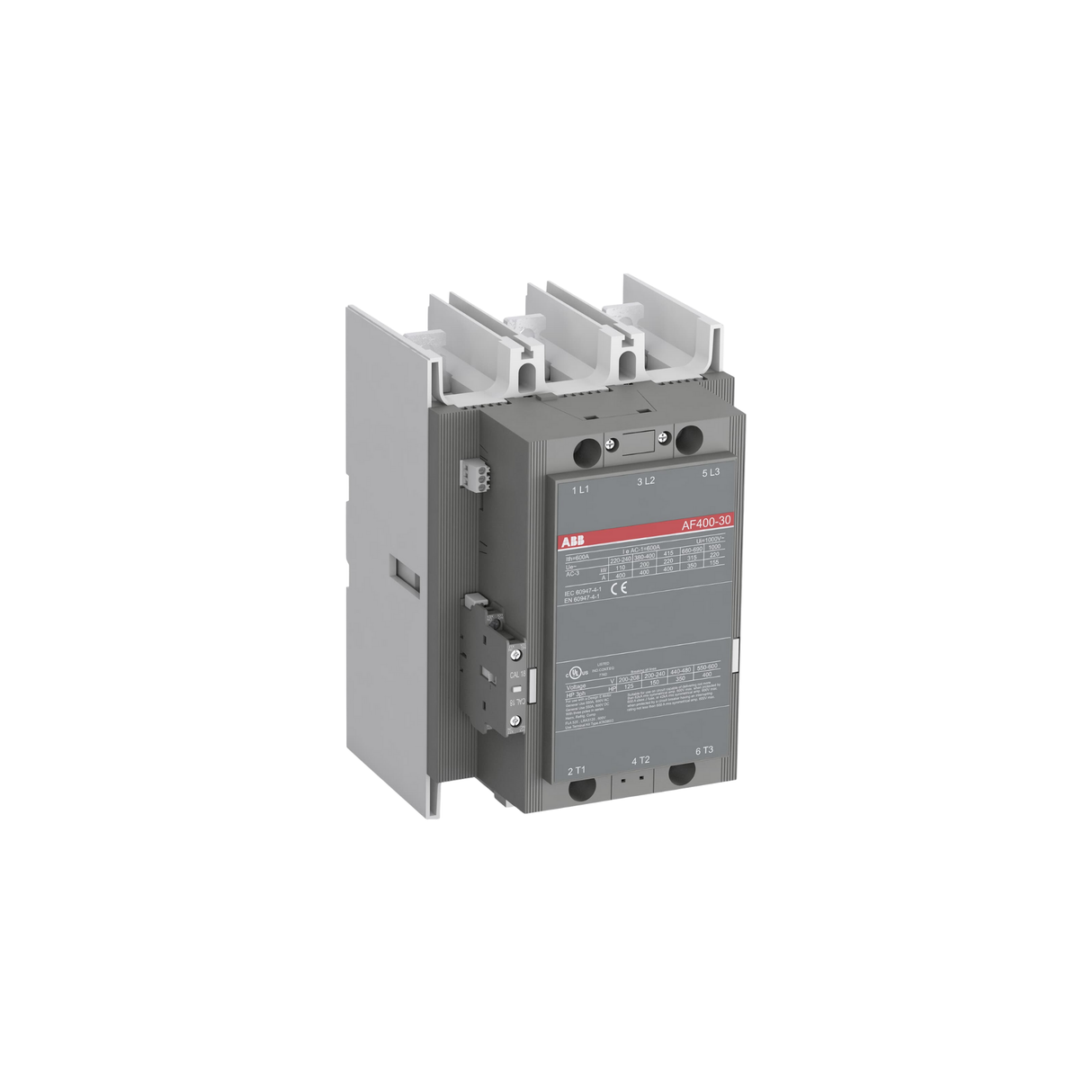

ABB AF400-30-11-71 250-500 V 3-Pole Contactor

The AF400-30-11-71 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 200 kW / 400 V AC (AC-3) or 350 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 550 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: AF400-30-11-71
Product Type: Contactor
Voltage Rating: 250-500 V
Frequency Rating: 50/60 Hz
No. of Poles: 3
Dimensions: 7.32" x 8.5" x 10.94"
Weight: 23.36 lb.
