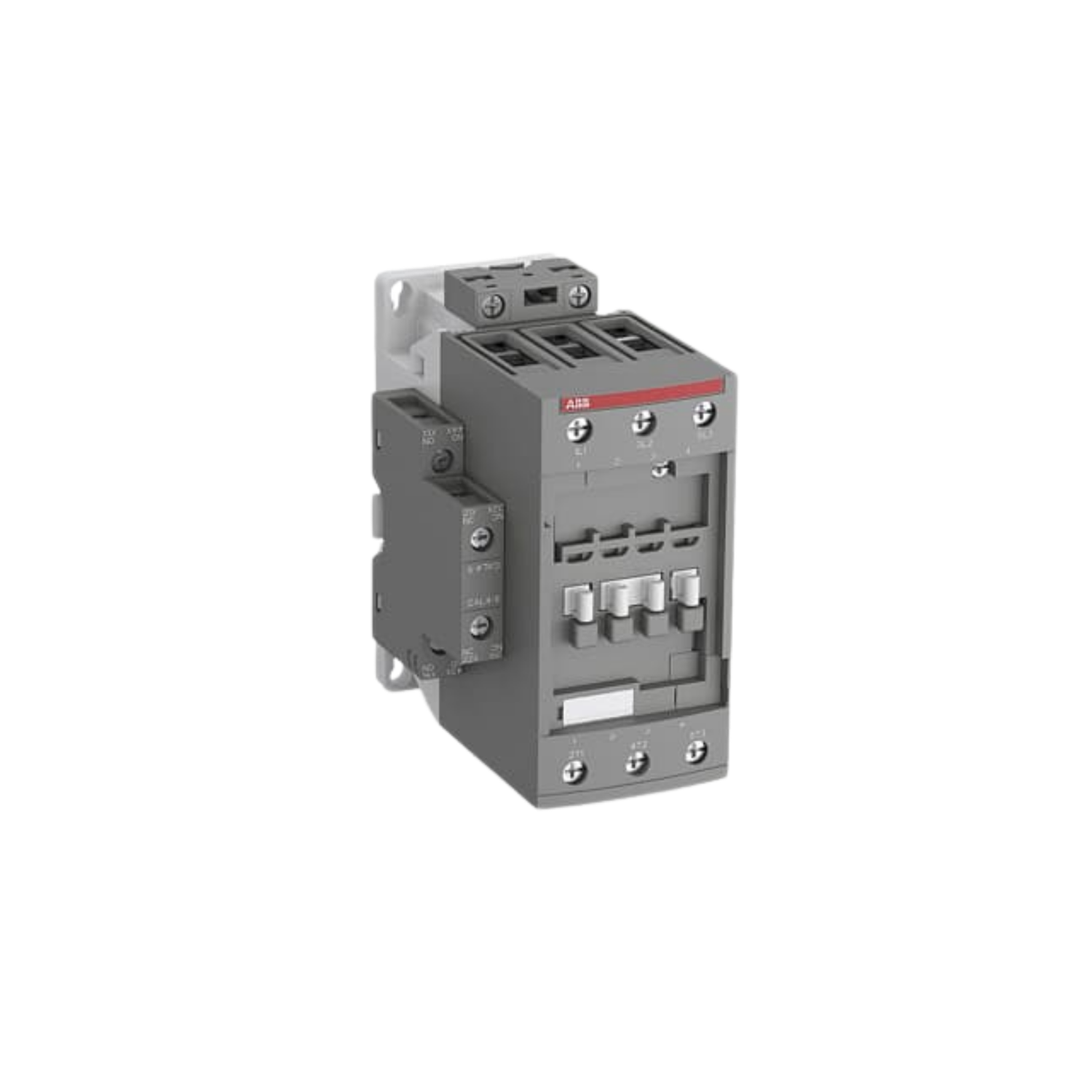

ABB AF52-30-11-13 Contactor

The AF52-30-11-13 is a 3 pole - 690 V IEC or 600 UL contactor with pre-mounted auxiliary contacts and screw terminals, controlling motors up to 22 kW / 400 V AC (AC-3) or 40 hp / 480 V UL and switching power circuits up to 100 A (AC-1) or 80 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: AF52-30-11-13
Product Type: Contactor
Voltage Rating: 100-250 V
Frequency Rating: 50/60 Hz
No. of Poles: 3
Main contacts: 3 Normally Open
Contacts Configurating: 1 Normally Open, 1 Normally Closed
Terminal Type: Screw Terminals
Dimensions: 2.63" x 4.37" x 4.94"
Weight: 2.18 lb.
