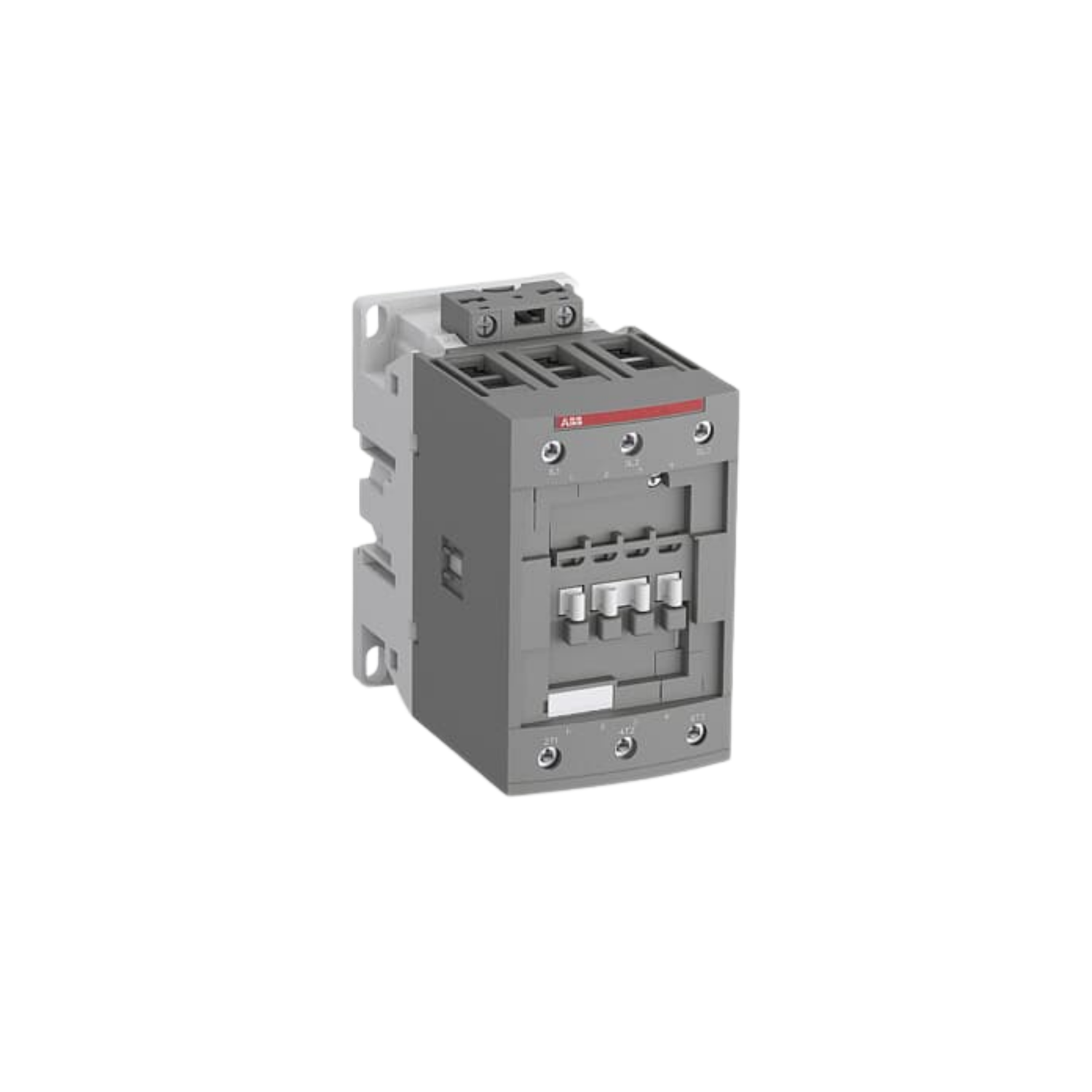

ABB AF80-30-00-14 Contactor

The AF80-30-00-14 is a 3 pole - 1000 V IEC or 600 UL contactor with screw terminals, controlling motors up to 37 kW / 400 V AC (AC-3) or 60 hp / 480 V UL and switching power circuits up to 125 A (AC-1) or 105 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: AF80-30-00-14
Product Type: Contactor
Voltage Rating: 250-500 V
Frequency Rating: 50/60 Hz
No. of Pole: 3
Main Contacts: 3 Normally Open
Terminal Type: Screw Terminals
Dimensions: 2.75" x 4.56" x 4.94"
Weight: 2.57 lb.
