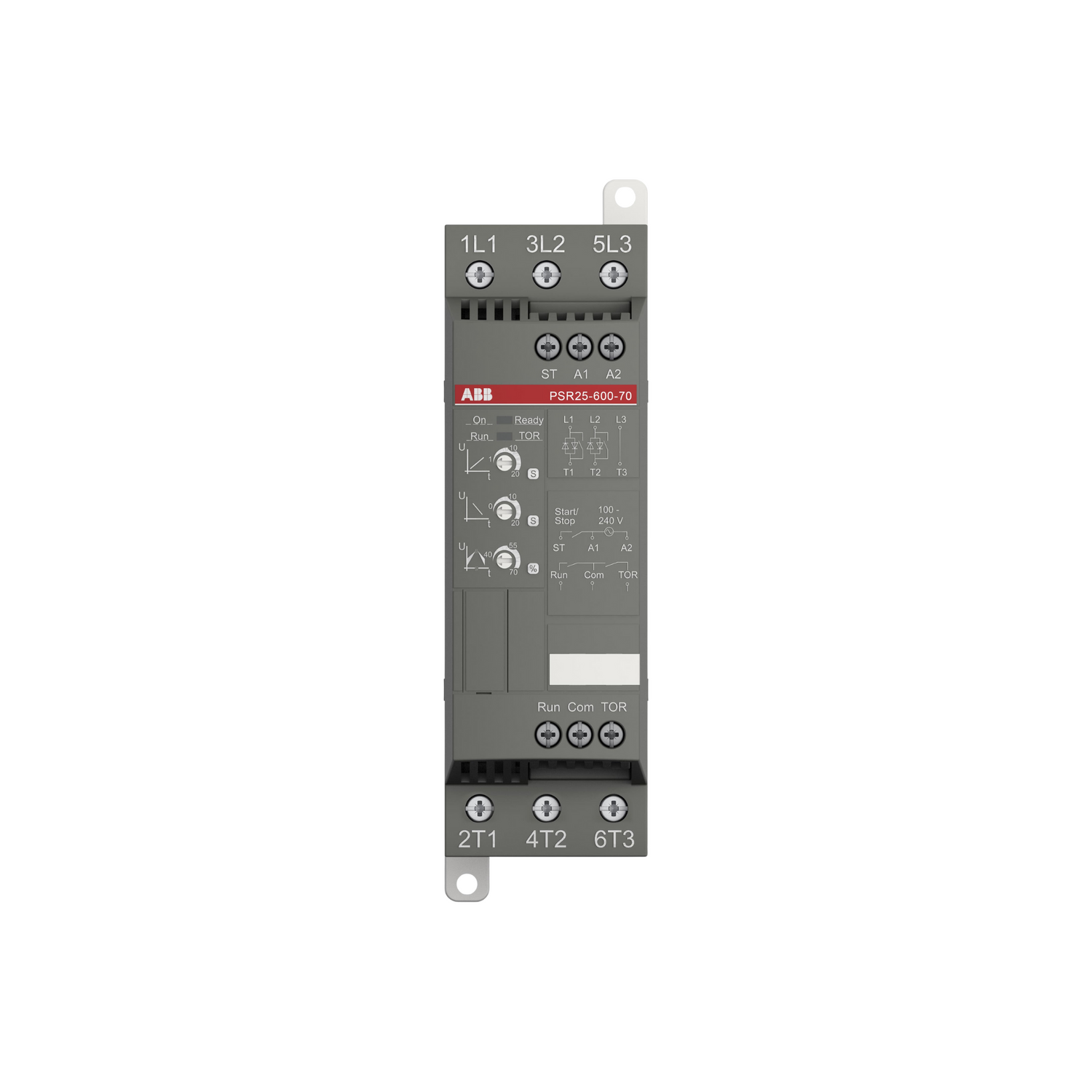

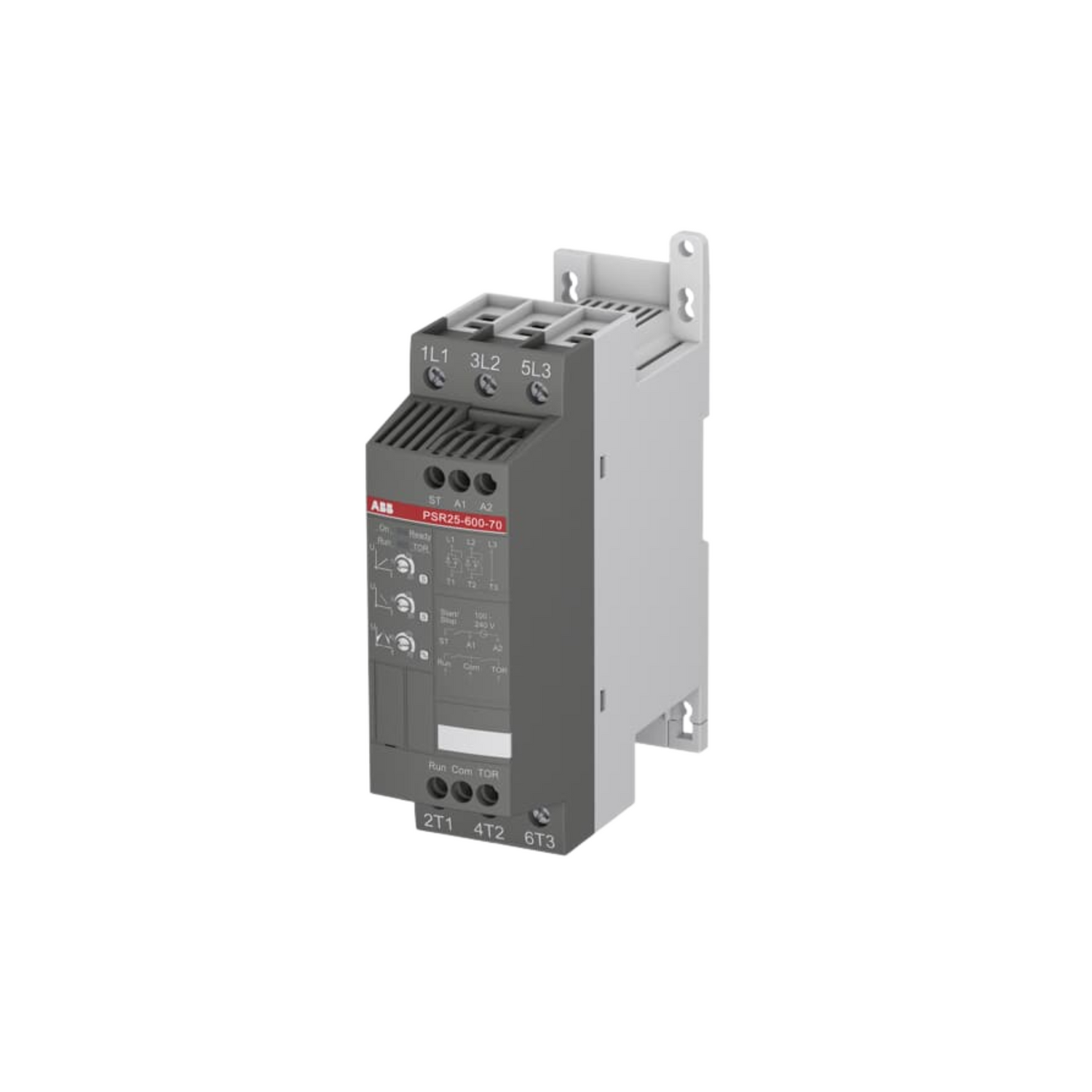

ABB PSR25-600-70 100-240 V 25 A Soft Starter

The soft starter PSR25-600-70 has a rated maximum operational current of 25 A with an operating voltage span from 208-600 V AC. The rated control voltage is between 100-240 V AC at 50/60 Hz. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN and a TOR signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact soft starters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3-105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: PSR25-600-70
Product Type: Soft Starter
Voltage Rating: 100-240 V
Frequency Rating: 50/60 Hz
Current Rating: 25 A
Terminal Type: Screw Terminals
Dimensions: 5.03" x 6.29" x 1.77"
Weight: 1.3 lb.
