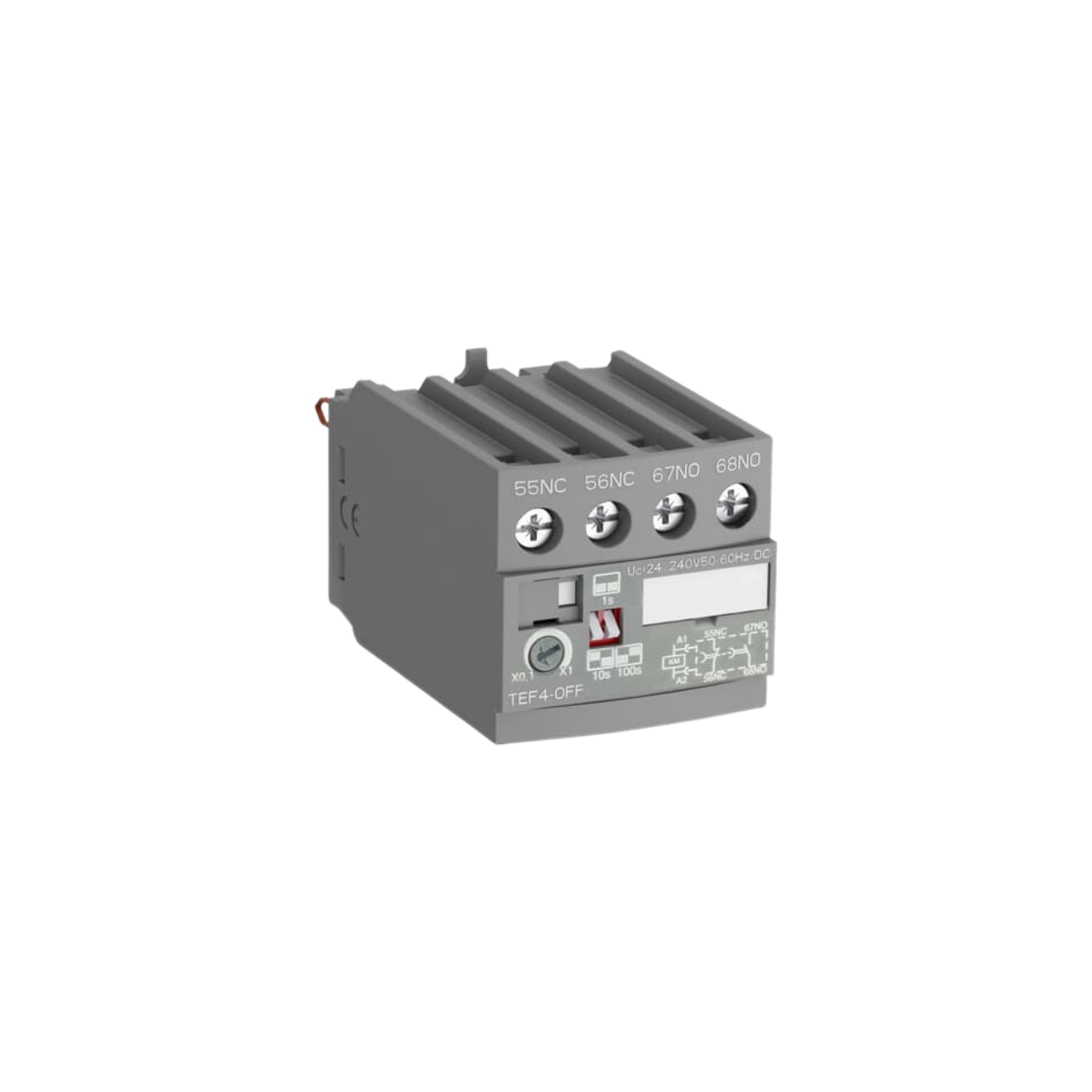

ABB TEF4-OFF Frontal Electronic Timer

TEF4-OFF is a frontal electronic timer used to realize the timing function and allow a compact solution in the cabinet compared to separate timers. TEF4 electronic timers are front-mounted and locked on AF, AFC contactors or NF, NFC contactor relays. A mechanical indicator allows to show the state of the contactor. TEF4 electronic timers are supplied by a direct plug-in parallel connection to the coil terminals A1 - A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in protection against surges in the contactor coil. The TEF4 is available for a wide control voltage range 24...240 V AC/DC. TEF4 allow time-delayed functions up to 100 s in 3 distinct time ranges, independently of the control system. The time delay ranges are selected by a switch and the time delay can be adjusted by means of a rotary switch. The timing function of TEF4-OFF is activated by opening the device on which the timer is mounted. The OFF-delay version operates without additional control supply.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: TEF4-OFF
Product Type: Frontal Electronic Timer
Voltage Rating: 24 V DC / 240 V AC
Frequency Rating: 50/60 Hz
No. of Pole: 2
Contacts Configurating: 1 Normally Open, 1 Normally Closed
Dimensions: 1.69" x 2.66" x 1.63"
Weight: 0.14 lb.
