Allanson  |  SKU: 1092-F

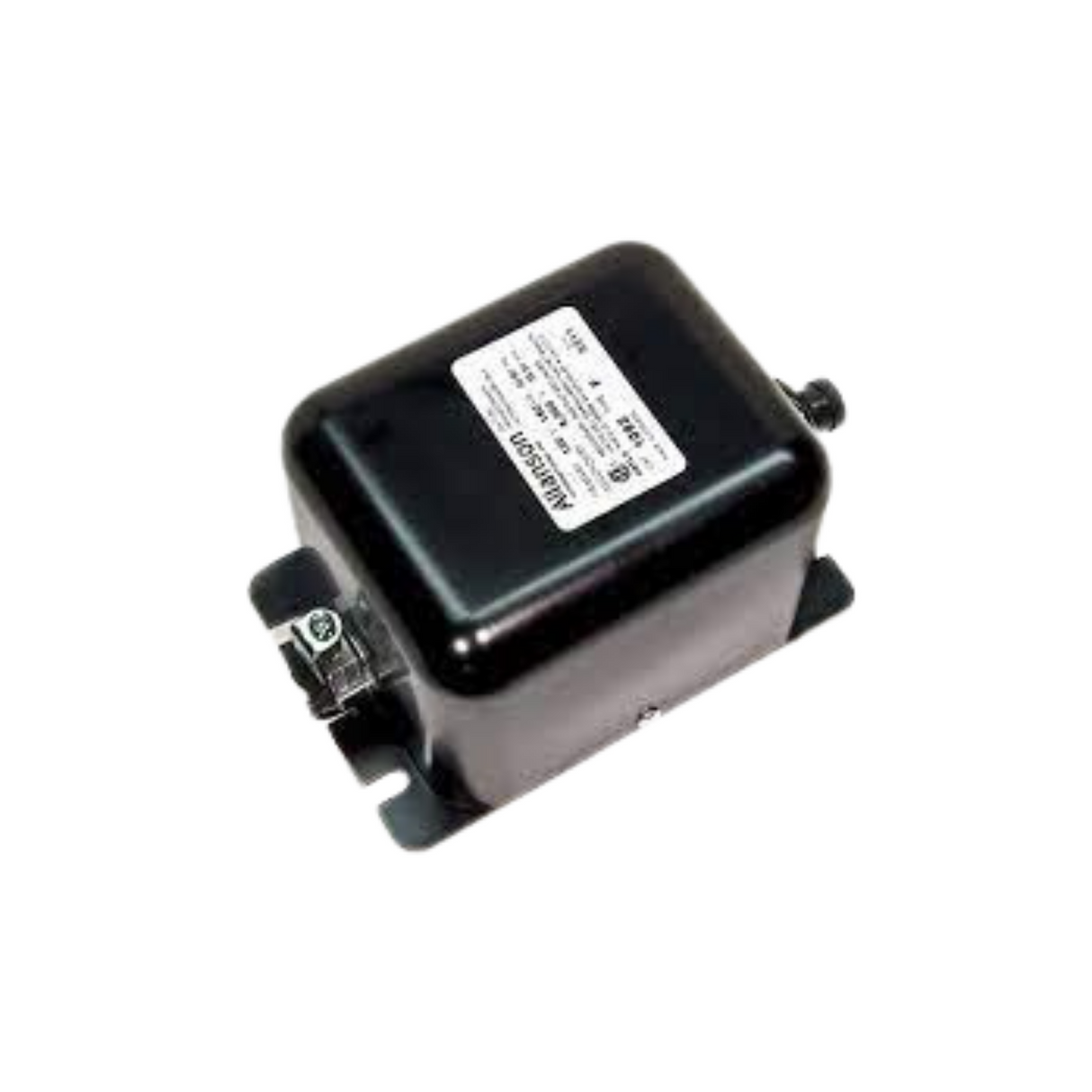

Allanson 1092-F Gas Burner Ignition Transformer

$145.74

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

The 1092-F is a single-phase ignition transformer that operates at 120V input, 6000V secondary voltage, and 50/60 Hz frequency. It has a -30 to 40°C operating range, 90% operating relative humidity, and a 1/16" to 1/8" loading air gap. UL-recognized and CSA-certified.

Features:

Designed with high temperature wire
Runs cooler, quieter and safer on all types of burners
Designed to burner manufacturerÆs specifications
Meets American and European noise emission standards offering superior EMI and RFI protection
Single porcelain designs

Specifications:

Manufacturer: Allanson
Manufacturer Part Number: 1092-F
Input Supply Voltage (V): 120
Input Supply Frequency (Hz): 50/60
Primary Voltage - Amperes (VA): 250/180
Secondary Voltage (RMS): 6000
Secondary Short Circuit Current (mA): 25/20
Storage Temperature: -40°C to +80°C (-40°F to 176°F)
Operating Temperature: -30°C to +40°C (-22°F to 104°F)
Operating Relative Humidity (%): 90
Loading Air Gap (inches): 1/16 - 1/8
