Allanson Transformers 1092-SG Primary Voltage 120 V, Secondary Voltage 6000 @ 150 V Ferromagnetic Ignition Transformer
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Allanson Transformers 1092-SG Primary Voltage 120 V, Secondary Volt...

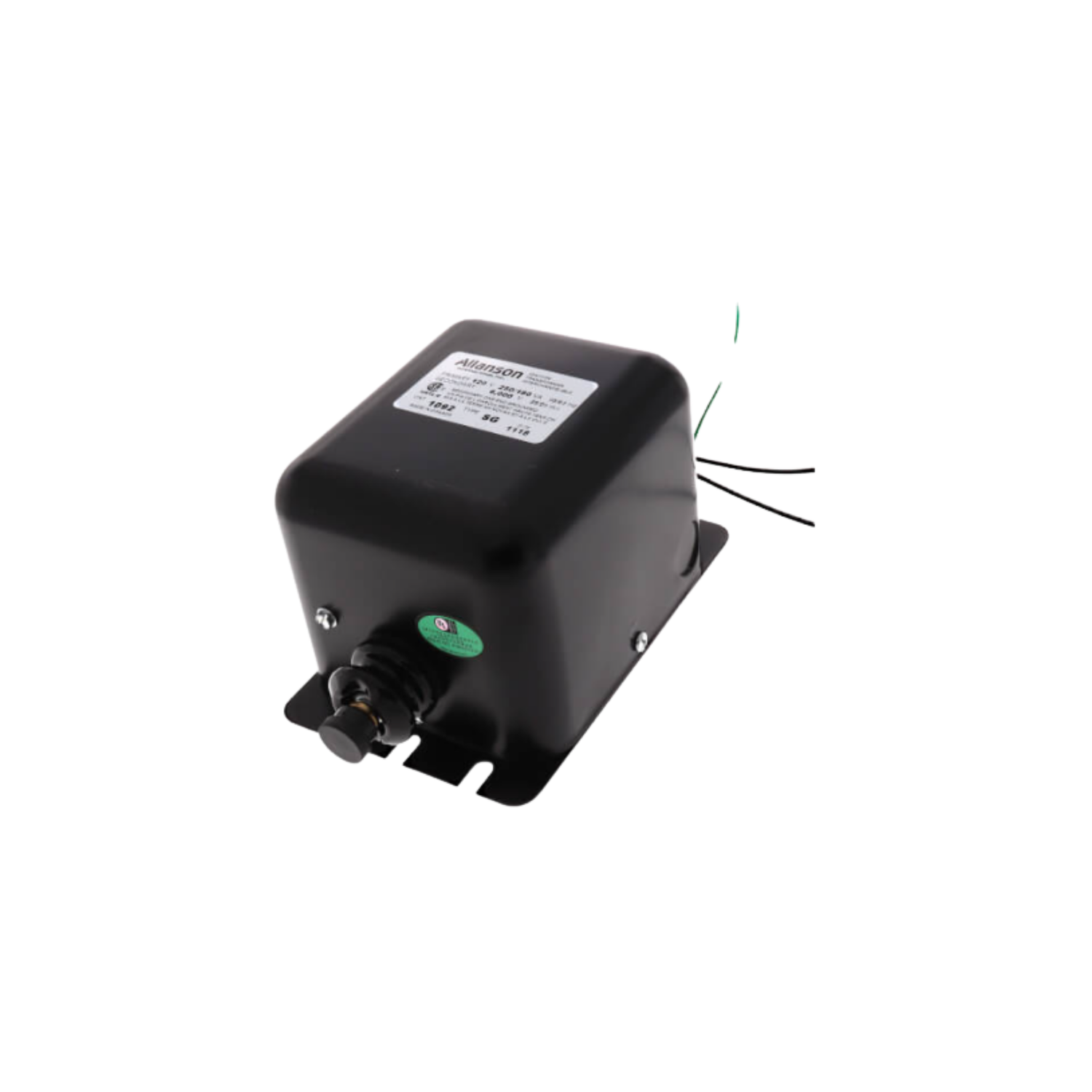

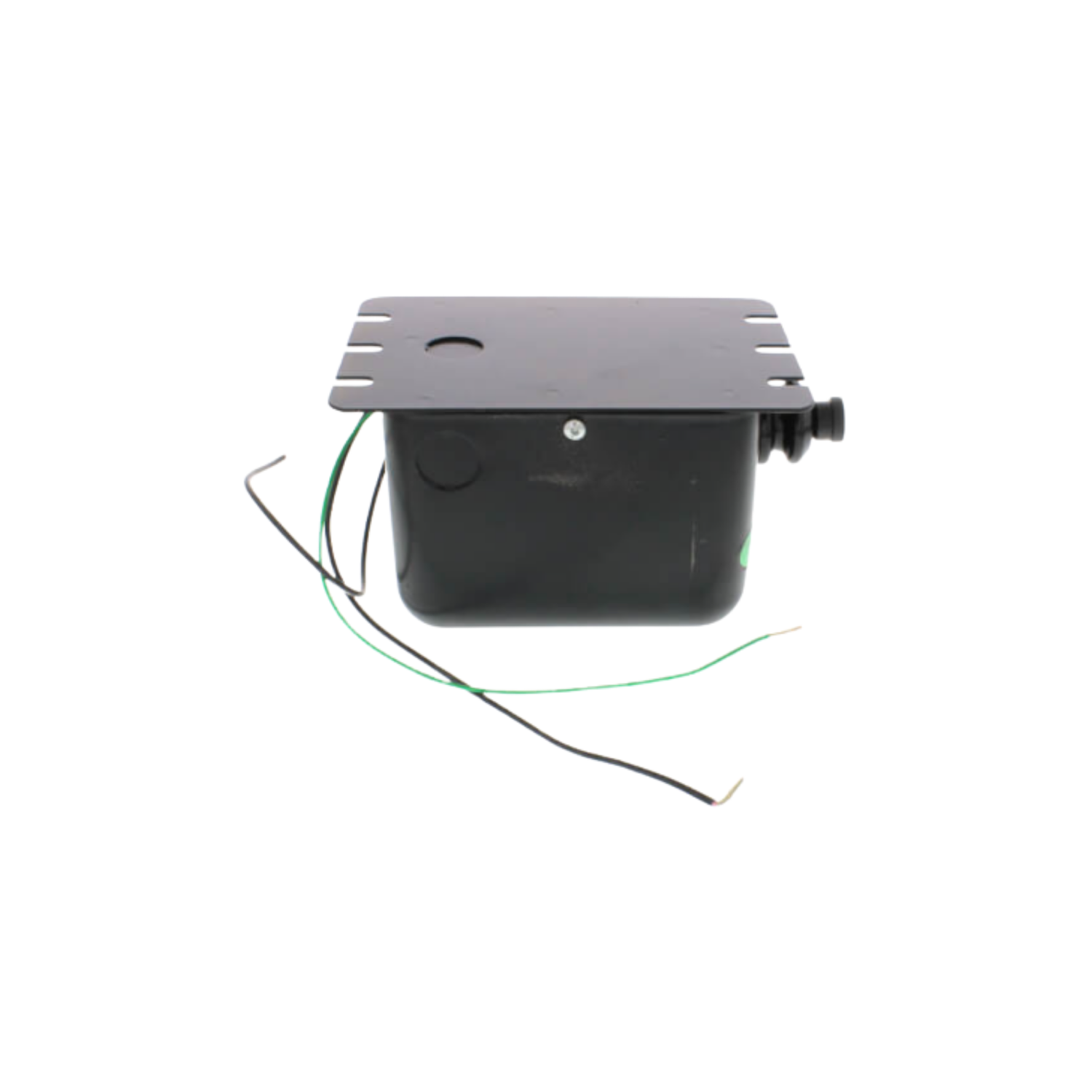

The Allanson 1092-SG Ferromagnetic Ignition Transformer is a high-voltage, single-pole transformer used for the reliable ignition of Webster Engineering burners in constant-duty commercial, residential, and industrial gas applications. The "-SG" suffix designates that this model includes a ground wire on the primary terminal.
Specifications:
Manufacturer: Allanson Transformers
Manufacturer Part Number: 1092-SG
Product Type: Ferromagnetic Ignition Transformer
Primary Voltage: 120 V
Secondary Voltage: 6000 @ 150 V
Frequency Rating: 50/60 Hz
Current Rating: 25/20 mA
Ground: One End Ground
Hv Terminal: Thumb Screw
Application: Webster Engineering Burners
Weight: 9.58 lb.
