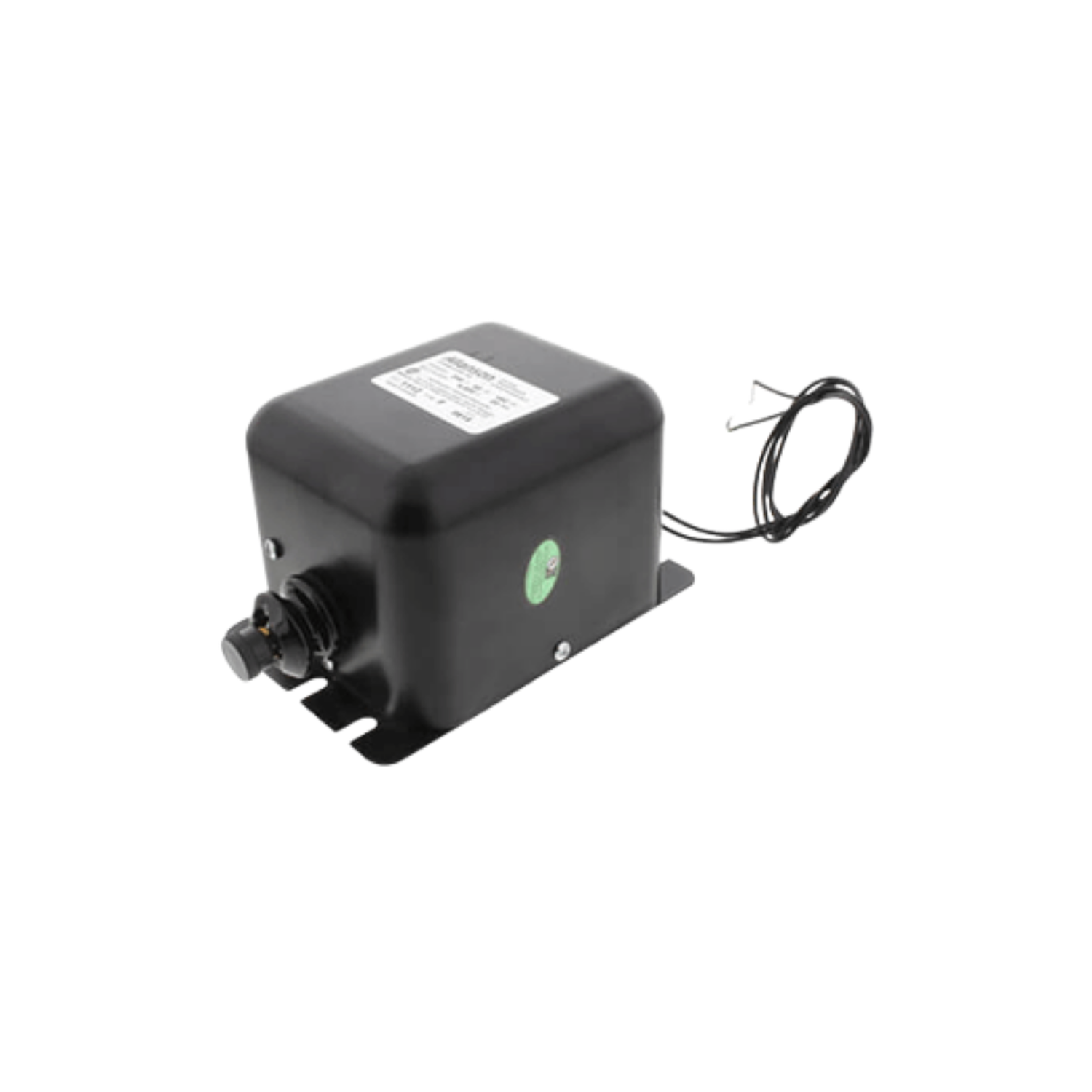

Allanson Transformers 1112-F Primary Voltage 240 V, Secondary Voltage 6000 V @ 150 V Ferromagnetic Ignition Transformer

The Allanson Transformers 1112-F is a single-pole, ferromagnetic ignition transformer primarily used for commercial, residential, and industrial gas applications. It is a 240V version of the 1092-F transformer and is designed for constant duty, providing a reliable ignition source.

Features:

Designed with high temperature wire
Runs cooler, quieter and safer on all types of burners.
Designed to burner manufacturer's specifications
Meets American and European noise emission standards offering superior EMI and RFI protection.
Single porcelain designs
Dependable Power

Specifications:

Manufacturer: Allanson Transformers
Manufacturer Part Number: 1112-F
Product Type: Ferromagnetic Ignition Transformer
Primary Voltage: 240 V
Secondary Voltage: 6000 V @ 150 V
Frequency Rating: 60 Hz
Current Rating: 23 mA
Poles: Single
Ground: One End Ground
Hv Terminal: Thumb Screw
Application: Gas burner ignition
Weight: 10.21 lb.
