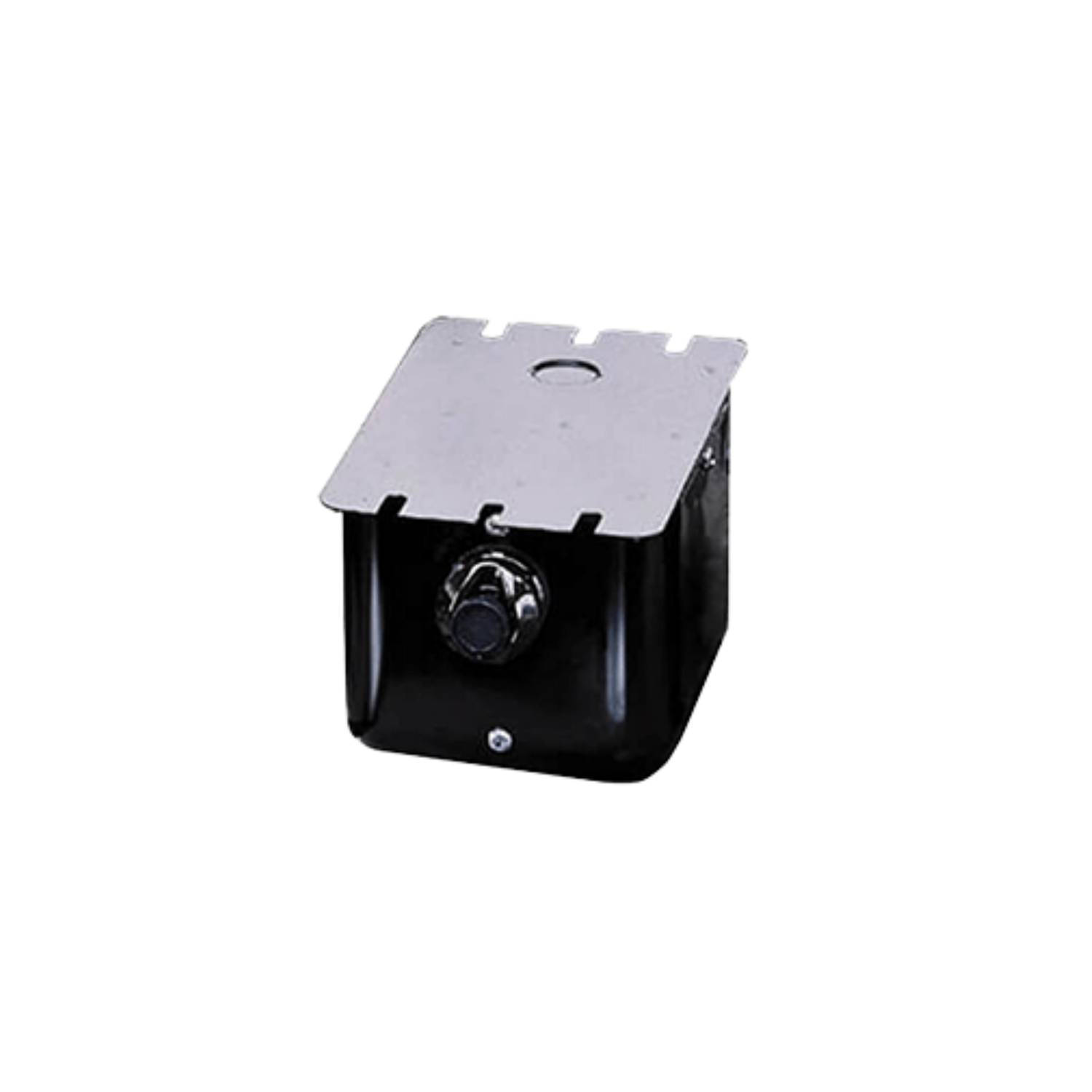

Allanson Transformers 1196-NA Primary Voltage 240 V, Secondary Voltage 6000 V @ 150 VA Ferromagnetic Ignition Transformer

The Allanson Transformers 1196-NA is a ferromagnetic ignition transformer, also known as a burner transformer, used for industrial gas and oil burners. The "NA" designation indicates it is compatible with North American burner systems. It is designed for constant-duty use and provides a reliable ignition source for commercial and industrial gas applications.

Features:

Designed with high temperature wire
Runs cooler, quieter and safer on all types of burners.
Designed to burner manufacturer's specifications
Meets American and European noise emission standards offering superior EMI and RFI protection.
Single porcelain designs
Dependable Power

Specifications:

Manufacturer: Allanson Transformers
Manufacturer Part Number: 1196-NA
Product Type: Ferromagnetic Ignition Transformer
Primary Voltage: 240 V
Secondary Voltage: 6000 V @ 150 VA
Frequency Rating: 50 Hz
Current Rating: 20 mA
Poles: Single
Ground: One End Ground
Hv Terminal: Rajah Connector
Application: Industrial gas and oil burners
Weight: 9.54 lb.
