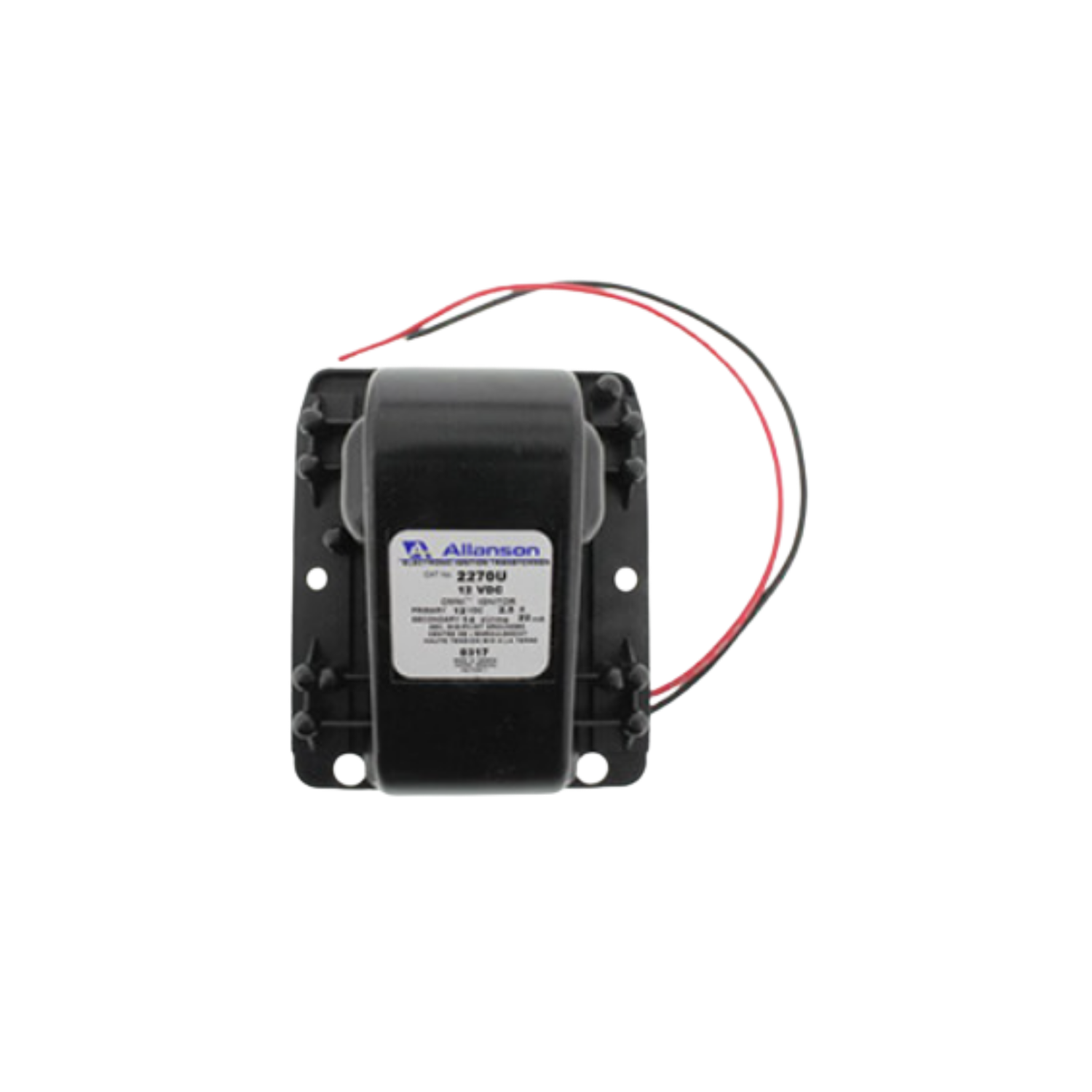

Allanson Transformers 2270-U Primary Voltage 12 V DC, Secondary Voltage 17500V AC (peak) @ 150 V Universal Electronic Ignitor

The Allanson 2270-U OMNI Universal Electronic Ignitor is a compact, high-voltage, solid-state ignition component for constant-duty oil burners in commercial, residential, and industrial heating applications. Its universal mounting design allows it to replace ignitors from many manufacturers, including Beckett, Wayne, and Carlin.

Features:

Eliminates need for other mounting plates helping to minimize inventory requirements
History of excellent operation under brownout conditions
Quick & easy to change
Energy efficient
Low operating temperature
Ships complete with required hardware
Meets American and European noise emission standards offering superior EMI and RFI protection
Storage Temperature: -40°C to 80°C
Operating Temperature: -30°C to 40°C
Operating Relative Humidity: 90%
Loading Air Gap: 1/16" – 3/16"

Specifications:

Manufacturer: Allanson Transformers
Manufacturer Part Number: 2270-U
Product Type: Universal Electronic Ignitor
Primary Voltage: 12 V DC
Secondary Voltage: 17500V AC (peak) @ 150 V
Frequency Rating: 50/60 Hz
Current Rating: 20 mA
Poles: Double
Ground: Mid Point Ground
Hv Terminal: Large Spring Contact
Application: Universal replacement for oil burner ignitors on various makes and models.
Dimensions 4.06" x 4.92" x 2.91"
Weight: 1.28 lb.
