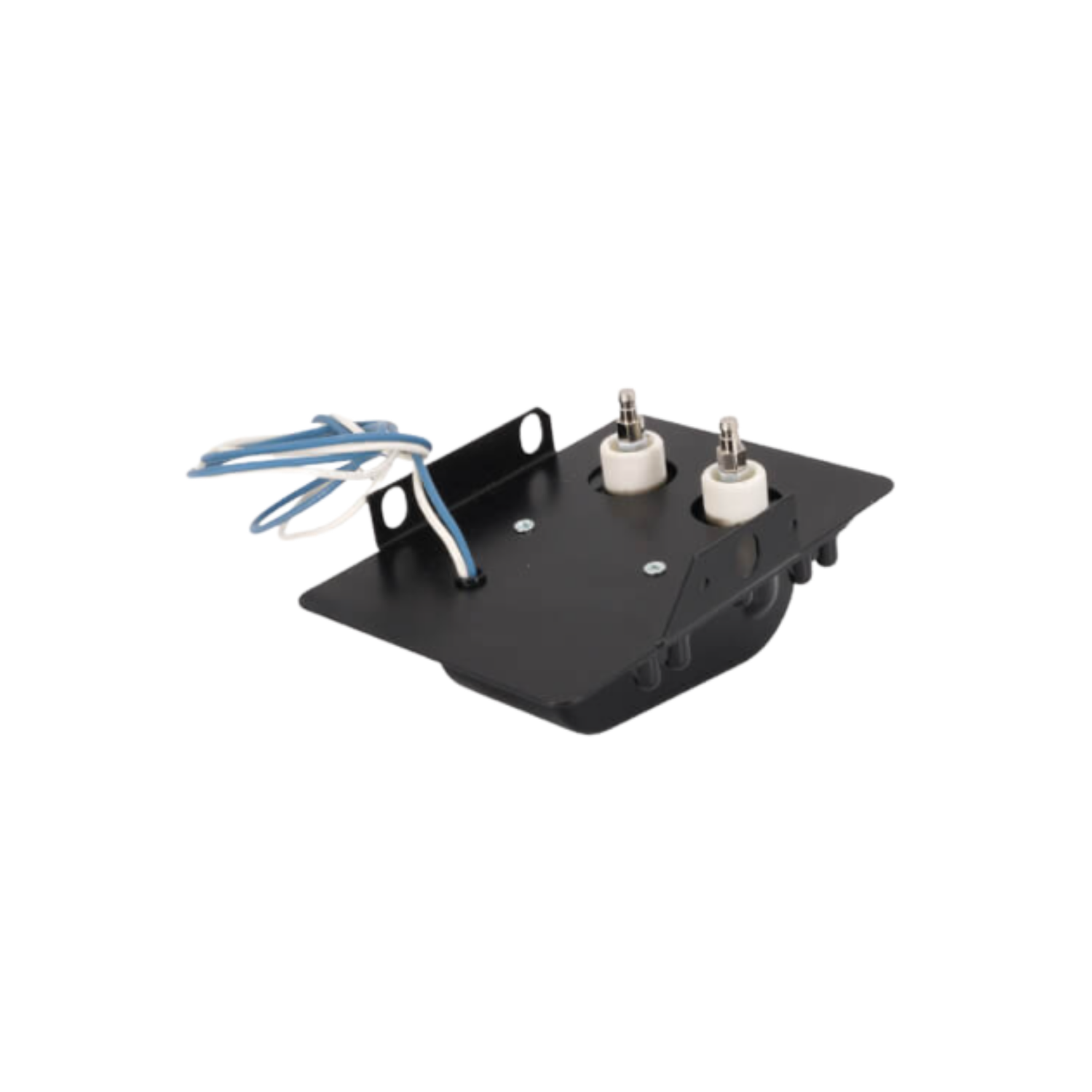

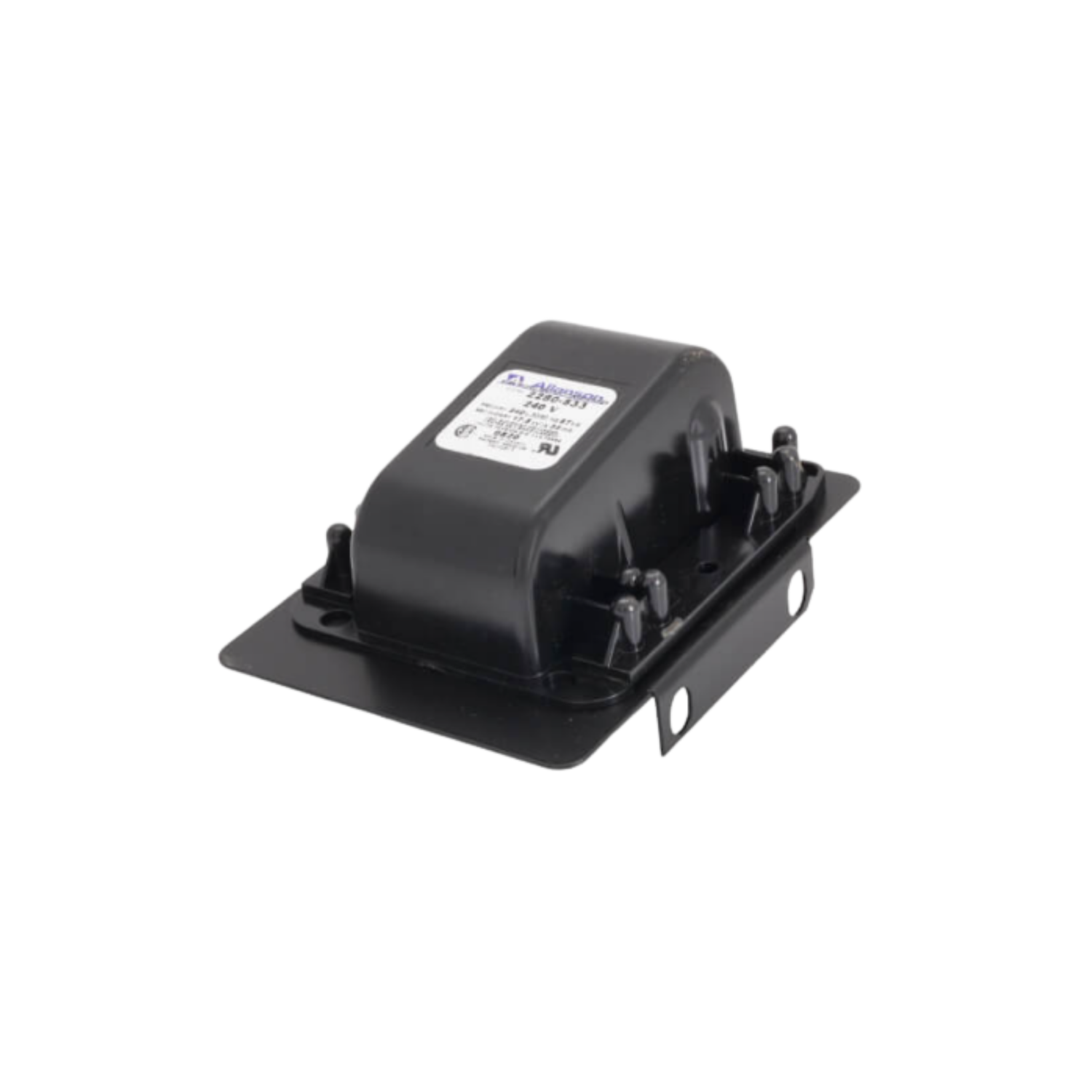

Allanson Transformers 2280-633 Primary Voltage 240 V, Secondary Voltage 17500V AC (peak) @ 150 V Electronic Ignitor

The Allanson 2280-633 Electronic Ignitor is a high-voltage, solid-state ignition component designed for constant-duty oil burners in commercial, residential, and industrial applications. It is specifically engineered to be compatible with Carlin 601-801 burners. Unlike traditional ferromagnetic transformers, this ignitor uses an advanced solid-state design, making it significantly lighter and more efficient.

Features:

Eliminates need for other mounting plates helping to minimize inventory requirements
History of excellent operation under brownout conditions
Quick & easy to change
Energy efficient
Low operating temperature
Ships complete with required hardware
Meets American and European noise emission standards offering superior EMI and RFI protection
Storage Temperature: -40°C to 80°C
Operating Temperature: -30°C to 40°C
Operating Relative Humidity: 90%
Loading Air Gap: 1/16″ – 3/16″
Dimensions 4.06″ x 4.92″ x 2.91″

Specifications:

Manufacturer: Allanson Transformers
Manufacturer Part Number: 2280-633
Product Type: Electronic Ignitor
Primary Voltage: 240 V
Secondary Voltage: 17500V AC (peak) @ 150 V
Frequency Rating: 50/60 Hz
Current Rating: 45 mA
Pole: Double
Ground: Mid Point Ground
Hv Terminal: Rajah Connector
Hinge Location: Side Bracket Mounting
Application: Carlin 601-801 Oil Burners
Weight: 8.14 lb.
