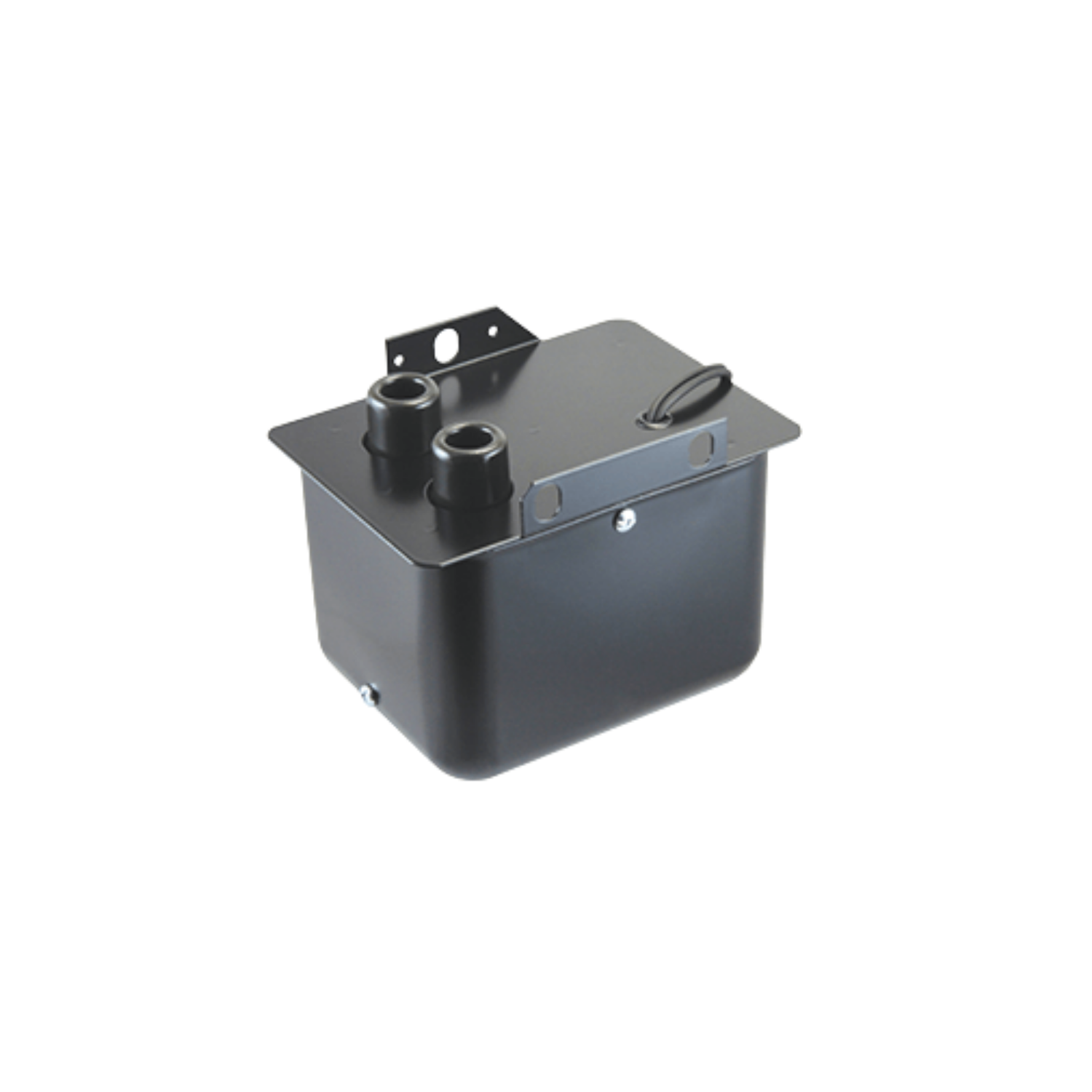

Allanson Transformers 2714-633 Primary Voltage 120 V, Secondary Voltage 12000 V @ 150 V Ferromagnetic Ignition Transformer

The Allanson Transformers 2714-633 is a ferromagnetic, double-pole ignition transformer designed specifically for Carlin burners, including models like the Carlin 501 and 1150. This constant-duty transformer provides a reliable ignition source for commercial, residential, and industrial oil burner applications.

Features:

Designed with high temperature wire
Runs cooler, quieter and safer on all types of burners.
Designed to burner manufacturer's specifications
Meets American and European noise emission standards offering superior EMI and RFI protection.
Single porcelain designs
Dependable Power

Specifications:

Manufacturer: Allanson Transformers
Manufacturer Part Number: 2714-633
Product Type: Ferromagnetic Ignition Transformer
Primary Voltage: 120 V
Secondary Voltage: 12000 V @ 150 V
Frequency Rating: 60 Hz
Current Rating: 20 mA
Poles: Double
Ground: Mid Point Ground
Hv Terminal: Rajah Connector
Application: Oil burner ignition, specifically for Carlin burners
Weight: 11.77 lb.
